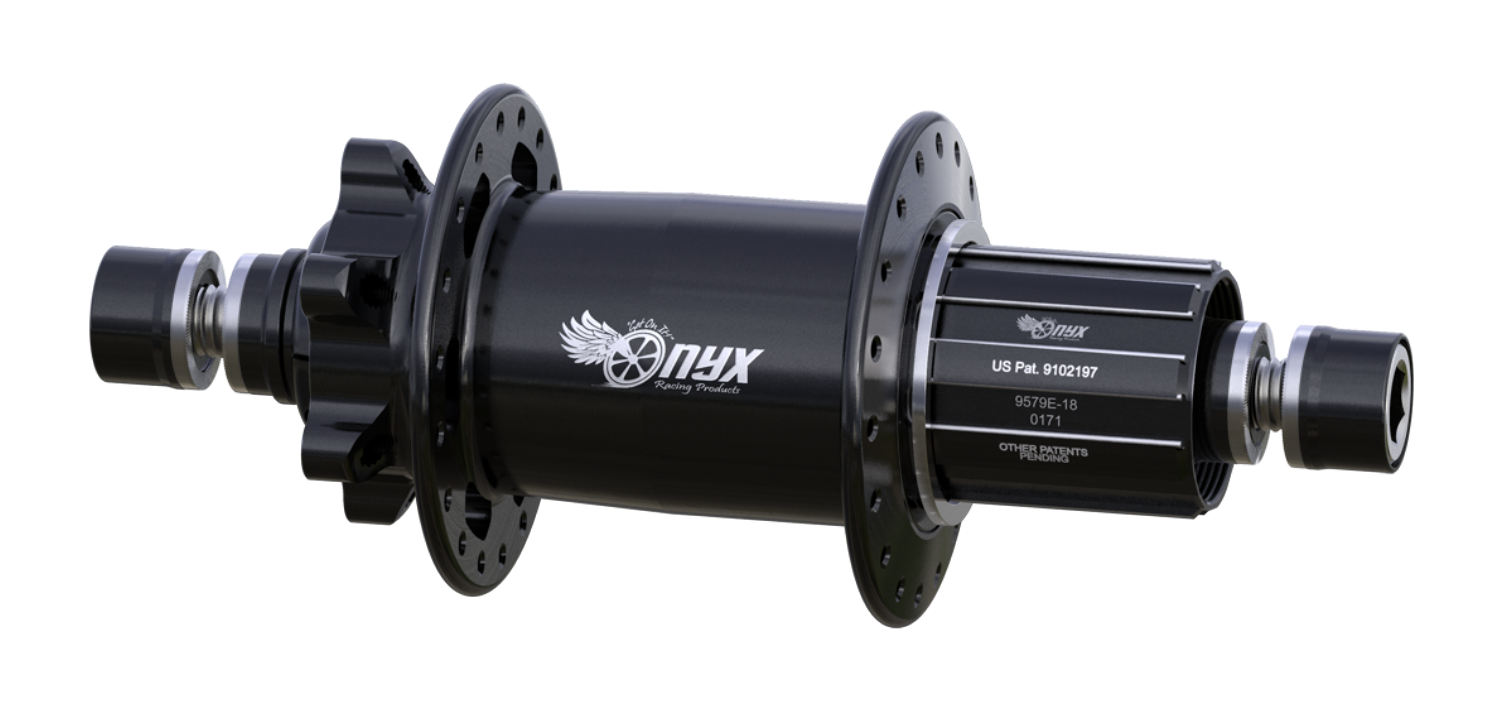

Onyx MTB BOOST ISO HG-141/10mm Bolt-on Rear Hub, 36

SKU: 098497-36
$525.00
Excl. tax

A - Hub Center To Flange Center, Non-Drive Side (mm): 35.7
B - Hub Center To Flange Center, Drive Side (mm): 22.9
C - Axle Width (mm): 141
Spoke Hole Circle Diameter, Drive Side (mm): 60.0
Spoke Hole Circle Diameter, Non-Drive Side (mm): 60.0

The rating of this product is 0 out of 5

(0)
On backorder
A - Hub Center To Flange Center, Non-Drive Side (mm): 35.7
B - Hub Center To Flange Center, Drive Side (mm): 22.9
C - Axle Width (mm): 141
Spoke Hole Circle Diameter, Drive Side (mm): 60.0
Spoke Hole Circle Diameter, Non-Drive Side (mm): 60.0
Spoke Hole Counts Available: 36

Specs
Weight: 19.9 oz / 564 g
Dimensions - Approximate for Shipping: 9.5 × 4.5 × 4 in
Hub Type: Rear
Hub Spacing: Boost
Axle Width - mm: 141
Axle Diameter - mm: 10
Spoke Count: 36
Attach Style: Bolt-on
Hub Shell Style: Solid
Bolts: Titanium
Disc Brake Rotor Mount: ISO 6-Bolt Flange

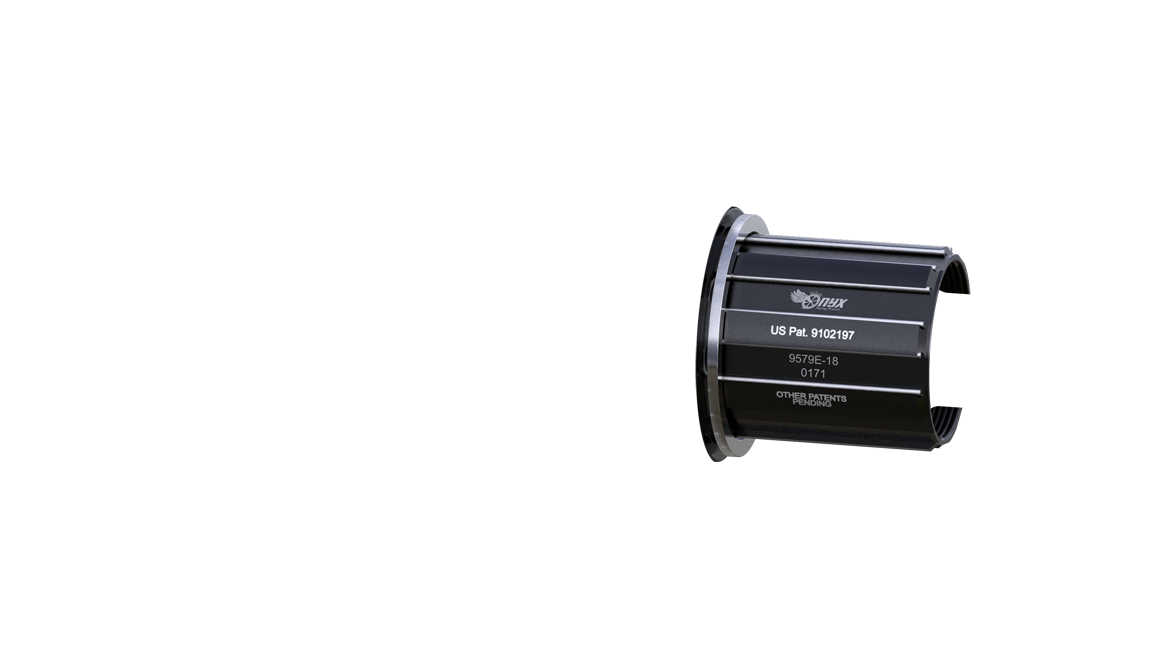

Driver Style: Shimano Hyperglide
Spoke Tension - Max kgf: 120
Product Line: Classic
