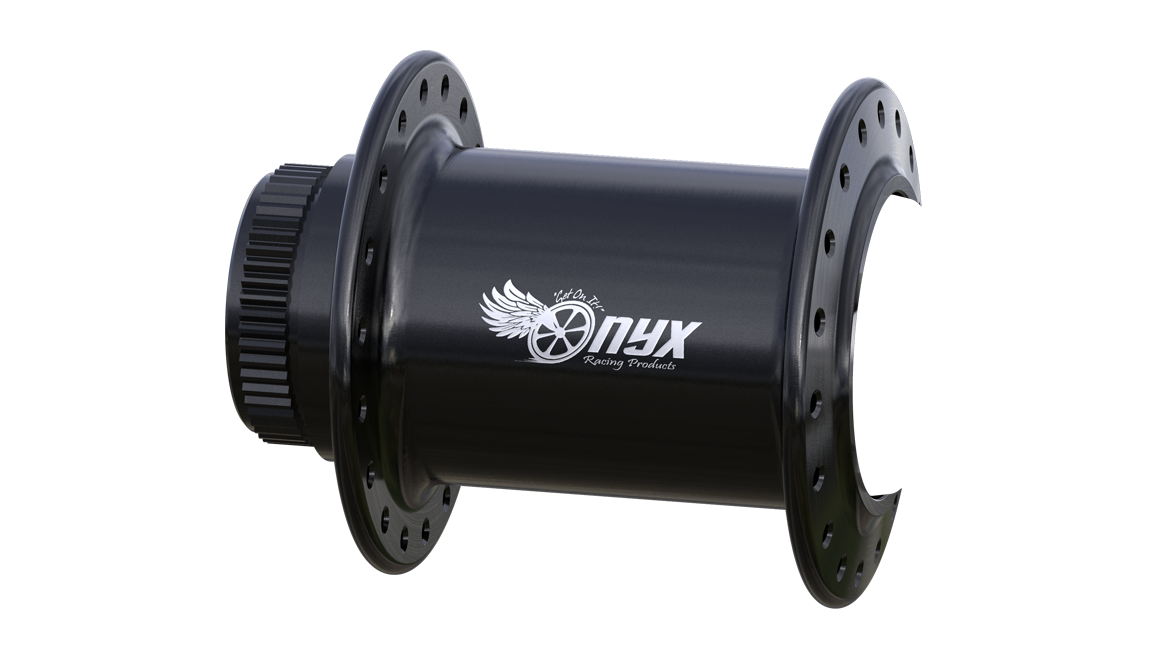

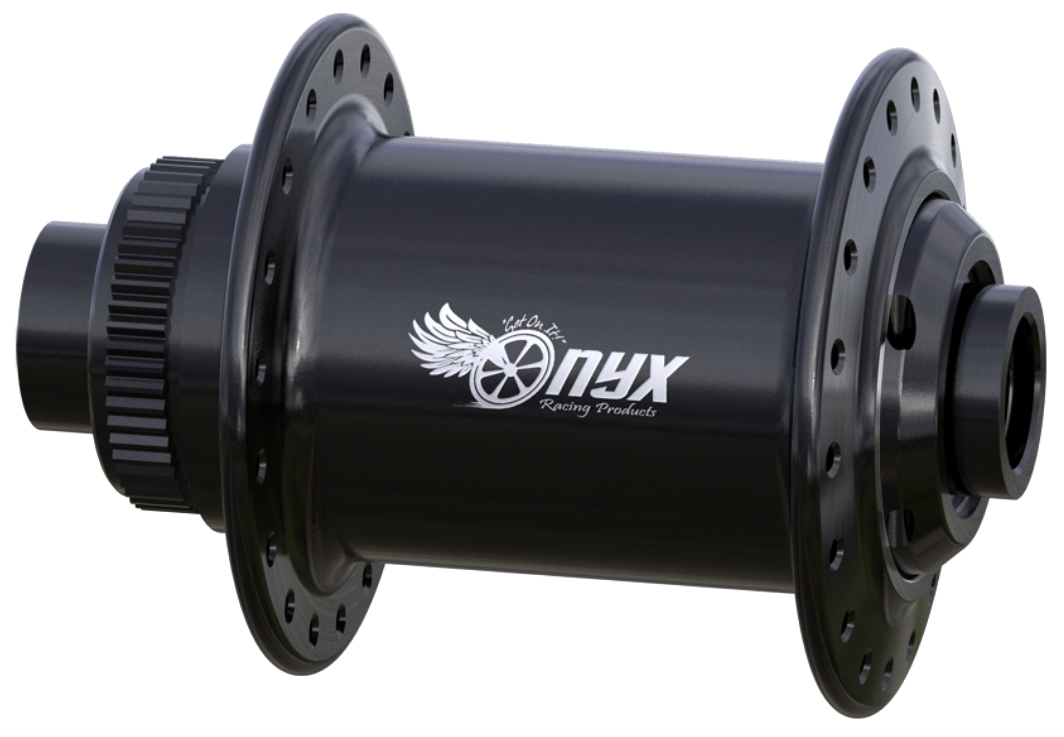

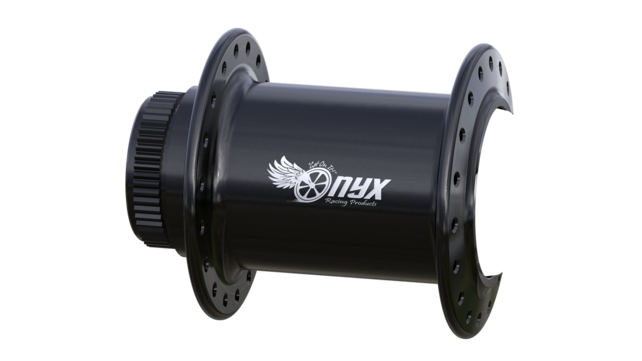

Onyx MTB CL-100/15mm Thru-bolt Front Hub, 28

SKU: 086716-32
$230.00
Excl. tax

A - Hub Center To Flange Center, Non-Drive Side (mm): 21.2
B - Hub Center To Flange Center, Drive Side (mm): 35.6
C - Axle Width (mm): 100
Spoke Hole Circle Diameter, Drive Side (mm): 57
Spoke Hole Circle Diameter, Non-Drive Side (mm): 57

The rating of this product is 0 out of 5

 (0)
On backorder
Add to wish list Add to wish list
swap-horizontal Add to compare
SKU: 086716
SKU: 086716

A - Hub Center To Flange Center, Non-Drive Side (mm): 21.2
B - Hub Center To Flange Center, Drive Side (mm): 35.6
C - Axle Width (mm): 100
Spoke Hole Circle Diameter, Drive Side (mm): 57
Spoke Hole Circle Diameter, Non-Drive Side (mm): 57
Spoke Hole Counts Available: 28

Specs
Weight: 7.6 oz / 215 g
Dimensions - Approximate for Shipping: 9.5 × 4.5 × 4 in
Hub Type: Front
Axle Width - mm: 100
Axle Diameter - mm: 15
Spoke Count: 28
Attach Style: Thru-bolt
Hub Shell Style: Solid
Disc Brake Rotor Mount: Shimano Center Lock
Spoke Tension - Max kgf: 120
Product Line: Classic
