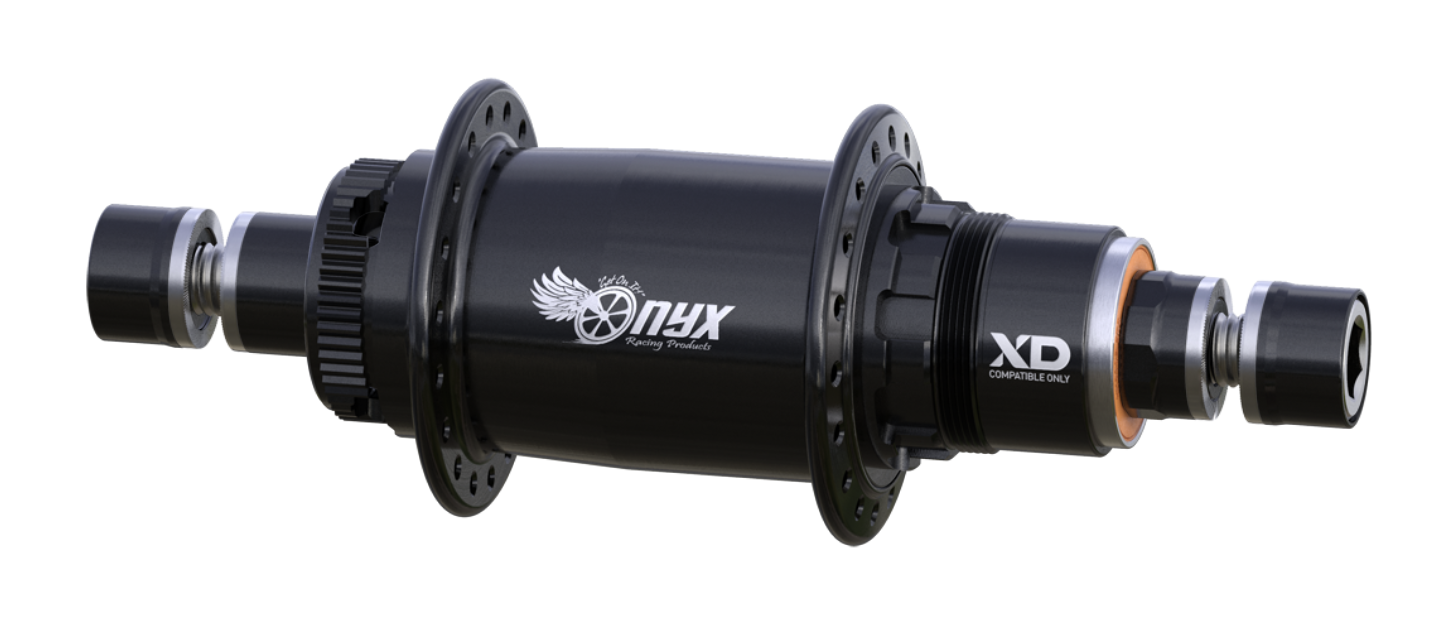

Onyx MTB CL XD-135/10mm Bolt-on Rear Hub, 24

SKU: 086081-24
$525.00
Excl. tax

A - Hub Center To Flange Center, Non-Drive Side (mm): 33.9
B - Hub Center To Flange Center, Drive Side (mm): 19.92
C - Axle Width (mm): 135
Spoke Hole Circle Diameter, Drive Side (mm): 50
Spoke Hole Circle Diameter, Non-Drive Side (mm): 50

The rating of this product is 0 out of 5

(0)
On backorder

SKU: 086081

SKU: 086081
A - Hub Center To Flange Center, Non-Drive Side (mm): 33.9
B - Hub Center To Flange Center, Drive Side (mm): 19.92
C - Axle Width (mm): 135
Spoke Hole Circle Diameter, Drive Side (mm): 50
Spoke Hole Circle Diameter, Non-Drive Side (mm): 50
Spoke Hole Counts Available: 24

Specs
Weight: 18.4 oz / 522 g
Dimensions - Approximate for Shipping: 9.5 × 4.5 × 4 in
Hub Type: Rear
Axle Width - mm: 135
Axle Diameter - mm: 10
Spoke Count: 24
Attach Style: Bolt-on
Hub Shell Style: Solid
Bolts: Titanium
Disc Brake Rotor Mount: Shimano Center Lock

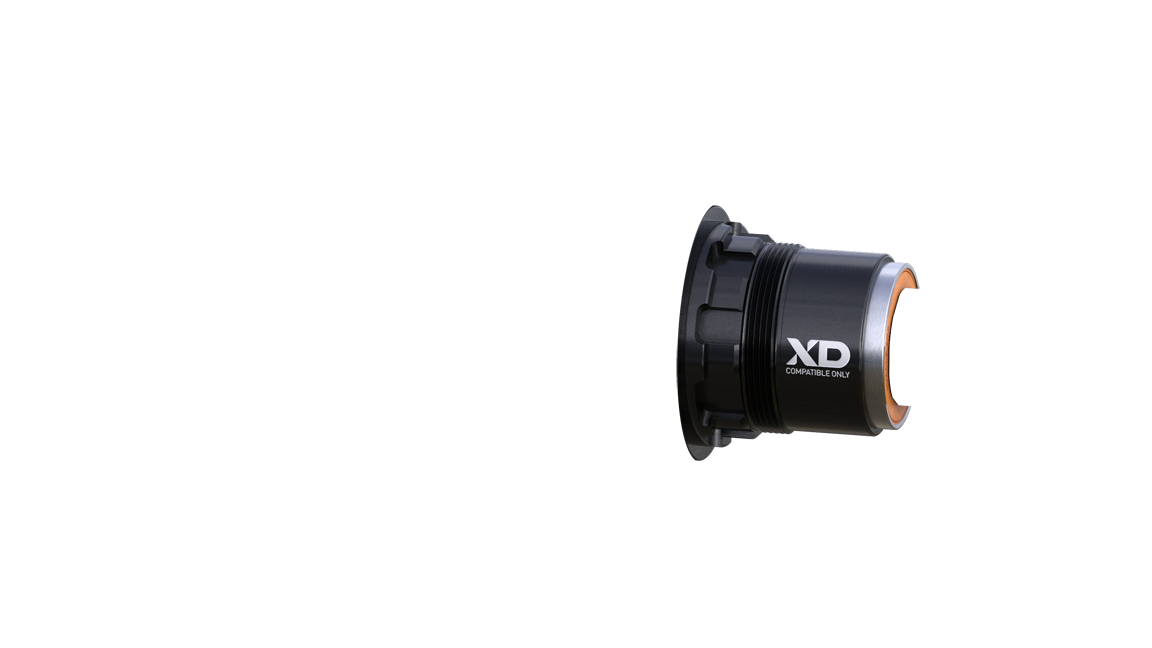

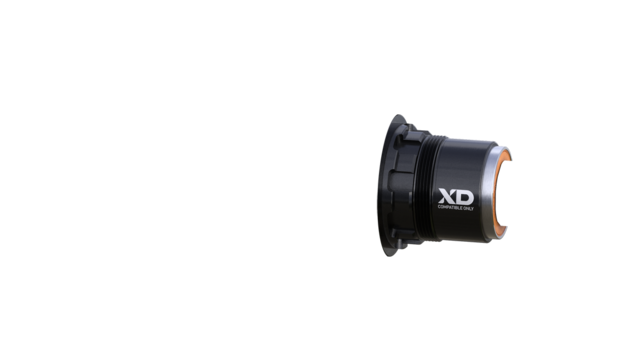

Driver Style: SRAM XD
Spoke Tension - Max kgf: 120
Product Line: Classic
