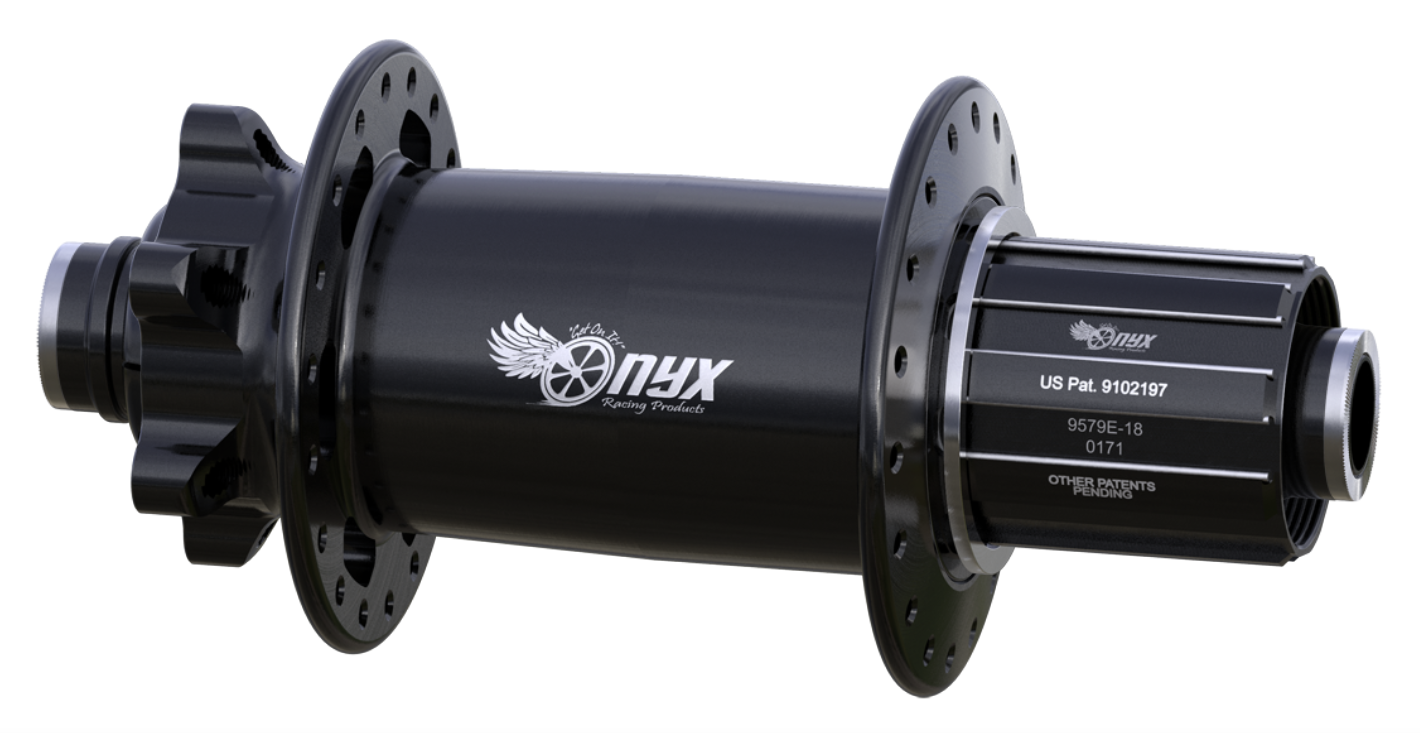

Onyx MTB ISO HG-150/12mm Thru-bolt Rear Hub, 36

SKU: 041135-36
$500.00
Excl. tax

A - Hub Center To Flange Center, Non-Drive Side (mm): 38.35
B - Hub Center To Flange Center, Drive Side (mm): 27.42
C - Axle Width (mm): 150
Spoke Hole Circle Diameter, Drive Side (mm): 60
Spoke Hole Circle Diameter, Non-Drive Side (mm): 60

The rating of this product is 0 out of 5

(0)
On backorder

SKU: 041135

SKU: 041135
A - Hub Center To Flange Center, Non-Drive Side (mm): 38.35
B - Hub Center To Flange Center, Drive Side (mm): 27.42
C - Axle Width (mm): 150
Spoke Hole Circle Diameter, Drive Side (mm): 60
Spoke Hole Circle Diameter, Non-Drive Side (mm): 60
Spoke Hole Counts Available: 36

Specs
Weight: 17.6 oz / 499 g
Dimensions - Approximate for Shipping: 9.5 × 4.5 × 4 in
Hub Type: Rear
Axle Width - mm: 150
Axle Diameter - mm: 12
Spoke Count: 36
Attach Style: Thru-bolt
Hub Shell Style: Solid
Disc Brake Rotor Mount: ISO 6-Bolt Flange

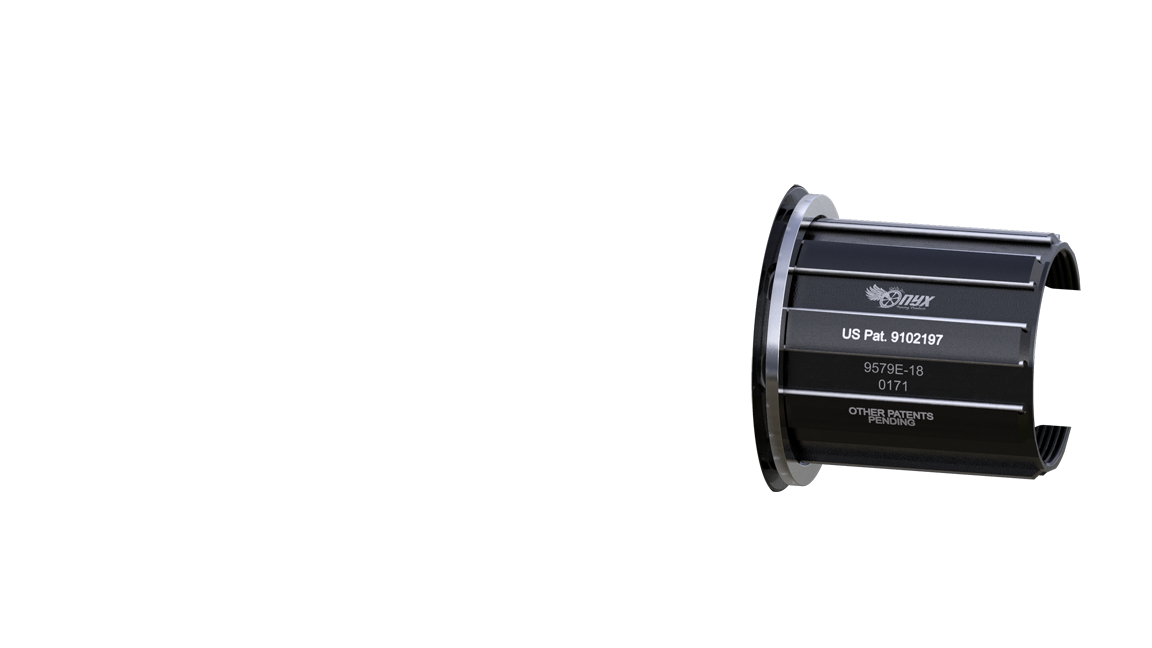

Driver Style: Shimano Hyperglide
Spoke Tension - Max kgf: 120
Product Line: Classic
