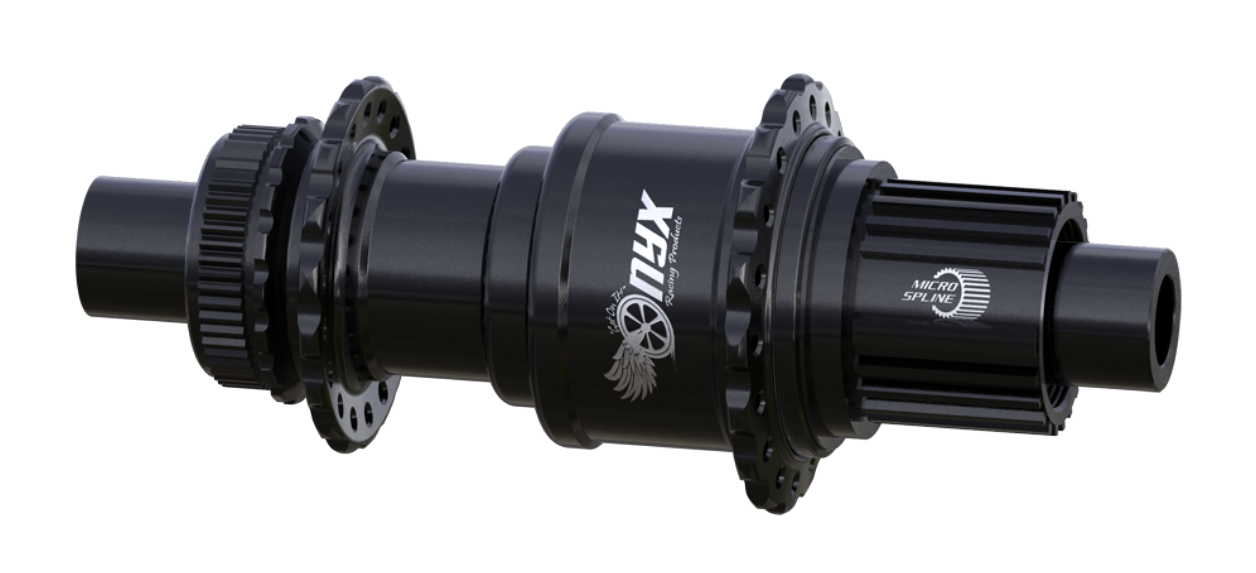

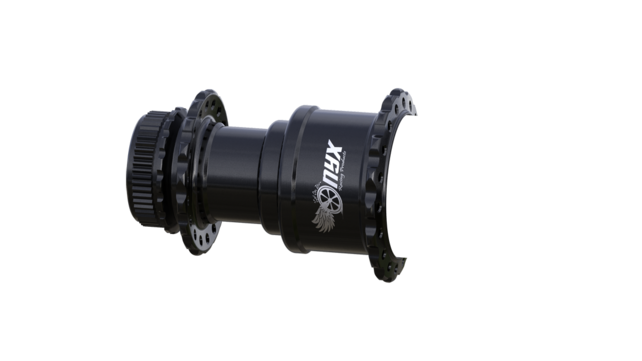

Onyx Vesper MTB BOOST CL MS 148/12 Thru-bolt Rear Hub, 28

SKU: 102702-28
$485.00
Excl. tax

A - Hub Center To Flange Center, Non-Drive Side (mm): 36.9
B - Hub Center To Flange Center, Drive Side (mm): 22.47
C - Axle Width (mm): 148
Spoke Hole Circle Diameter, Drive Side (mm): 50.0
Spoke Hole Circle Diameter, Non-Drive Side (mm): 42.0

The rating of this product is 0 out of 5

(0)
On backorder
A - Hub Center To Flange Center, Non-Drive Side (mm): 36.9
B - Hub Center To Flange Center, Drive Side (mm): 22.47
C - Axle Width (mm): 148
Spoke Hole Circle Diameter, Drive Side (mm): 50.0
Spoke Hole Circle Diameter, Non-Drive Side (mm): 42.0
Spoke Hole Counts Available: 28

Specs
Weight: 13.3 oz / 377 g
Dimensions - Approximate for Shipping: 9.5 × 4.5 × 4 in
Hub Type: Rear
Axle Width - mm: 148
Axle Diameter - mm: 12
Spoke Count: 28
Attach Style: Thru-bolt
Hub Shell Style: Solid
Disc Brake Rotor Mount: Shimano Center Lock
Driver Style: Shimano MICRO SPLINE
Spoke Tension - Max kgf: 120
Product Line: Vesper
