  • Onyx Onyx Vesper MTB CL MS 135/12 Thru-bolt Rear Hub, 24
  • Onyx Onyx Vesper MTB CL MS 135/12 Thru-bolt Rear Hub, 24

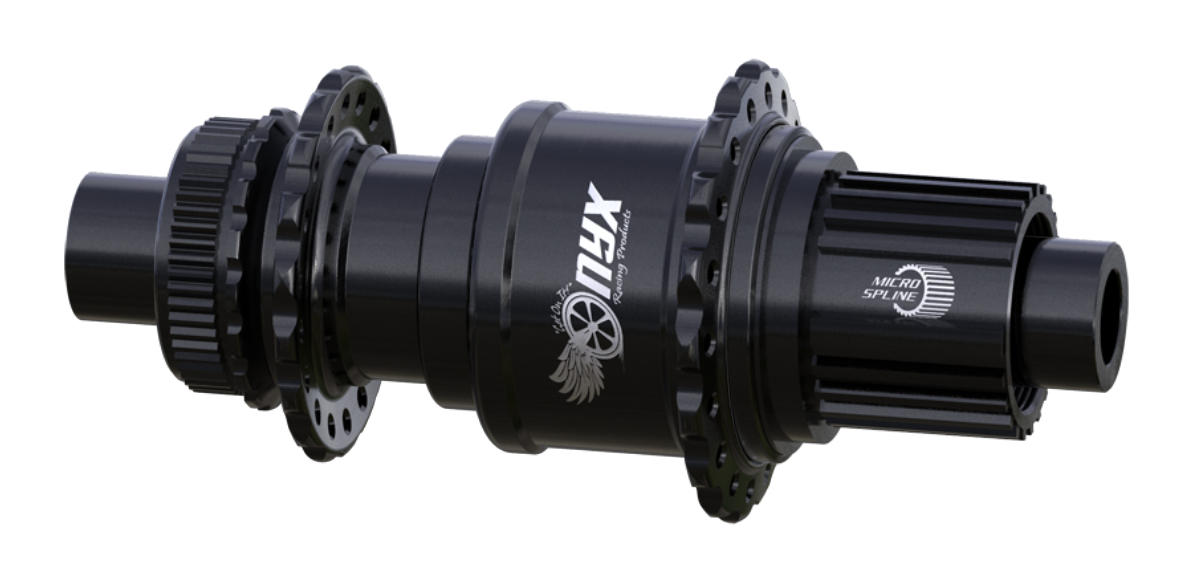

Onyx Vesper MTB CL MS 135/12 Thru-bolt Rear Hub, 24

SKU: 102690-24
$485.00
Excl. tax

A - Hub Center To Flange Center, Non-Drive Side (mm): 33.9
B - Hub Center To Flange Center, Drive Side (mm): 19.47
C - Axle Width (mm): 135
Spoke Hole Circle Diameter, Drive Side (mm): 50.0
Spoke Hole Circle Diameter, Non-Drive Side (mm): 42.0

The rating of this product is 0 out of 5

(0)
On backorder
A - Hub Center To Flange Center, Non-Drive Side (mm): 33.9
B - Hub Center To Flange Center, Drive Side (mm): 19.47
C - Axle Width (mm): 135
Spoke Hole Circle Diameter, Drive Side (mm): 50.0
Spoke Hole Circle Diameter, Non-Drive Side (mm): 42.0
Spoke Hole Counts Available: 24

Specs
Weight: 13.1 oz / 371 g
Dimensions - Approximate for Shipping: 9.5 × 4.5 × 4 in
Hub Type: Rear
Axle Width - mm: 135
Axle Diameter - mm: 12
Spoke Count: 24
Attach Style: Thru-bolt
Hub Shell Style: Solid
Disc Brake Rotor Mount: Shimano Center Lock
Driver Style: Shimano MICRO SPLINE
Spoke Tension - Max kgf: 120
Product Line: Vesper
