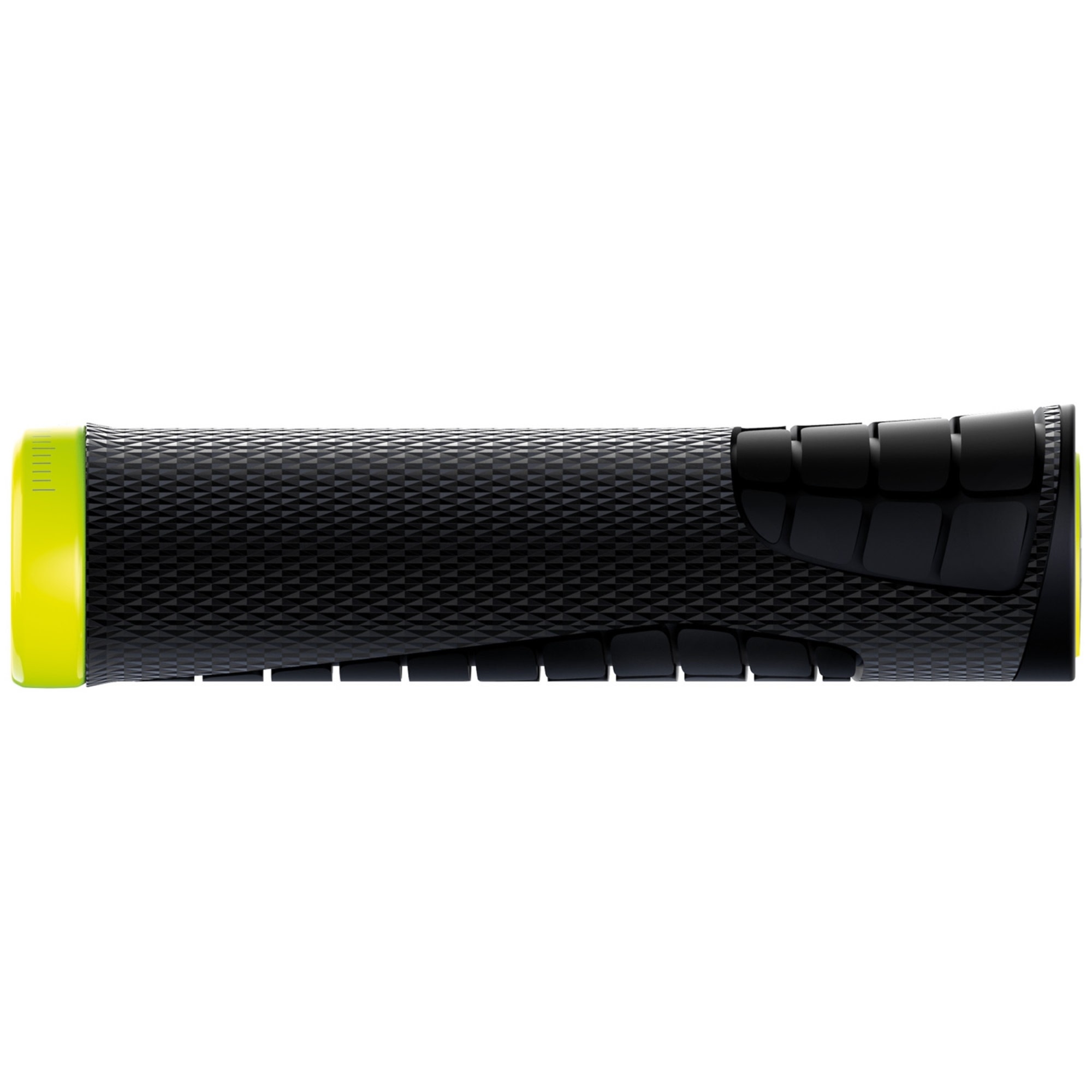

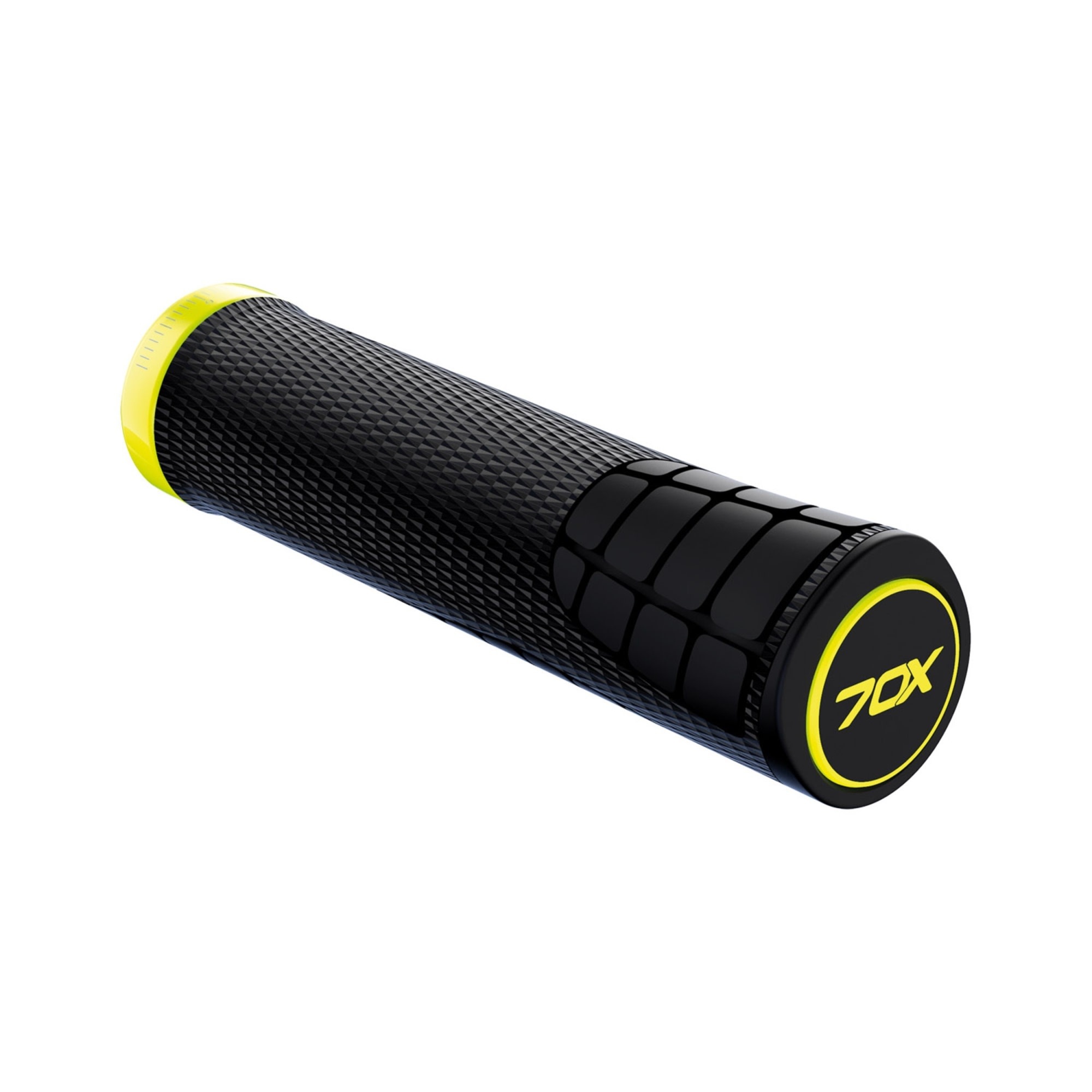

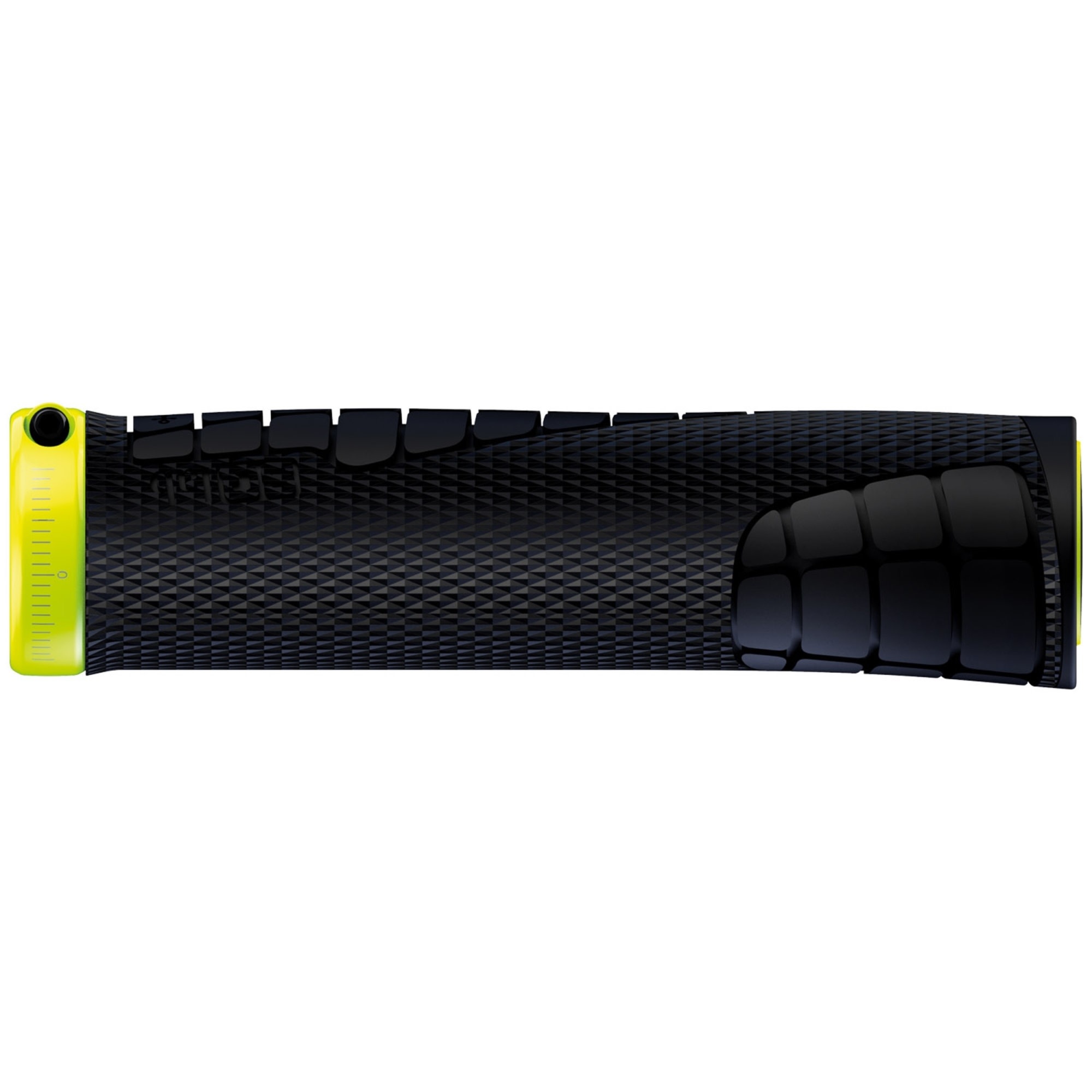

SQLab Grip 7OX yellow clamp

The 70x grip offers the perfect handle ergonomics for experts. The gravity and downhill grip offers maximum control and grip in rough terrain, even in wet and muddy conditions. The scope of delivery includes one set of grips. The special textured zone of the front and bottom side provides optimal support for the fingers in any situation. The exterior side ensures the needed comfort. The clamp moved from the outside to the inside in the course of the product development and is now only at the first (inner) third. This increases the shock absorption and comfort on the hand’s outer side. Various rubber compounds ensure a perfect grip level and high comfort. We only use the best possible materials. This guarantees you a long service life and no sticking of the grip rubber. The personal grip size is what matters. With the 7OX grip, the sizes differ in diameter and shape.

Technical specifications

ARTICLE NUMBER(S): 2349 / 2350

AREA OF USE/BICYCLE TYPE: MTB GRAVITY & E-PERFORMANCE

MATERIAL: SHOCK ABSORPTION COMPOUND

SIZE(S): S / M

CIRCUMFERENCE IN MM (1/3 OF TOTAL LENGTH): 98 / 103

LENGTH IN MM (LEFT / RIGHT): 134,8

CLAMP DIAMETER HANDLEBAR IN MM: 22,2

MATERIAL CLAMPING RINGS: ALUMINIUM

MAXIMUM TORQUE IN NM: 3

E-BIKE READY: YES

DIN / ASTM CATEGORIES: 2

70X

Gripsize Measurement

The personal grip size is important.

Grip size is the measurement from the tip of the middle finger to the crook of the thumb.

In the new SQlab grip series, sizes differ in range, length (only the 702, 710) and shape.







round = no grip

angular / two dimensional = perfect grip

Secure grip

Angular and two-dimensional. Handlebars are round, and grips are also mostly round because it is simple. But fingers are anything but round: They easily slip on a round object and cannot hold on unlike, for instance, a flat table corner.

Like a tool in a hand

Only with a perfect fit do you have everything under control and can control the bike.

Ergobar

The Ergobar is a wave-shaped profile on the front and right side, which produces a flat, slightly angular grip bottom.

A perfect fit for angular, bent fingers.

The slightly wavy shape of the Ergobars maps the different finger lengths of the hand.



Sizes & Weights

Modell	Size	Length (total in mm)	Range (measured at 1/3 of the total range)	Weight (in g pair)
SQlab 7OX	S	134,8	96,8	132
SQlab 7OX	M	134,8	101,4	155
