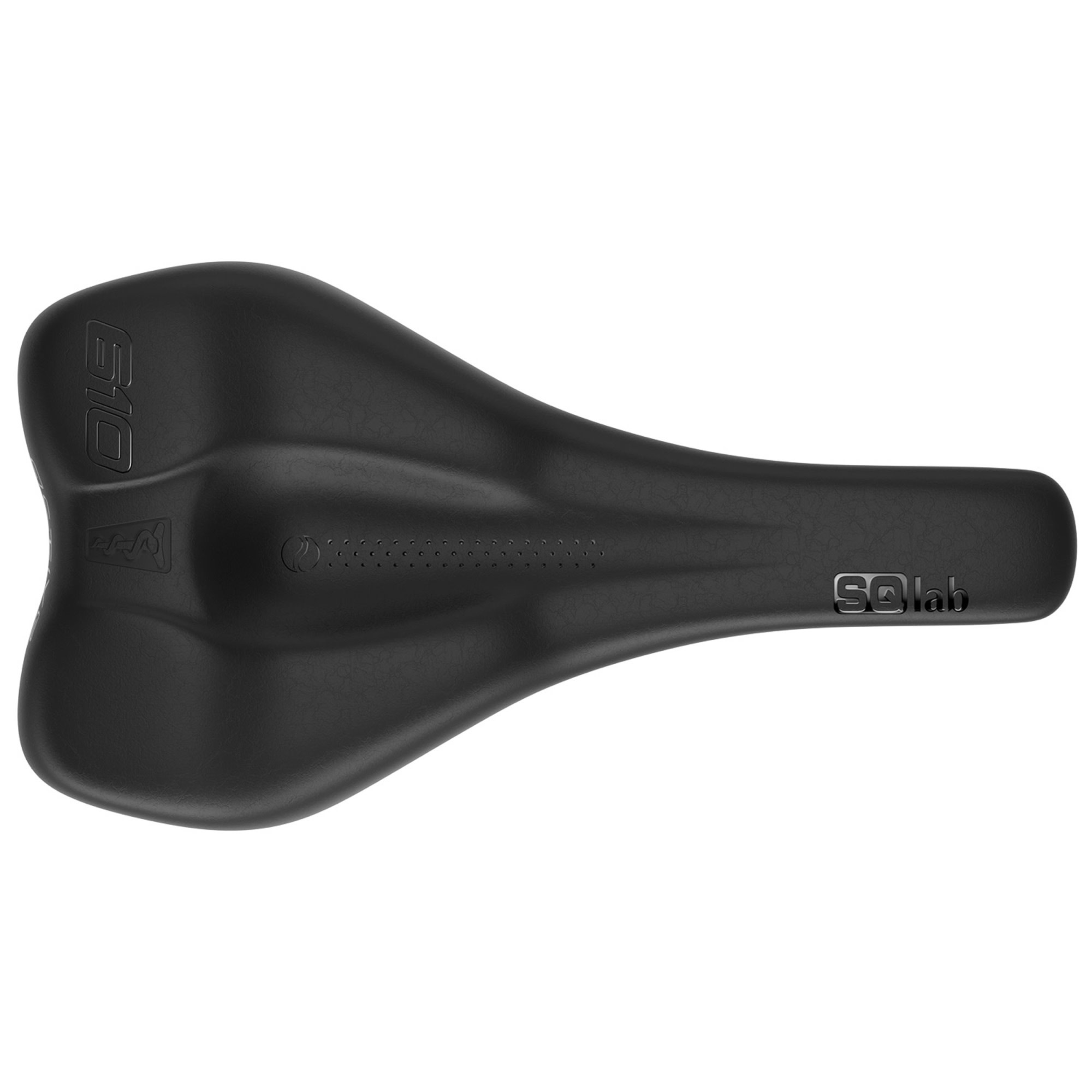

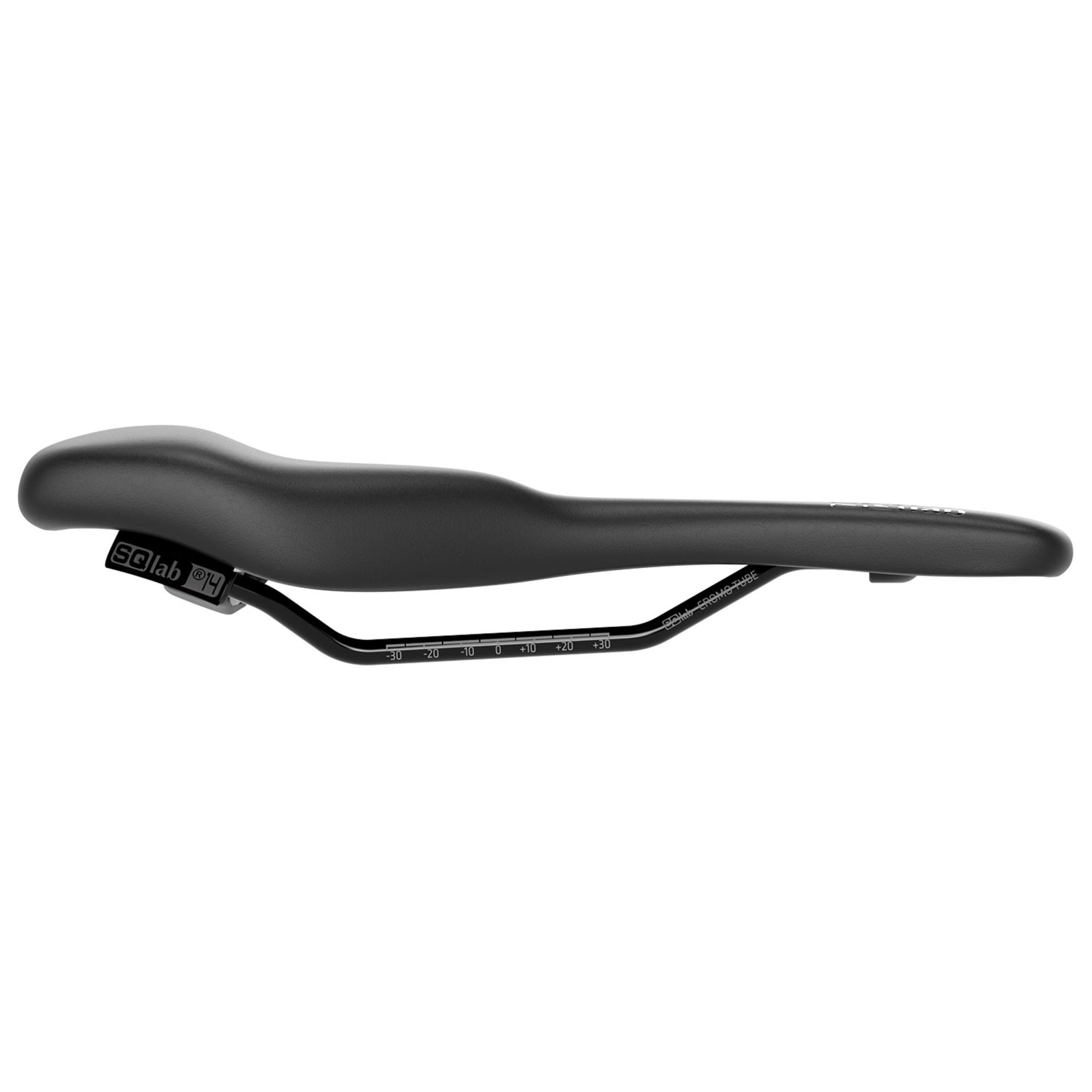

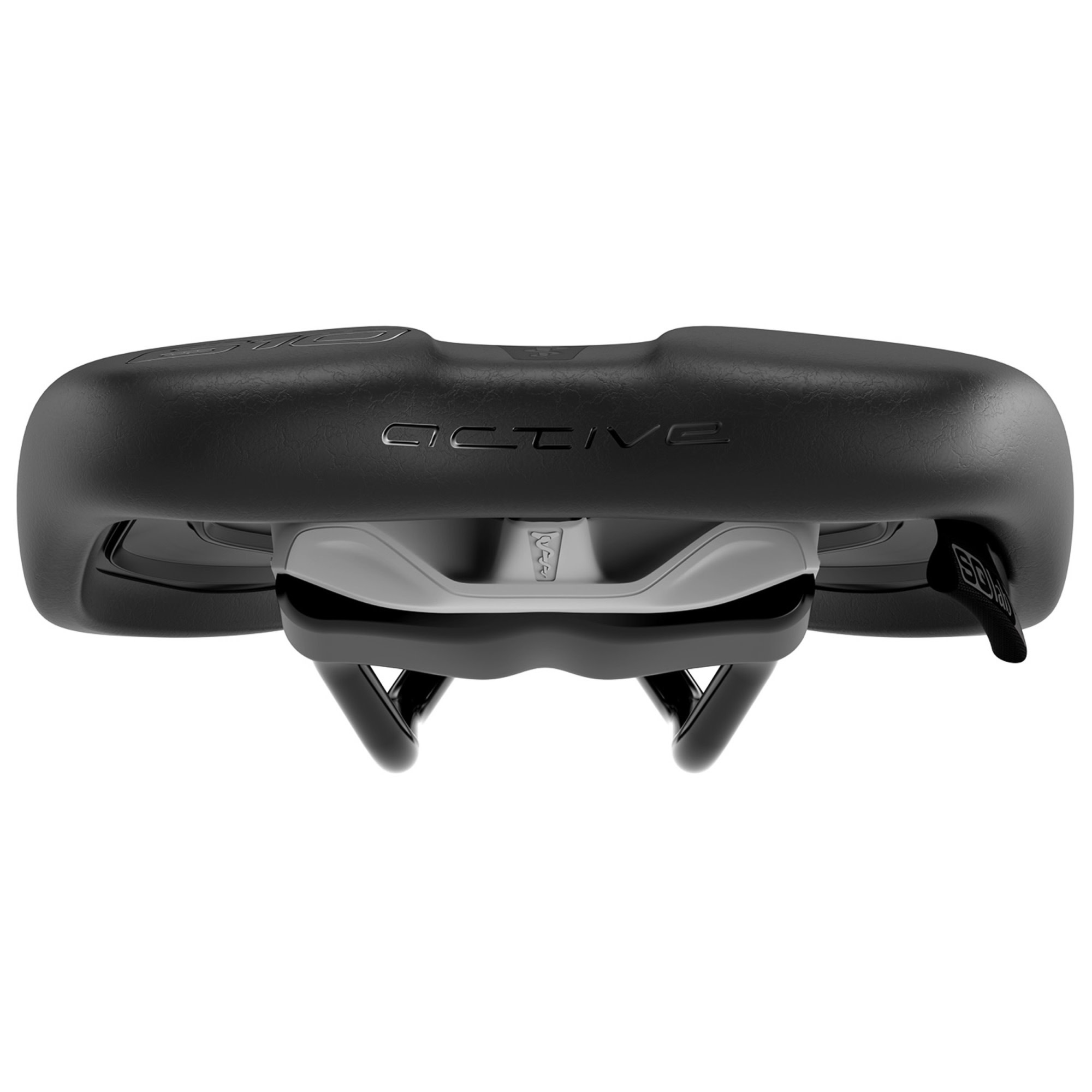

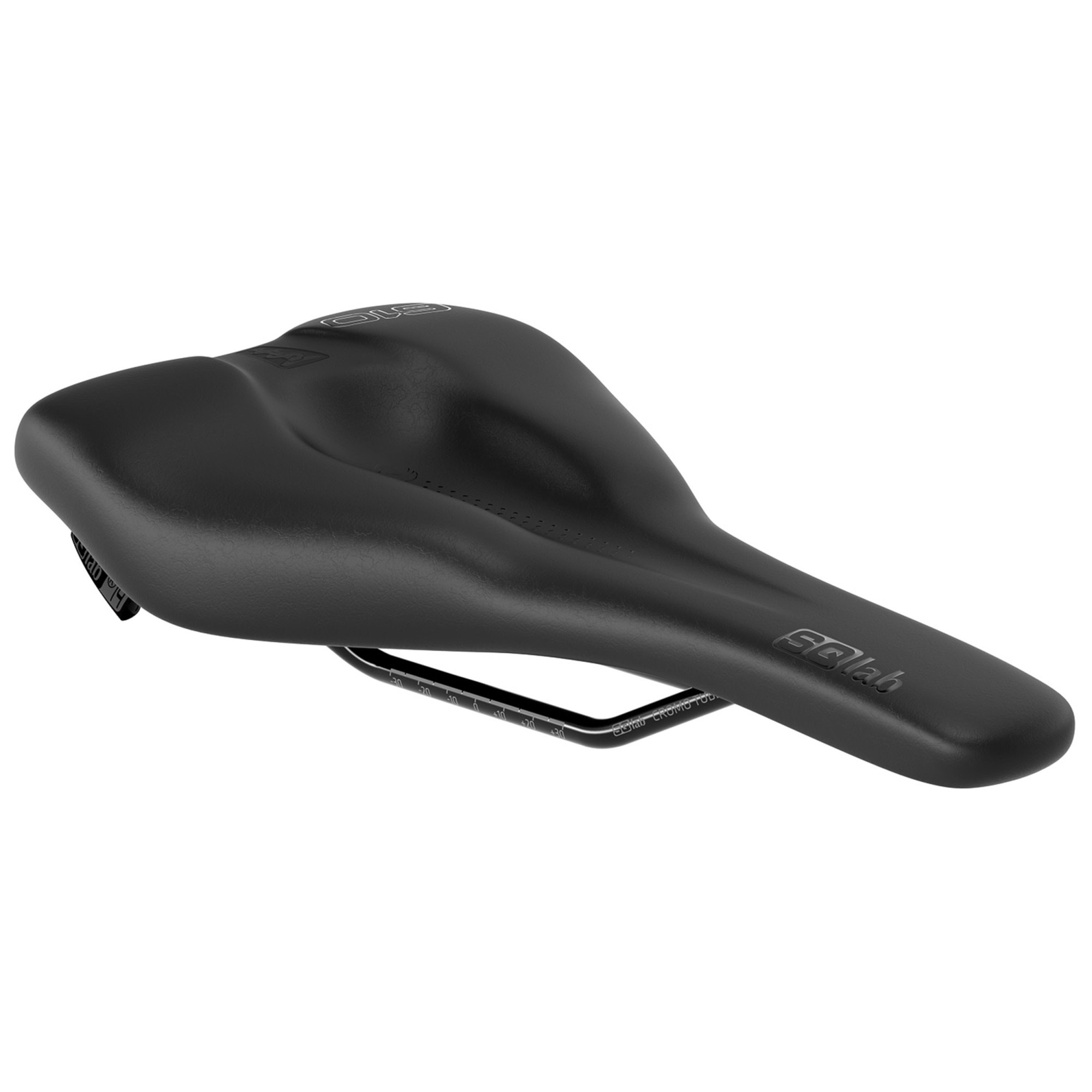

The 610 ERGOLUX® 2.1 is for the comfort-oriented mountain biker and the sporty trekking rider. Many small detail improvements in shape, technology and material raise the new 610 ERGOLUX® active 2.1 to a new level. The two-stage wave shape has been specially adapted to the requirements of the comfort-oriented cyclist.
Despite the sporty look, this increases comfort at the sit bones and ischial branches. The first level offers perfect support to the rear in a moderate to sporty riding position and thus ensures direct power transfer to the pedal. The second level optimally supports the sit bones or the ischial branches in the sporty seating position and thus ensures the best possible pressure distribution. The lower saddle nose relieves pressure on the sensitive structures and pubic bone branches of both men and women.
The 610 ERGOLUX® active 2.1 is equipped with the new active technology with a softer and lighter movement with less weight. The SQlab active saddle technology allows the saddle to follow the pedalling movement, the comfort increases, the intervertebral discs are mobilised and the pressure on the sit bones is minimised. Pain in the lumbar region, especially on longer tours, can thus be reduced. The timeless design adapts perfectly to any bicycle.
ARTICLE NUMBER(S): 2386 / 2387 / 2388 / 2389 / 2468
AREA OF USE/BICYCLE TYPE: MTB TOUR & TRAVEL
SITTING POSITION(S): MODERATE (+2 CM) / BEND (+3 CM)
WIEGHT(S) IN G: APPROX. 334 / 344 / 354 / 364
ACTIVE TECHNOLOGY: YES - SPORT
MOUNTING HEIGHT IN MM: APPROX. 55
SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH): 14 / 15 / 16 / 17
LENGTH IN MM: APPROX. 280
MATERIAL RAILS: CRMO TUBE (HOLLOW)
MATERIAL BASE: GLASS FIBRE REINFORCED POLYAMIDE COMPOUND (PA12 + GF)
MATERIAL PADDING: LIGHT FOAM
MATERIAL COVER: MICROFIBRE
HARDNESS IN SQ-SHORE: 50
RELIEF OF PERINEAL AREA IN %: 72
MAXIMUM LOAD IN KG: 100
MAXIMUM TORQUE IN NM: 18
E-BIKE READY: YES
DIN / ASTM CATEGORIES: 3
