Triathletes are capable of suffering but still experience sitting troubles excessively. The extreme sitting position in combination with long riding units presents an ergonomic challenge.
The 613 ERGOWAVE® R Carbon is designed with a raised rear section, allowing the pressure to shift towards the pubic bones for the first time in triathlon. The perineal area receives relief and the additional rearward support improves power transmission. As a positive side effect skin irritations are reduced.
The 613 ERGOWAVE® R Carbon offers:
- Relief of the sensitive areas
- More efficient power transmission
- prevention of exhausting protective postures
- More legroom
The reason why this adaption of the SQlab step saddle has been released five years after the SQlab ERGOWAVE® shape, is in the details. Creating a harmony between position and height of the step and combining it with the waist, dip and width as well as the drop at the tip of the nose involved significant development efforts.
The 613 ERGOWAVE® R has not just any shape, but the perfect shape for the most difficult of all seating positions in cycling. Many years of SQlab experience are in this innovation: from all kinds of sitbone widths and different anatomies to solving customer concerns, we develop saddles not only to enhance comfort and relief but to boost performance in competitions as well.
ATTENTION! High oval carbon rails are not compatible with all seatposts
ARTICLE NUMBER(S): 2361 / 2362 / 2363
AREA OF USE/BICYCLE TYPE: TRIATHLON
WIEGHT(S) IN G: APPROX. 185 / 187 / 190
ACTIVE TECHNOLOGY: NO
MOUNTING HEIGHT IN MM: APPROX. 60
SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH): 11 / 12 / 13
LENGTH(S) IN MM: APPROX. 249
MATERIAL RAILS: CARBON (HIGH OVAL 7MM X 9,6MM - SOLID)
MATERIAL BASE: CARBON FIBRE REINFORCED POLYAMIDE COMPOUND (PA12 + CF)
MATERIAL PADDING: SUPERLIGHT FOAM
MATERIAL COVER: MICROFIBRE
HARDNESS IN SQ-SHORE: 55
RELIEF OF PERINEAL AREA IN %: 60
MAXIMUM LOAD IN KG: 90
MAXIMUM TORQUE IN NM: 18
E-BIKE READY: NO
DIN / ASTM CATEGORIES: 1, 6 / 1
613 ERGOWAVE® R CARBONE
Triathletes are capable of suffering, yet experience sitting troubles excessively. The extreme sitting position in combination with long riding units presents an ergonomic challenge.
Winner Design & Innovation Award 2021
“SQlab are well-known for their ergonomic accessories and saddles which are perfectly designed for the human anatomy and now, they have also recognised the specific demands triathletes have of a bike saddle. ... The optional integrated bottle mount on the underside of the saddle is a handy feature for longer rides.” Jury DI.A 2021
Maximum performance requires a fit and width that is perfectly tailored for individual athletes.
Available widths: 11 /12 / 13 cm
The elevated rear end shifts the pressure, for the first time in triathlon, in the direction of the ischium branches. It also provides additional support and thus creates a more efficient power transmission.
The slight dip in the middle of the saddle has been lengthened for the very sporty riding position to reduce the pressure on the sensitive structures of the perineal area.
Freedom of movement
The strong waist of the saddle shape ensures maximum legroom. This reduces friction on the thigh during the pedalling movement to a minimum.
Maximum contact surface
The wide, short and slightly sloping saddle nose offers a larger contact surface for the best possible pressure distribution.
Customize your SQlab 613 ERGOWAVE® R
Customize the 613 ERGOWAVE® R saddle according to your ideas and give it your own sticker design. The tail can be fully customized in the following configurator.

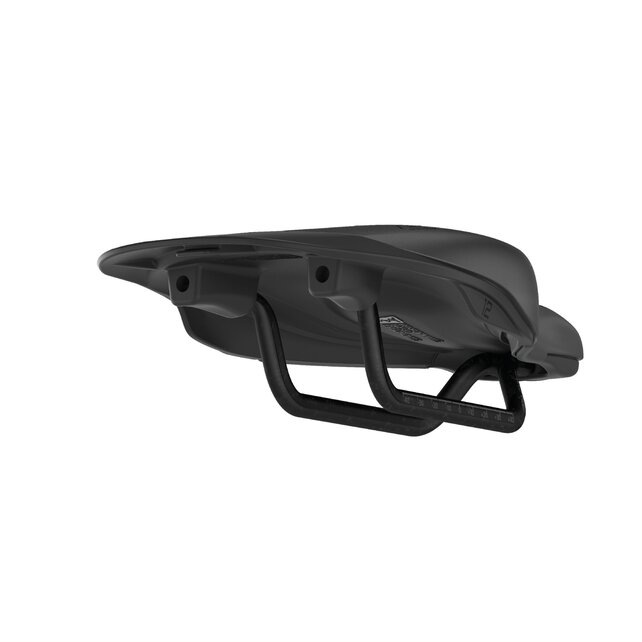

An integrated mount on the underside of the saddle offers the possibility to attach a bottle cage.
The carbon fiber reinforced saddle base offers more longitudinal stiffness and perfectly coordinated material flex to the side means more comfort with less weight at the same time.
The saddle is available in two different versions.
