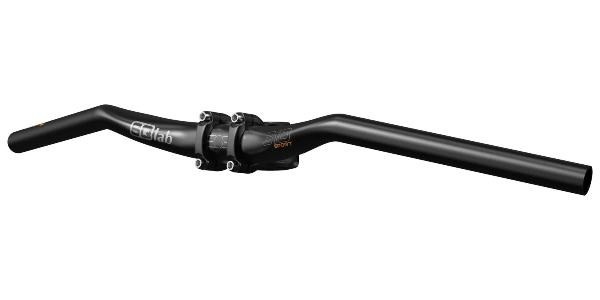

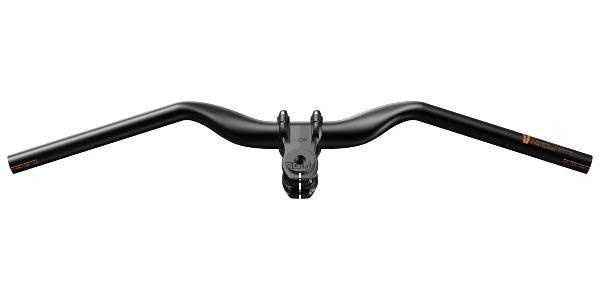

SQLab 310 Comfort & Fitness Handlebar - Version 2.0

SQLab 310 is ideal for fitness, urban, speed bikes, and fast trekking bikes with an athletic (+1) up to moderate (+2) riding position.

In comparison to conventional, straight bars the 310 has three noteworthy advantages: The 16° back sweep (traditional is 0° - 6°), straightens the wrist, and ensures for a straight transition of the lower arm to the hand. Pain in the middle-, index finger, and thumb are common complaints with too straight bars that cause an overstretching of the wrist. The neutral up-/down sweep (0°) makes the 310 the optimal all-rounder for its intended use. The ovalization on either side of the clamping area provides a low modulus of elasticity which increases the comfort on larger impacts and the risk of failure is minimized.

The somewhat more comfortable version of the 310 sport.

The pictured stem is not included in the scope of delivery.

Technical specifications

ARTICLE NUMBER(S): 2211

AREA OF USE/BICYCLE TYPE: TREKKING

WEIGHT(S) IN G: APPROX. 275

MATERIAL: ALUMINIUM

WIDTH(S) IN MM: 680

MAXIMUM CUTTING WIDTH IN MM: 620

RISE IN MM: 15

BACKSWEEP IN °: 16

UPSWEEP IN °: -

DOWNSWEEP IN °: 0

CLAMP DIAMETER IN MM: 31,8

STEM CLAMPING WIDTH IN MM: 60

MAXIMUM TORQUE IN NM: 8

MAXIMUM SYSTEM WEIGHT ALLOWED IN KG: 120

E-BIKE READY: NO

DIN/ASTM CATEGORIES: 2
