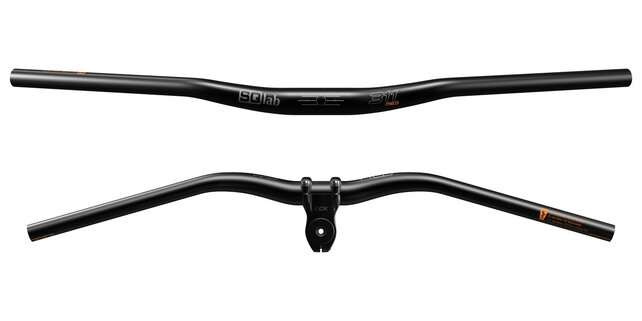

The 16° backsweep provides a natural transition from lower arm to the hand. This is especially important with handlebars of width greater than 700 mm. The 10mm forward reach almost make up for the reduced reach which the higher sweep...
Description at a glance:

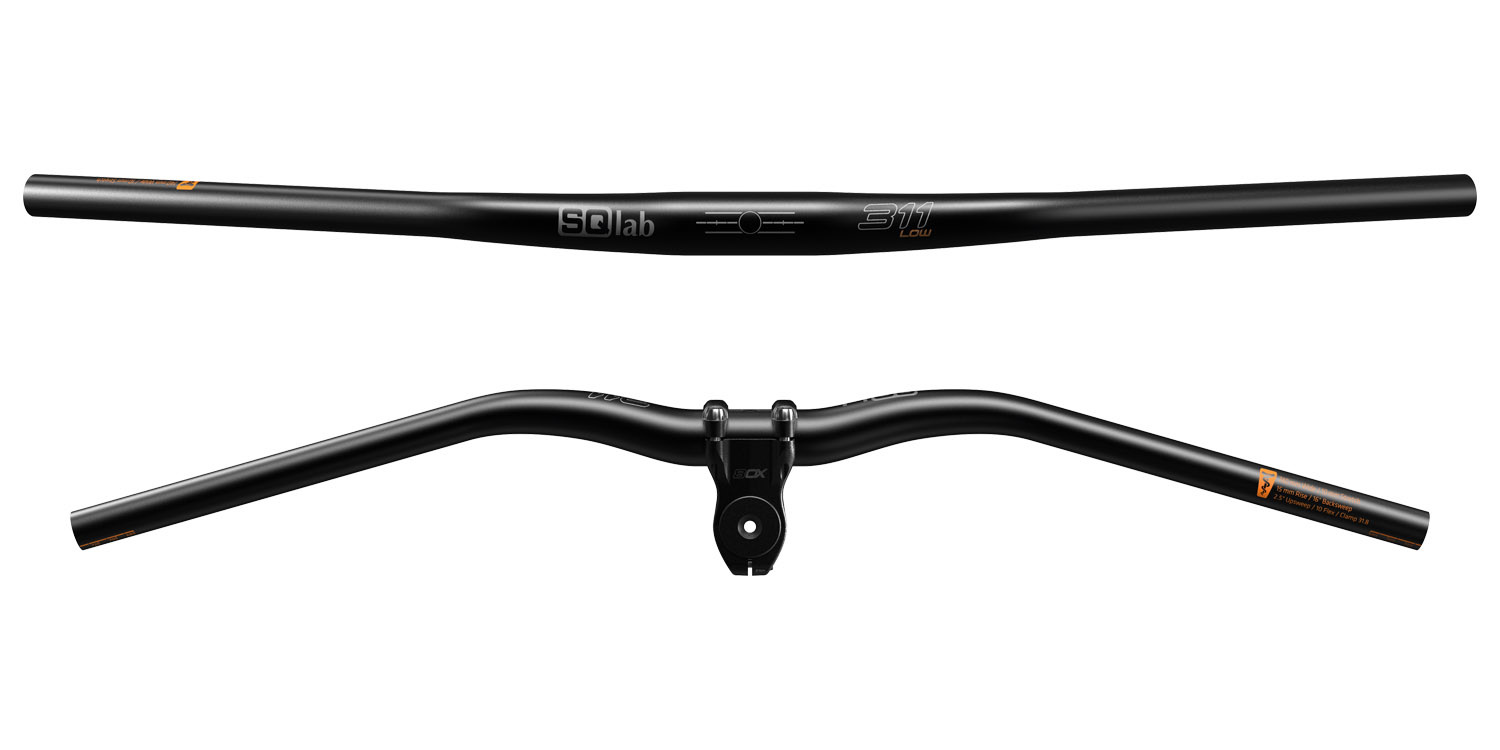

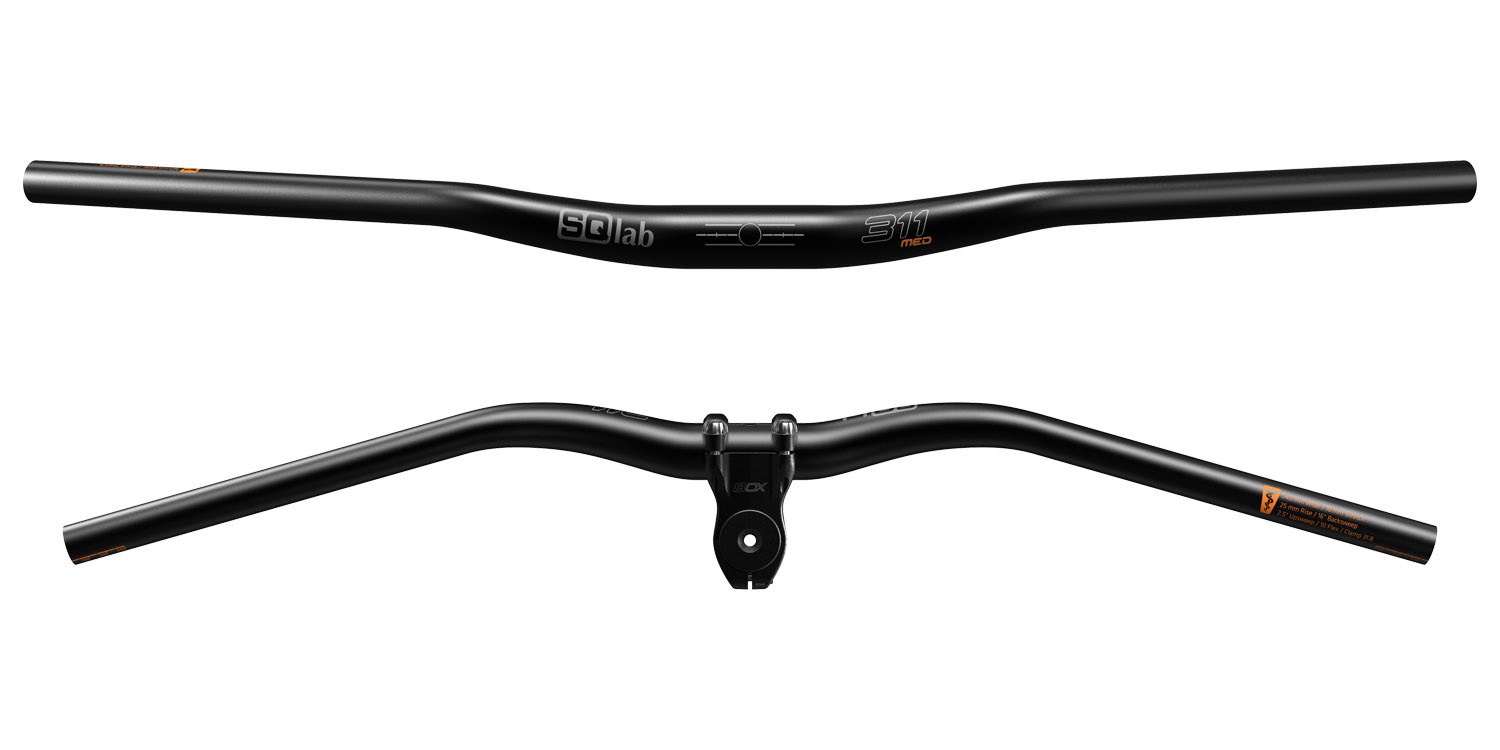

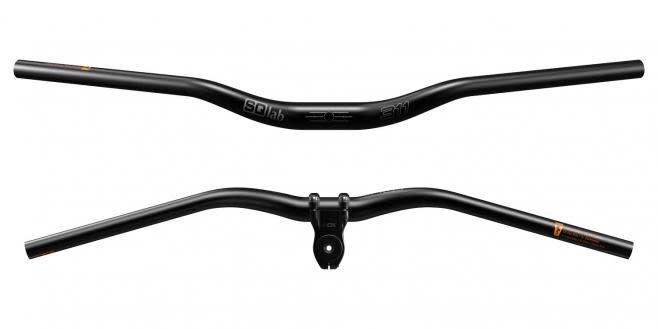

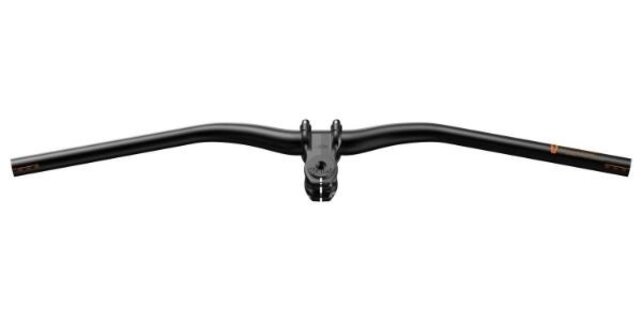

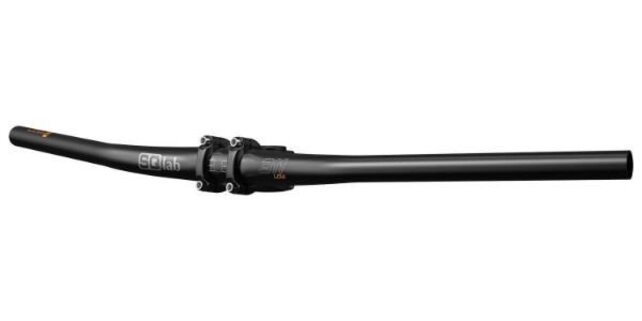

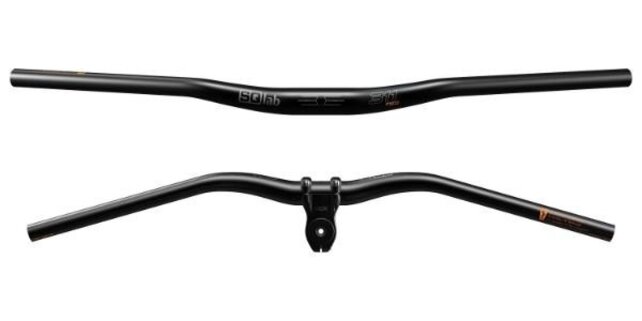

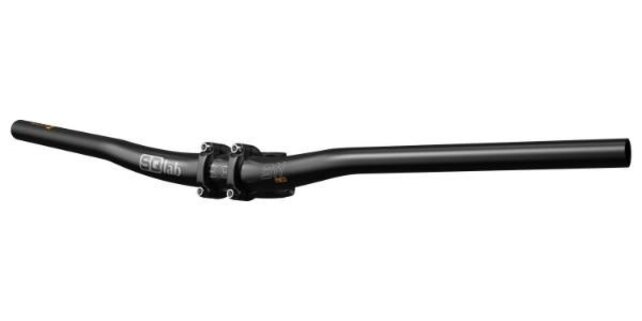

The 16° backsweep provides a natural transition from lower arm to the hand. This is especially important with handlebars of width greater than 700 mm. The 10mm forward reach almost make up for the reduced reach which the higher sweep provides. The 2,5° upsweep bring the elbows into a perfect position for a dynamic riding style. Only the best in materials are used. Careful and precise bending and manufacturing processes make the SQlab 311 one of the most advanced handlebars on the market. The backsweep largely stems from the motocross arena where a similar backsweep and upsweep is custom. Only if the ergonomics are 100% perfect, you can ride at maximum pace and your body endure the associated high strain in the long run. The handlebar may not be used at bikeparks and for downhill-bikes. The smaller diameter increases the bar‘s flex properties. The shim - available in both plastic or aluminium – ensures a good fit of the bar in the stem and reduces the stress raisers at the edge of the stem.
Technical specifications at a glance:
ARTICLE NUMBER(S): 2206 / 2205 / 2204
AREA OF USE/BICYCLE TYPE: MTB TECH & TRAIL
WEIGHT(S) IN G: APPROX. 320 / 310 / 320
MATERIAL: ALUMINIUM
WIDTH(S) IN MM: 740
MAXIMUM CUTTING WIDTH IN MM: 680 / 680 / 700

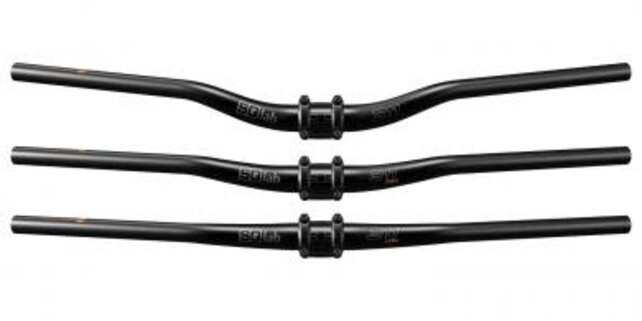

RISE IN MM: 15 / 25 / 50
BACKSWEEP IN °: 16
UPSWEEP IN °: 2,5
DOWNSWEEP IN °: -
CLAMP DIAMETER IN MM: 31,8
STEM CLAMPING WIDTH IN MM: 60
MAXIMUM TORQUE IN NM: 8
MAXIMUM SYSTEM WEIGHT ALLOWED IN KG: 120
E-BIKE READY: YES
DIN/ASTM CATEGORIES: 3
