Description at a glance:
Fast, light, sporty and agile.

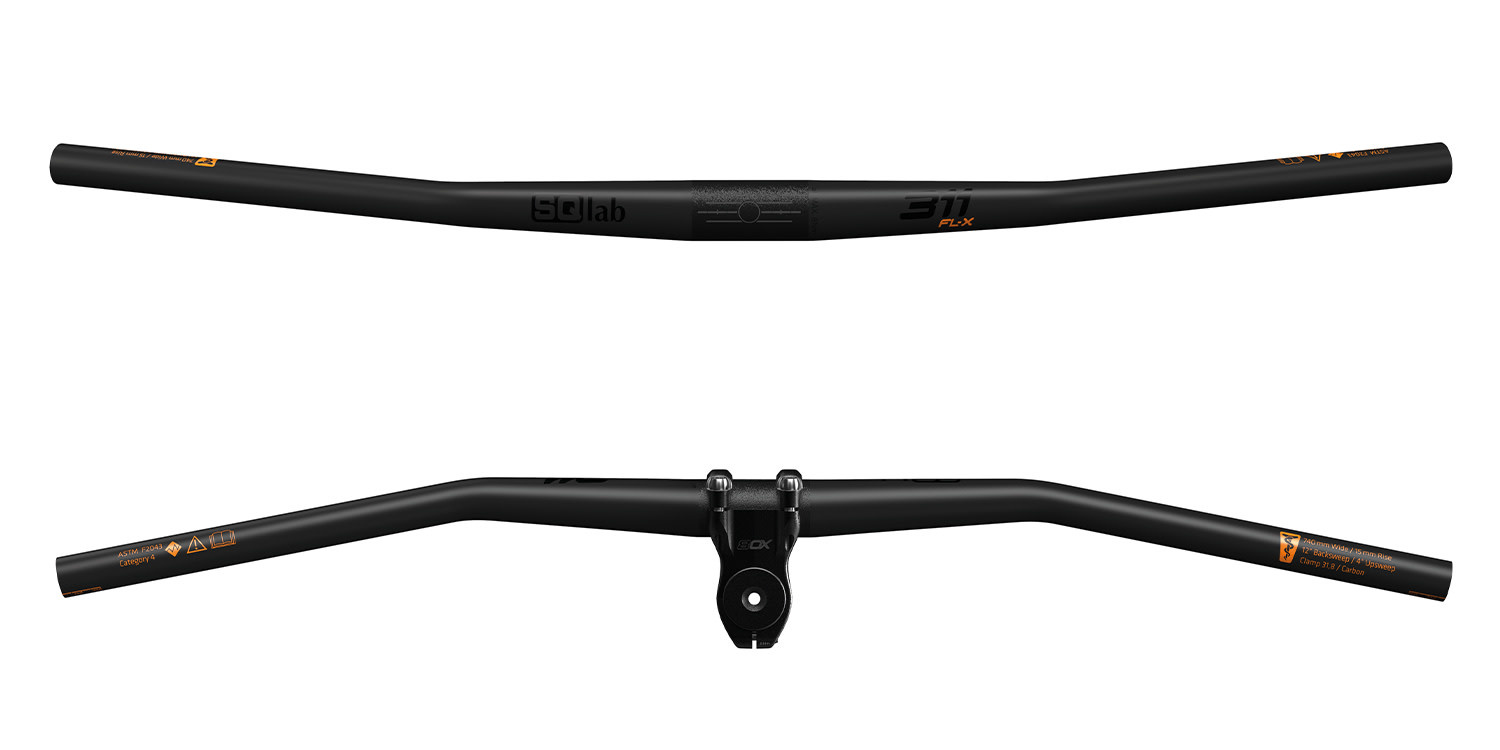

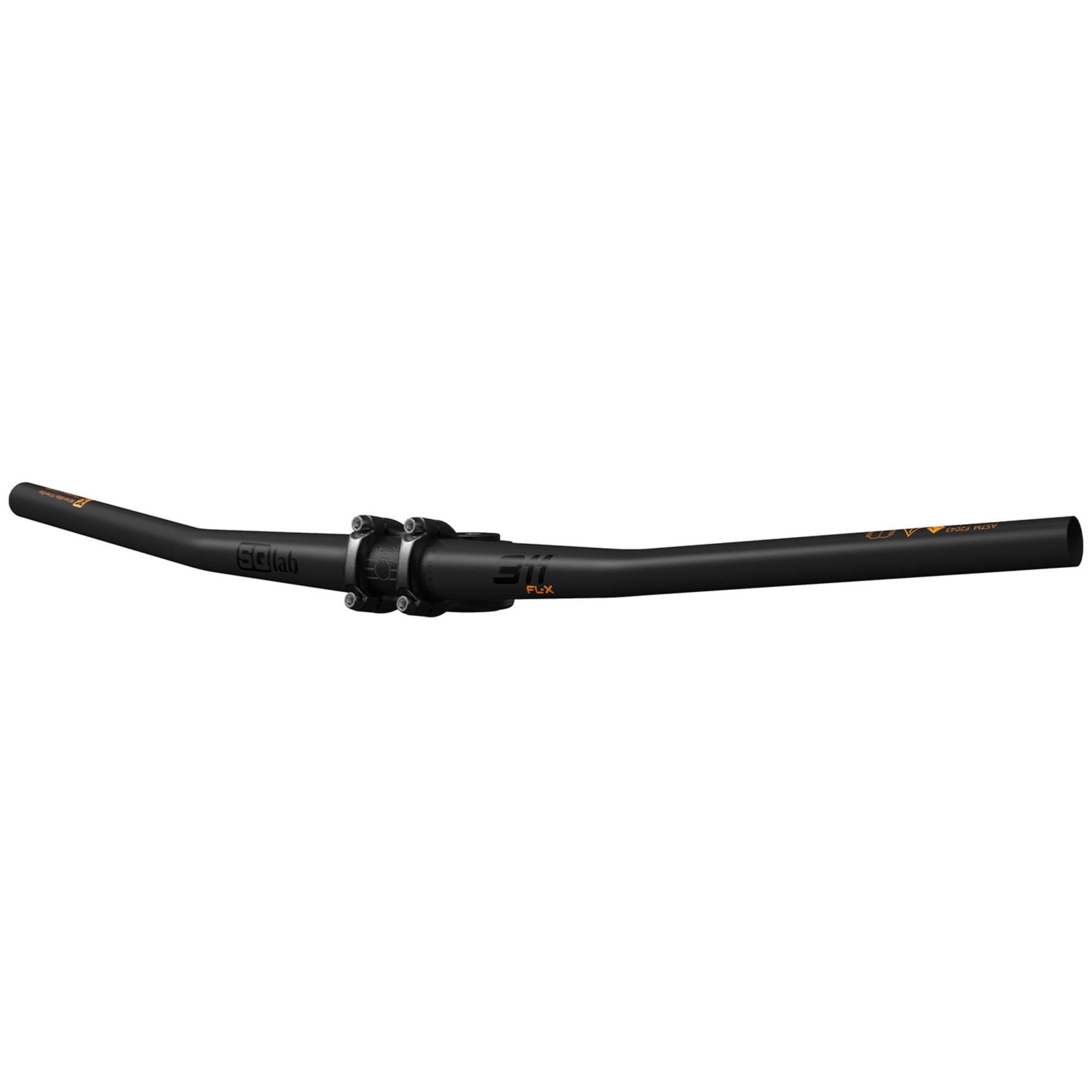

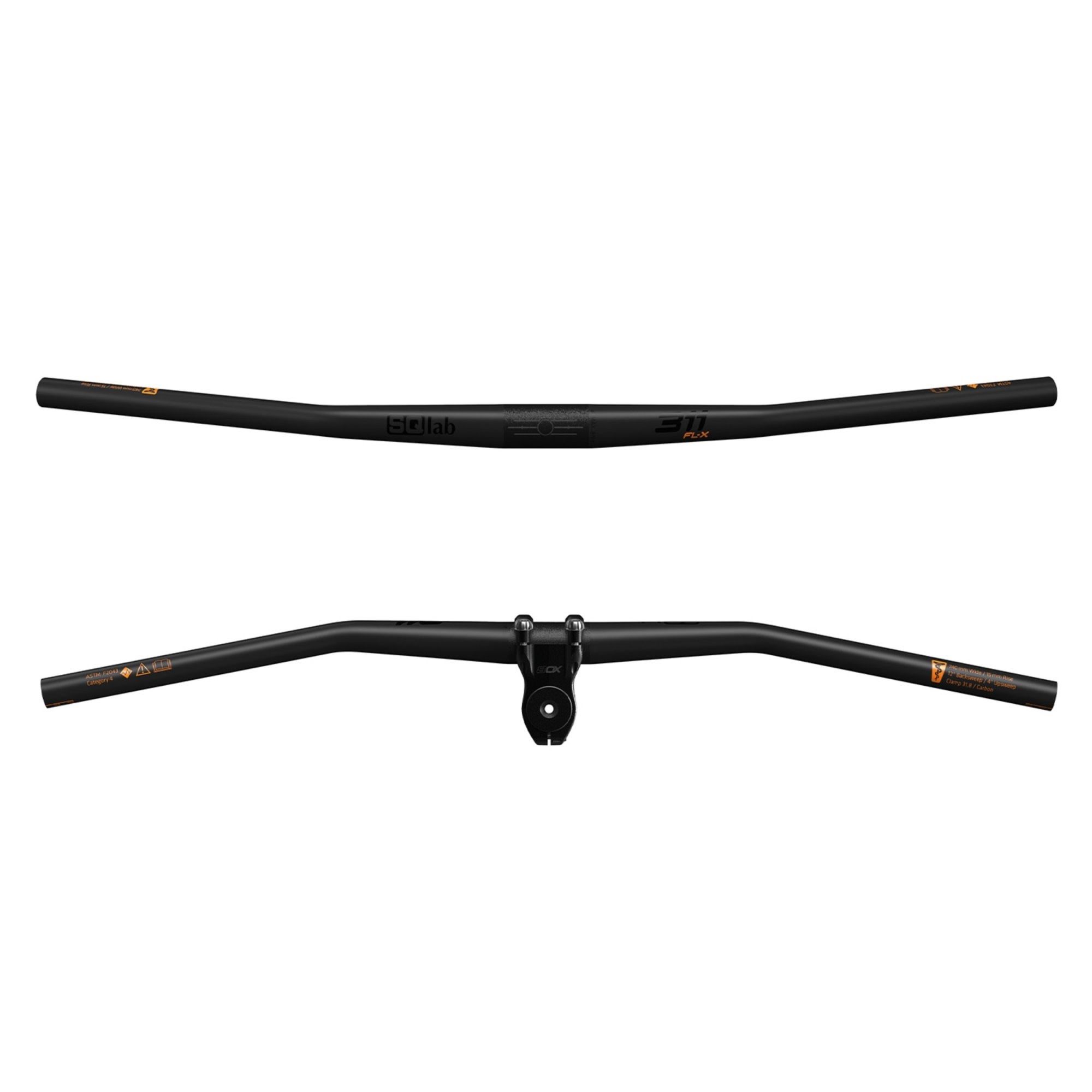

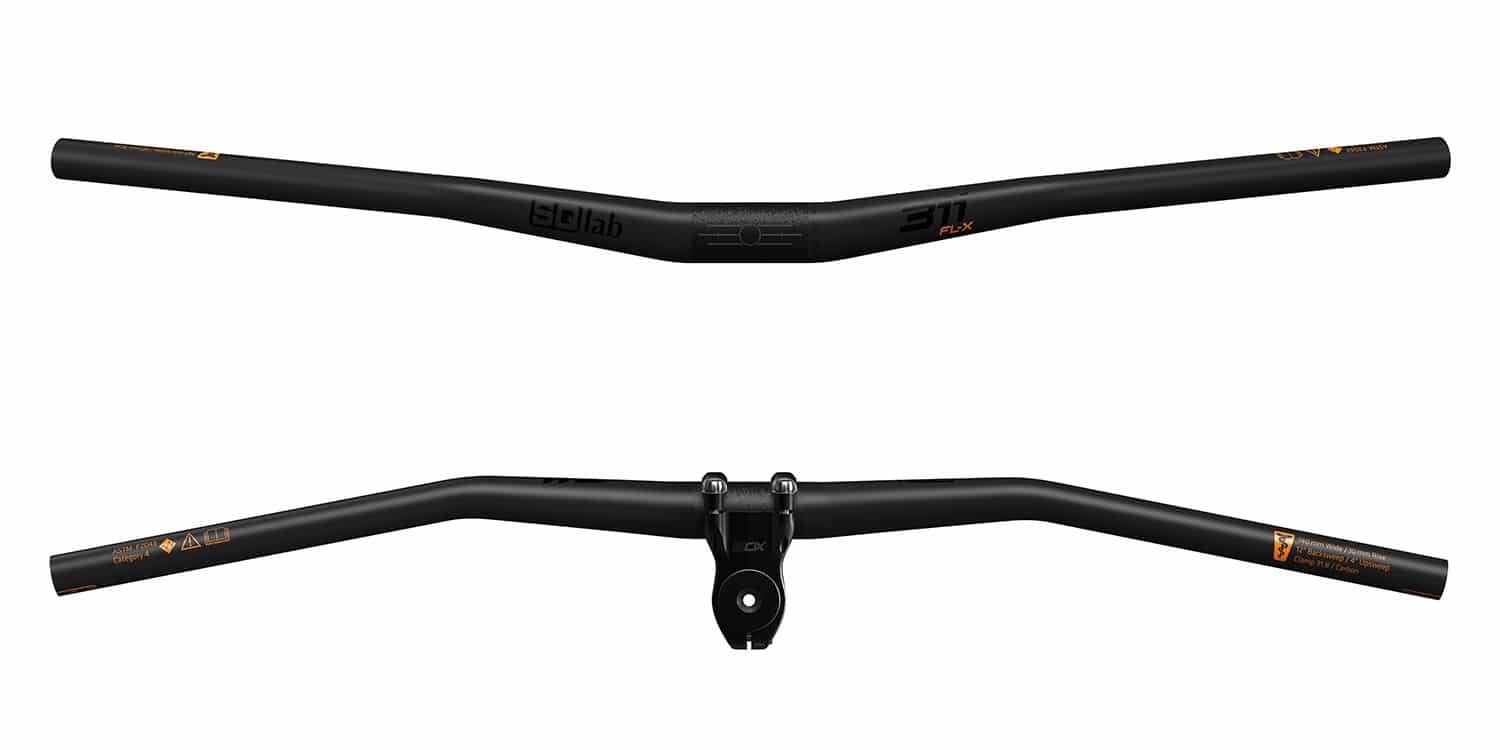

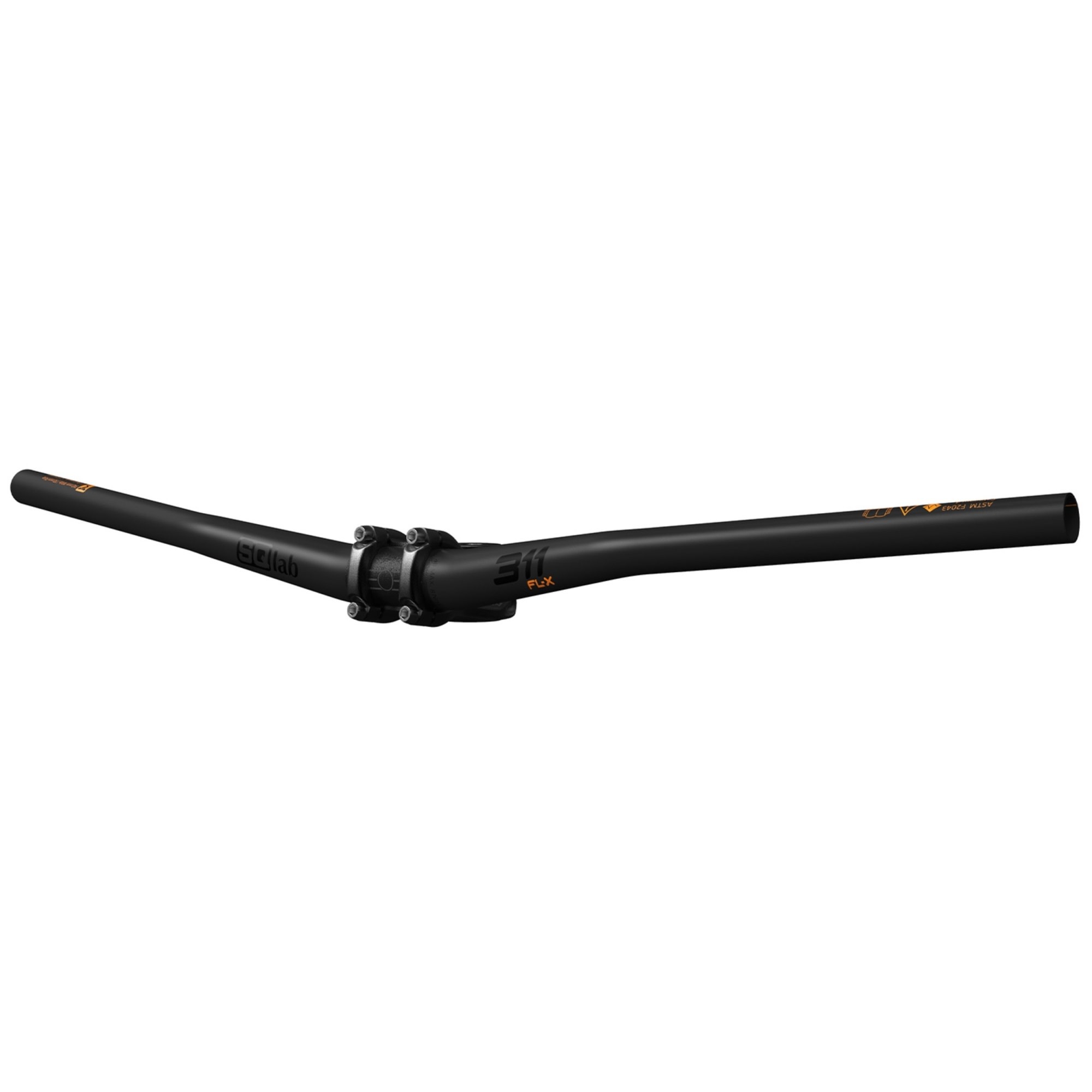

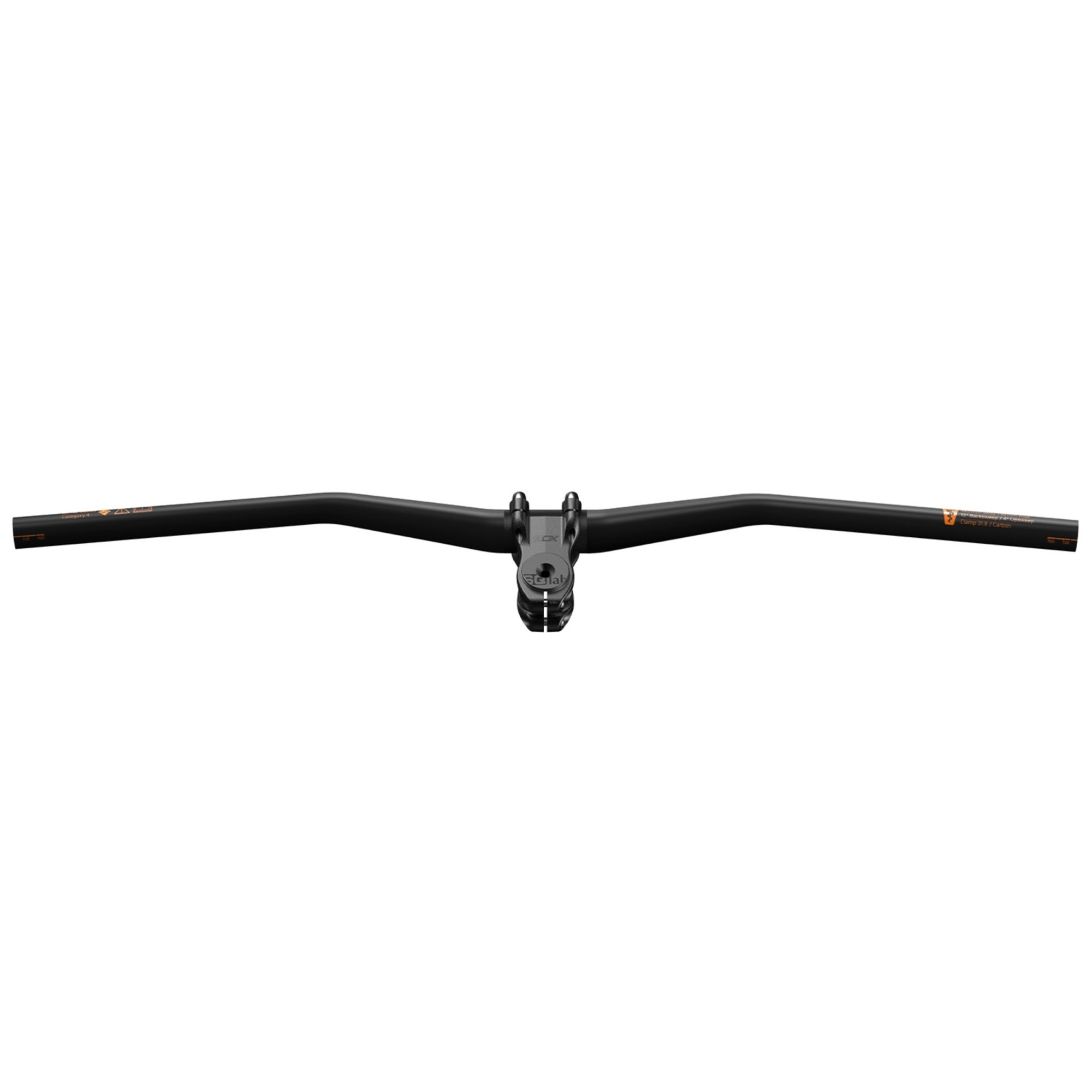

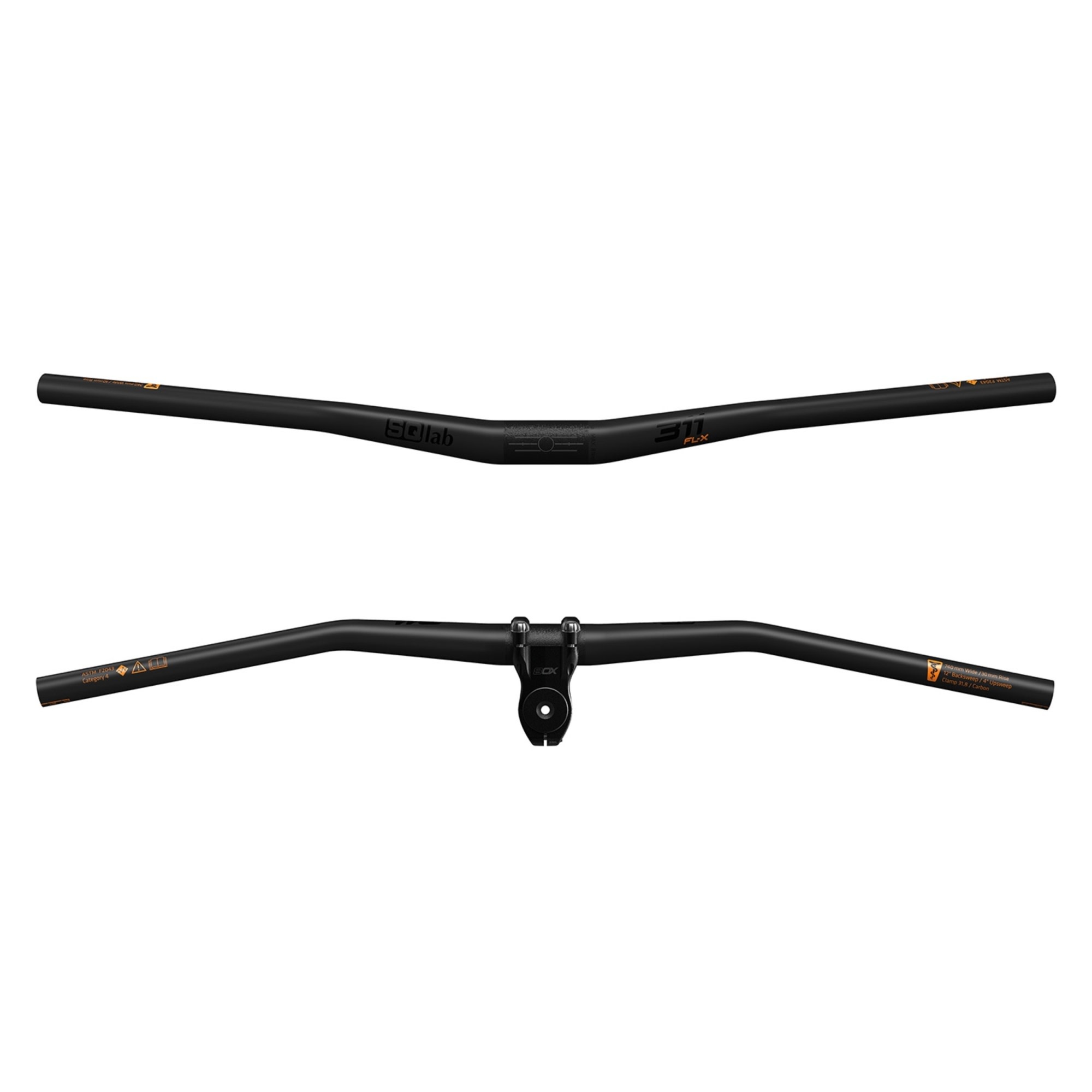

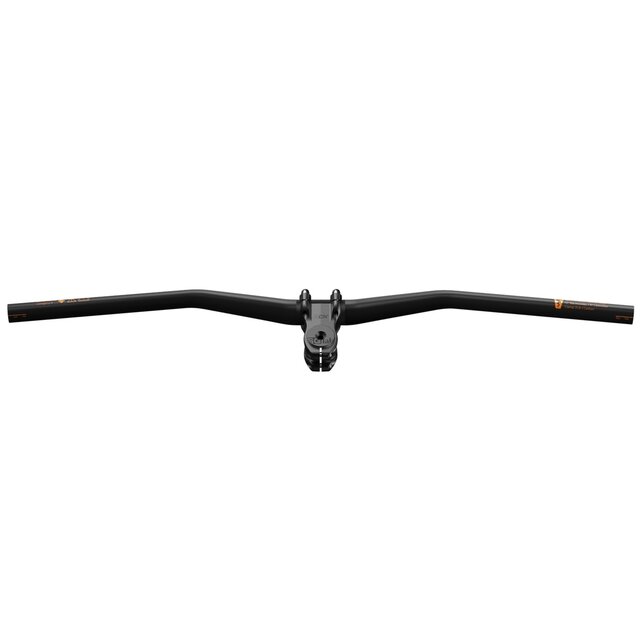

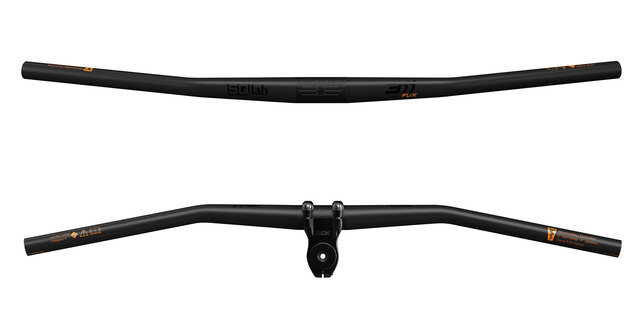

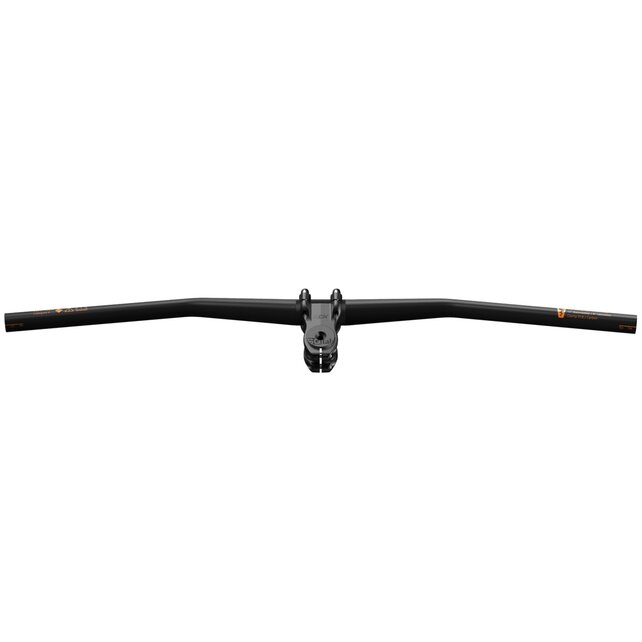

Who would have thought that the SQlab ergonomics experts are also quite good in high-tech, material science and carbon manufacturing. The 12° backsweep with its short reach provides a natural transition from the lower arm to the hand when in a more upright riding position thus protecting the wrist from the extreme strain. The 15mm or 30mm Rise (handlebar height) allows an individual adjustment of the sitting position. Clamping 31,8 mm
• Stability: Syntace and SQlab are the only manufacturers to remain in the big bike magazine break test without damage.
• Weight: At 200g, the handlebar is one of the lightest and most stable on the market.
• Ergonomics: With a sporty sitting position and a handlebar width from 740mm and under 9° backsweep, the wrists are always overstretched. SQlab currently has the monopoly for sporty MTB handlebars.
• Damping: The 311 FL-X has been developed with regard to flex behaviour. In an elaborate study we were able to prove that almost all high-quality handlebars have damping characteristics between 0% and 15%, depending on the intensity. The 311 FL-X is between 20% and 30%. The higher flex has no disadvantages in steering precision. The steering forces are clearly below the vertical forces.
• Area of use: MTB Race
Technical specifications at a glance:
ARTICLE NUMBER(S): 2336 / 2337
AREA OF USE/BICYCLE TYPE: MTB TECH & TRAIL
WEIGHT(S) IN G: APPROX. 198 / 203
MATERIAL: T1K CARBON
WIDTH(S) IN MM: 740
MAXIMUM CUTTING WIDTH IN MM: 700

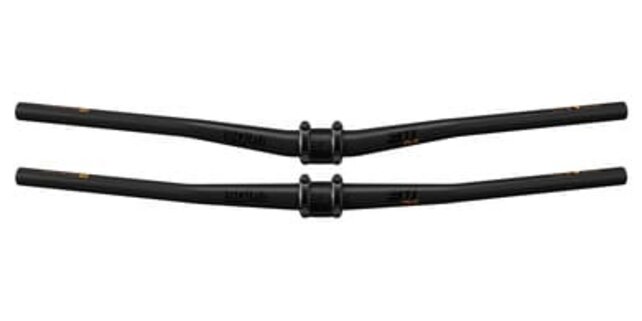

RISE IN MM: 15 / 30
BACKSWEEP IN °: 12
UPSWEEP IN °: 4
DOWNSWEEP IN °: 0
CLAMP DIAMETER IN MM: 31,8
STEM CLAMPING WIDTH IN MM: MIN. 46 - MAX. 58
MAXIMUM TORQUE IN NM: 8
MAXIMUM SYSTEM WEIGHT ALLOWED IN KG: 120
E-BIKE READY: YES
DIN/ASTM CATEGORIES: 4
