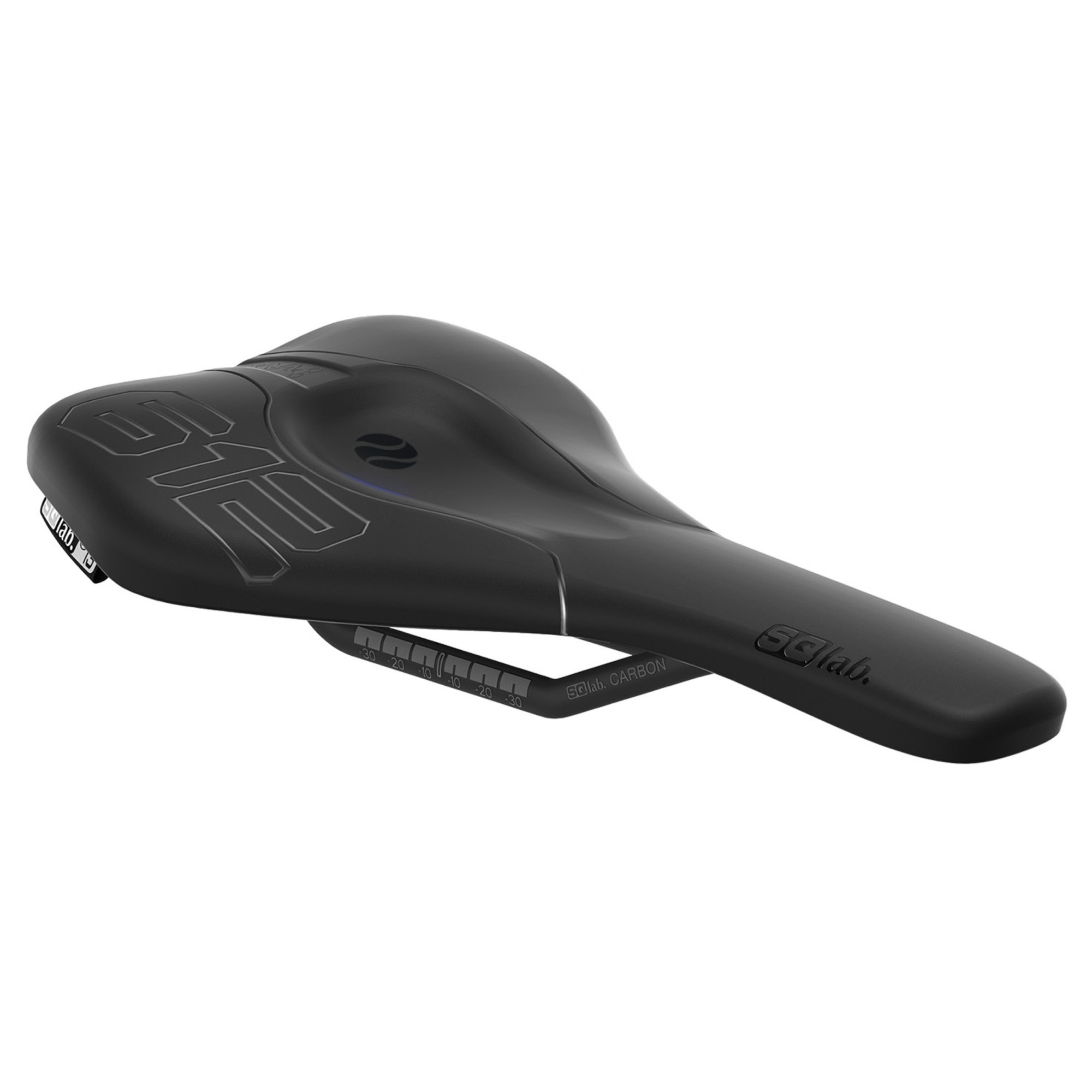

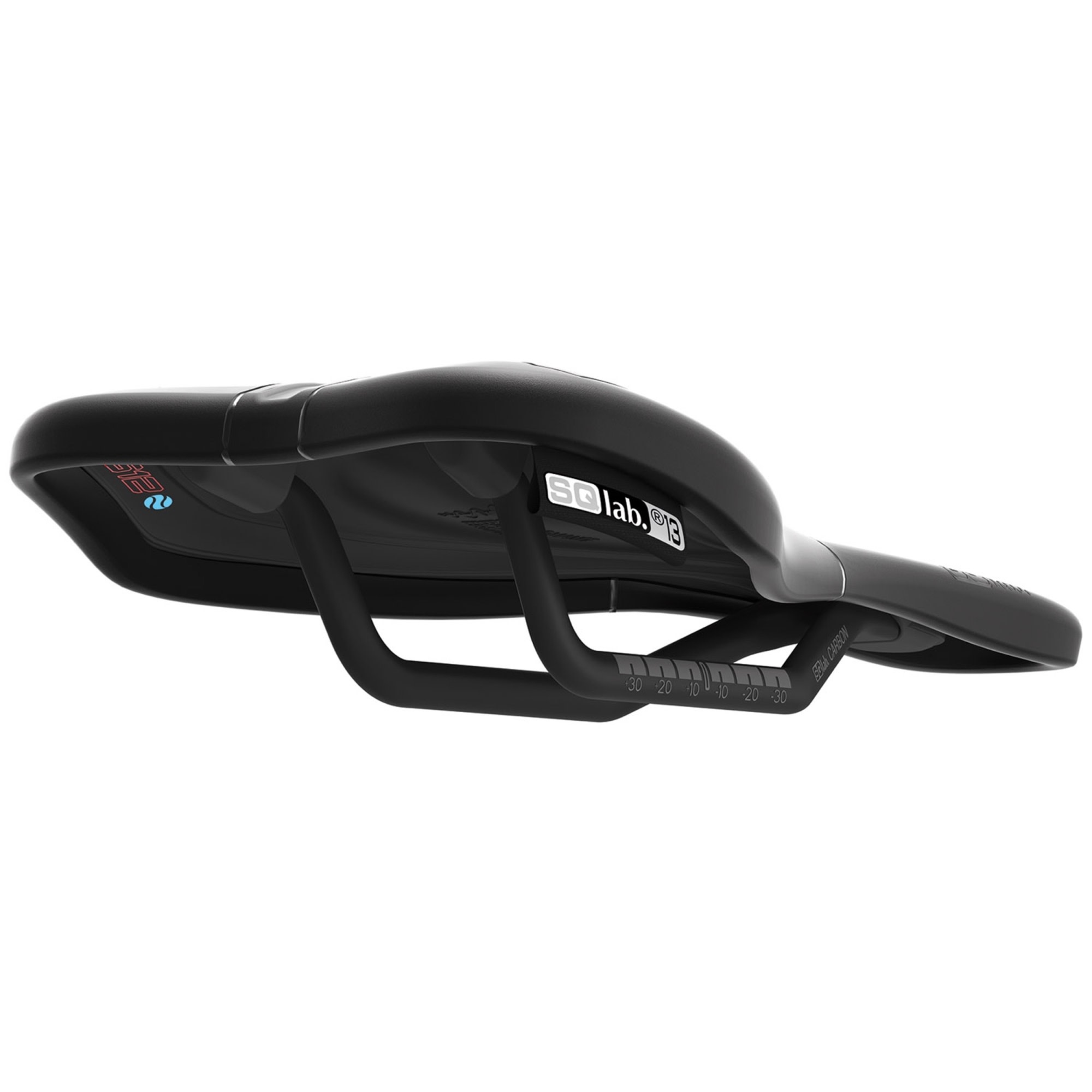

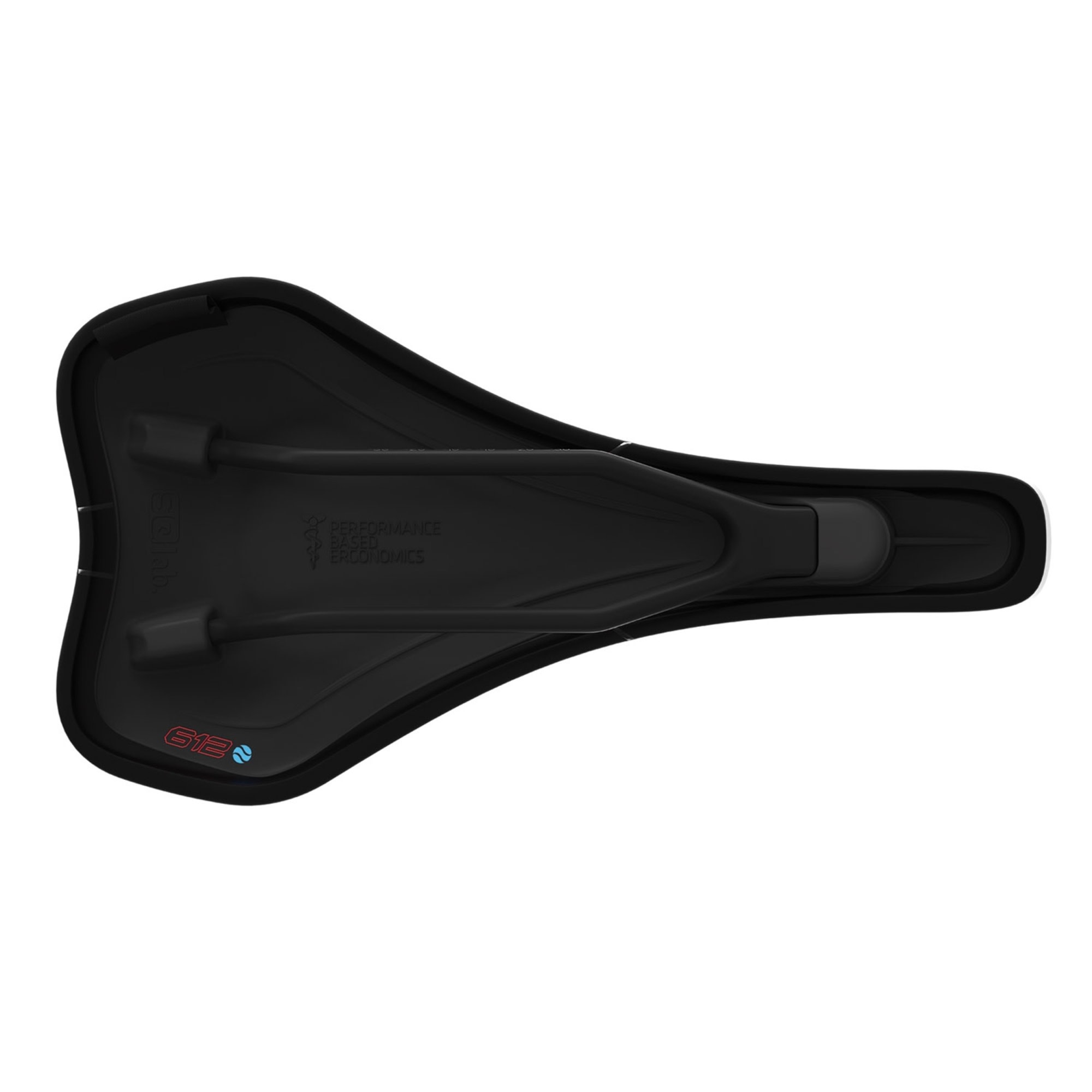

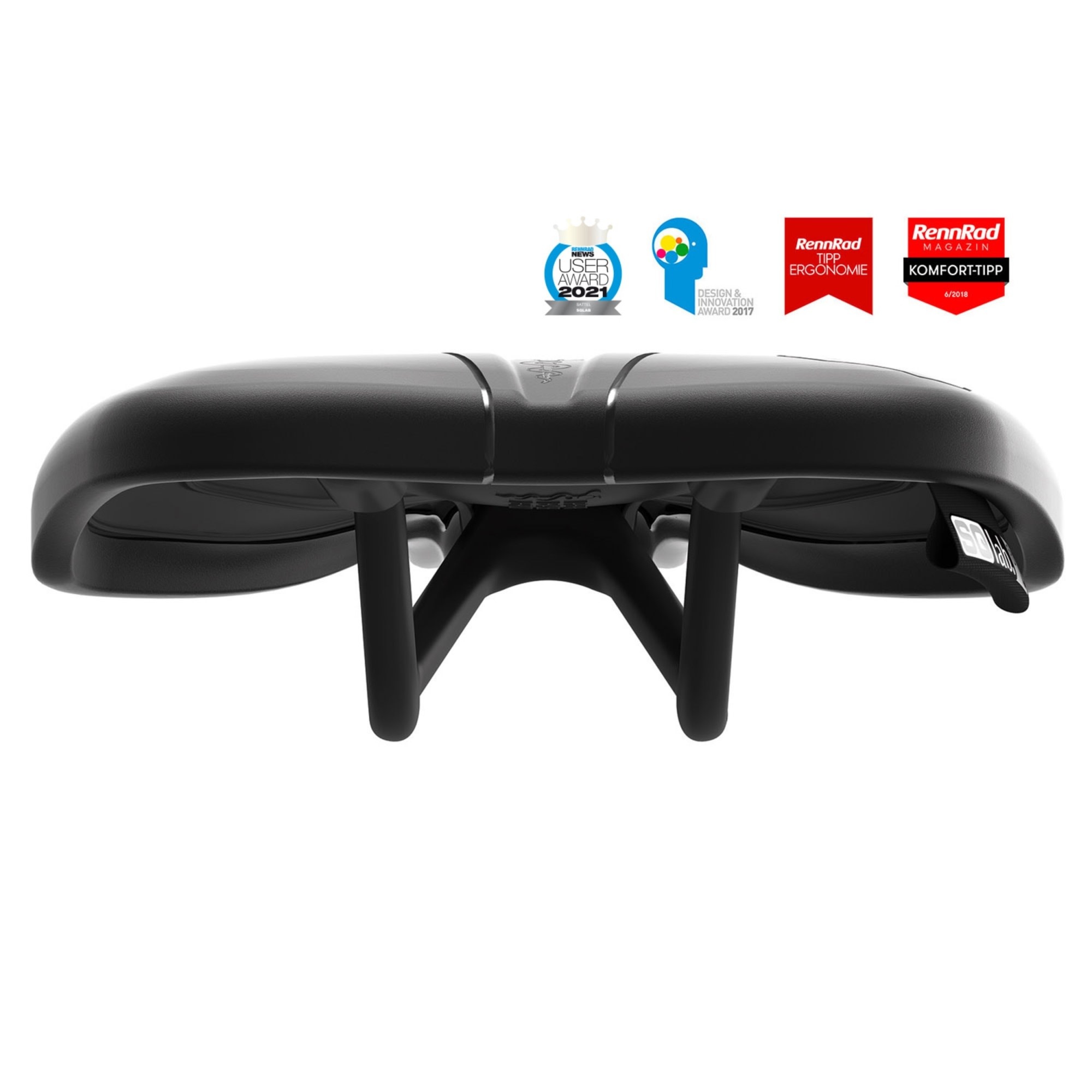

SQLab Saddle 612 Ergowave Carbon

SKU: 1853
$219.99
Excl. tax

The weight optimised 612 ERGOWAVE® Carbon was specifically designed to accomodate the requirements of both competitive and leisure cyclists both on the road or mountainbike. With 147 g it is the lightest 612 ERGOWAVE® model.

The rating of this product is 0 out of 5

(0)
On backorder



Maximum fit

Maximum performance requires a fit and width that is perfectly tailored for individual athletes.
Available widths: 12 / 13 / 14 / 15 cm



Light weight

147 g the lightest ERGOWAVE® model in the range. Only the 612R is lighter for the very sporty seating position.



High Tail

The high tail offers more grip to the rear and ensures more efficient power transmission.



Energy

The ERGOWAVE’s® wavy shape – stretching from the rear of the saddle to the front – perfectly fits most ischial rami. The rider does not have to assume an energy sapping posture.

Low and Flat

The saddle nose’s flat and lightly curved shape results in a maximum contact area with ultra low pressure.




Technical specifications


ARTICLE NUMBER(S): 1853 / 1854 / 1855 / 1856

AREA OF USE/BICYCLE TYPE: ROAD & MTB RACE

WEIGHT(S) IN G: APPROX. 144 / 145 / 146 / 150

LENGTH(S) IN MM: APPROX. 280

ACTIVE TECHNOLOGY: NO

MOUNTING HEIGHT IN MM: APPROX. 50

SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH): 12 / 13 / 14 / 15

MATERIAL RAILS: CARBON (HIGH OVAL 7MM X 9,6MM - SOLID)

MATERIAL BASE: CARBON FIBRE REINFORCED POLYAMIDE COMPOUND (PA12 + CF)

MATERIAL PADDING: SUPERLIGHT FOAM

MATERIAL COVER: MICROFIBRE

HARDNESS IN SQ-SHORE: 60

RELIEF OF PERINEAL AREA IN %: 63

MAXIMUM LOAD IN KG: 90

MAXIMUM TORQUE IN NM: 18

E-BIKE READY: NO

DIN/ASTM CATEGORIES: 4

GENDER: UNISEX

Description


The weight optimised 612 ERGOWAVE® Carbon was specifically designed to accomodate the requirements of both competitive and leisure cyclists both on the road or mountainbike. With 147 g it is the lightest 612 ERGOWAVE® model. The wave-like shape and raised rear section provides perfect rearward support and an optimal pressure distribution which reaches deep into the body structures resulting in improved power transmission. The lowered nose in combination with the dip provides optimal pressure relief for the perineal area. The flat but slim SQlab MaxContact® saddle nose and the firm padding of the 612 were both specifically designed for the needs on the roadbike. Due to its flex properties, the saddle is most comfortable up to 75 kg. The maximum load should not exceed 90 kg.

ATTENTION! High oval carbon rails are not compatible with all seatposts
