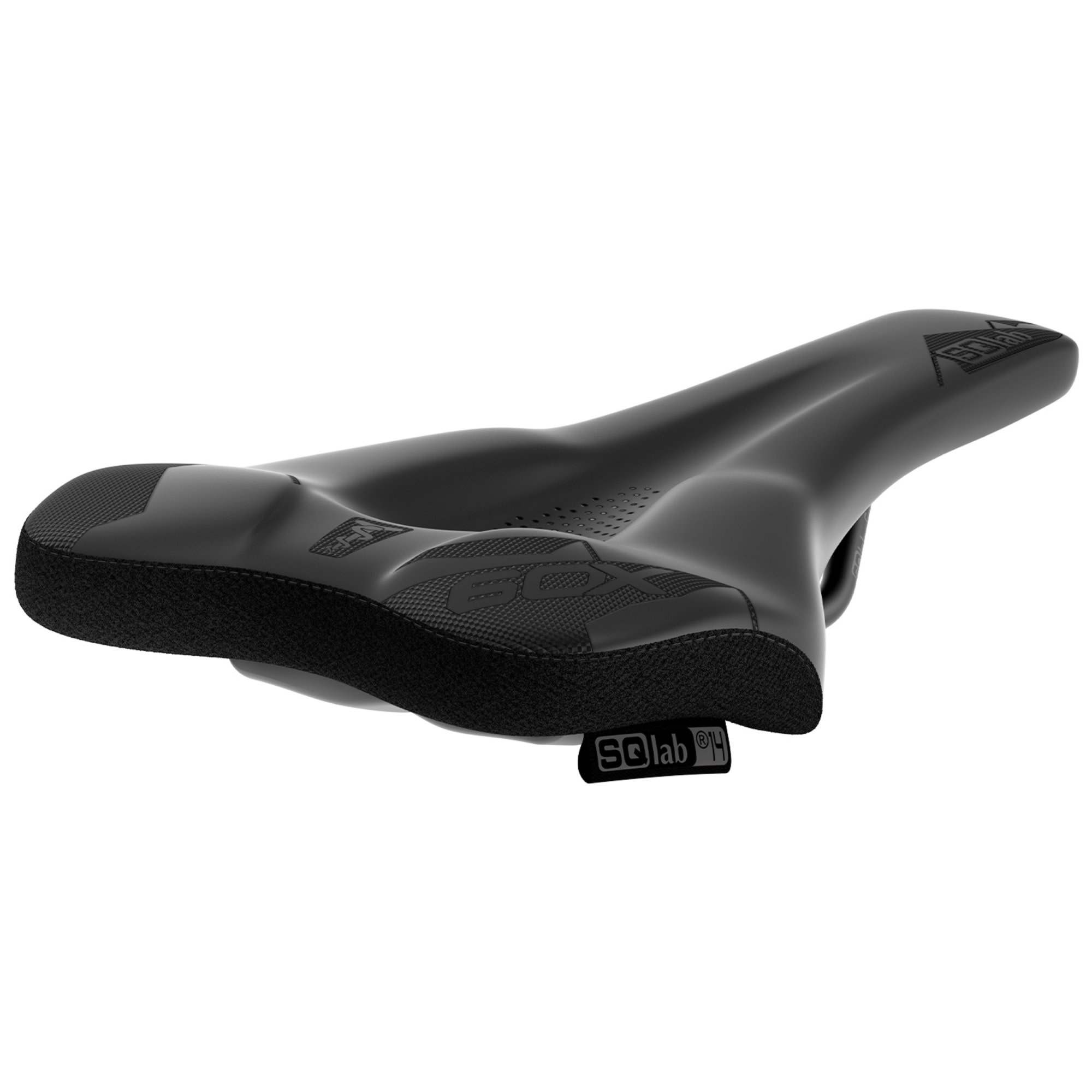

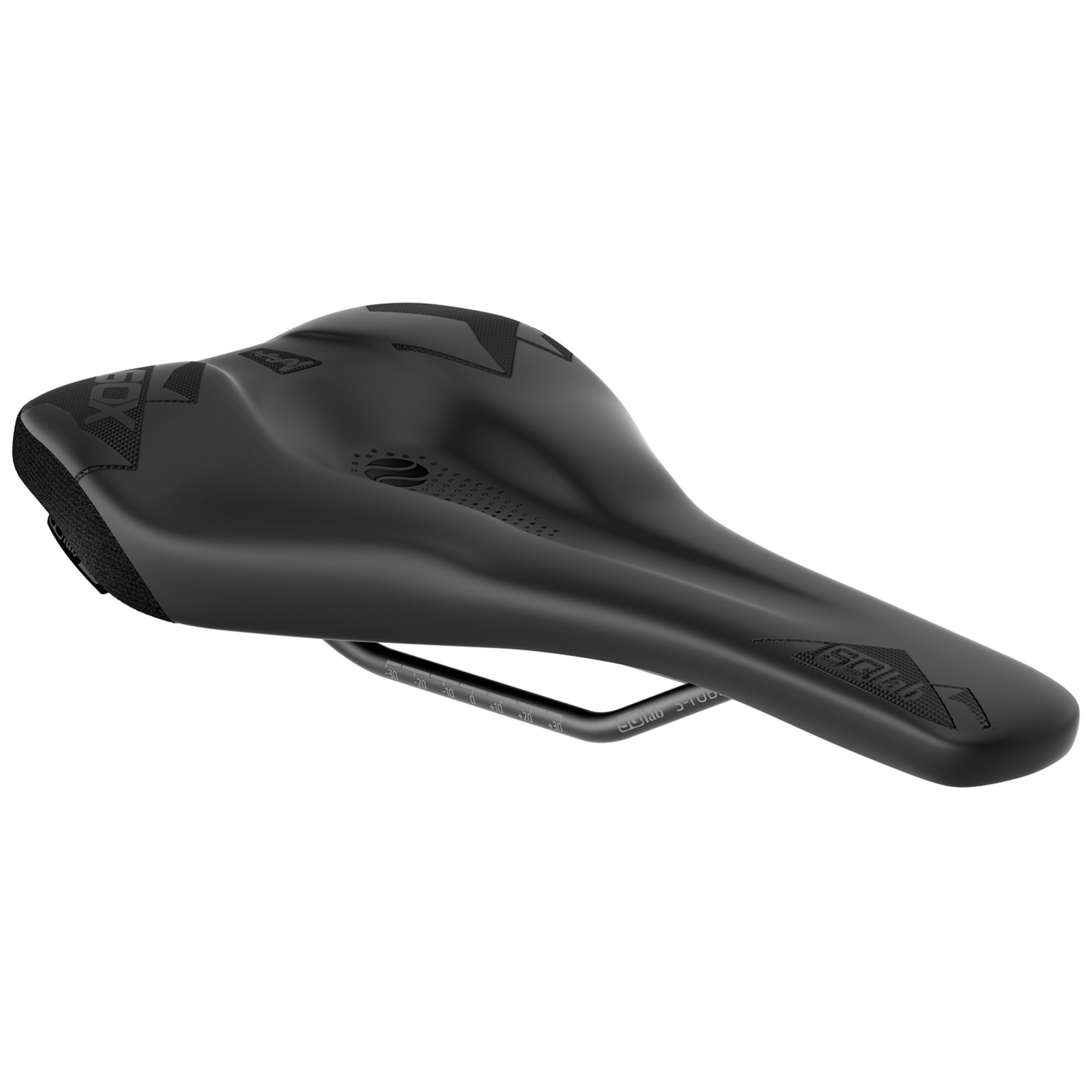

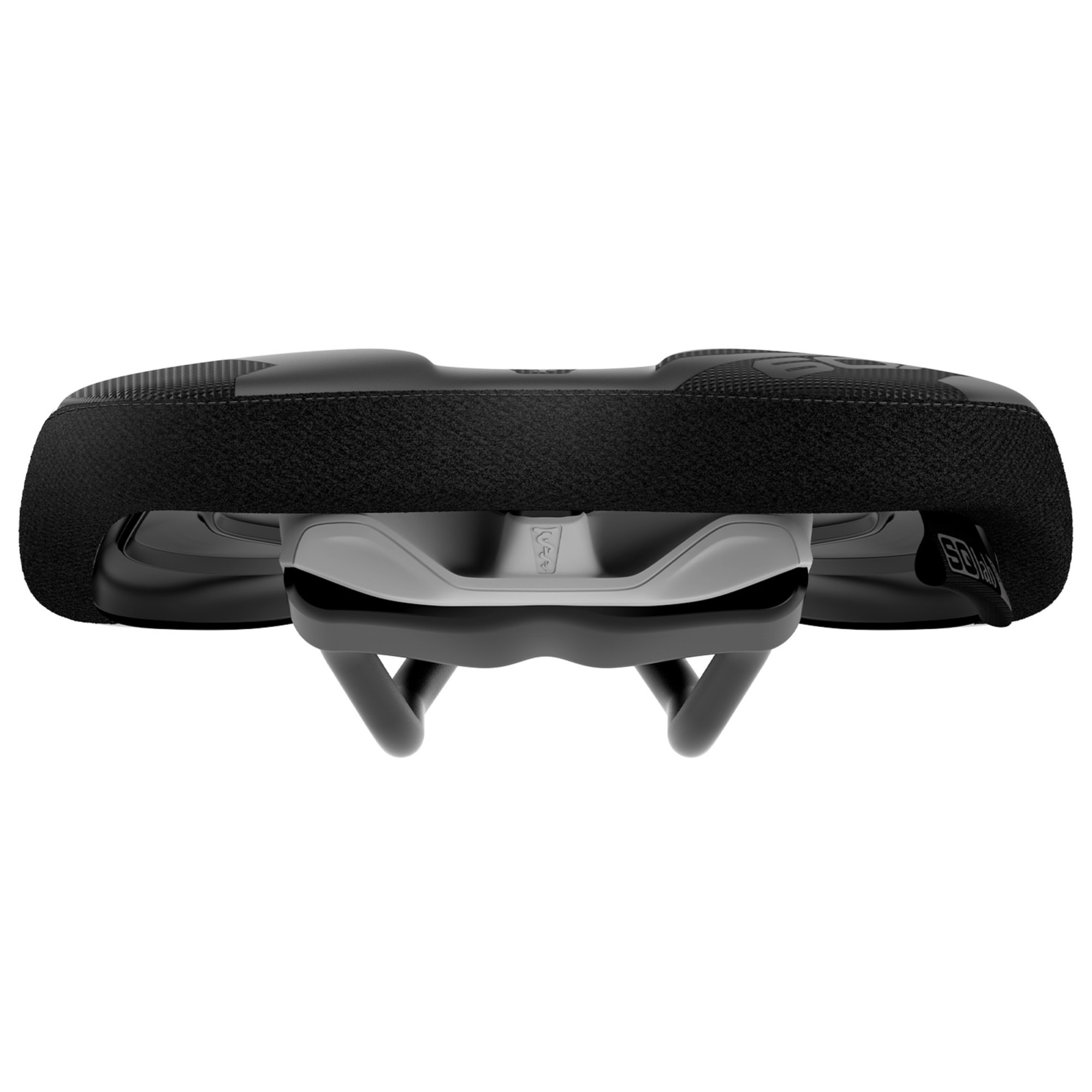

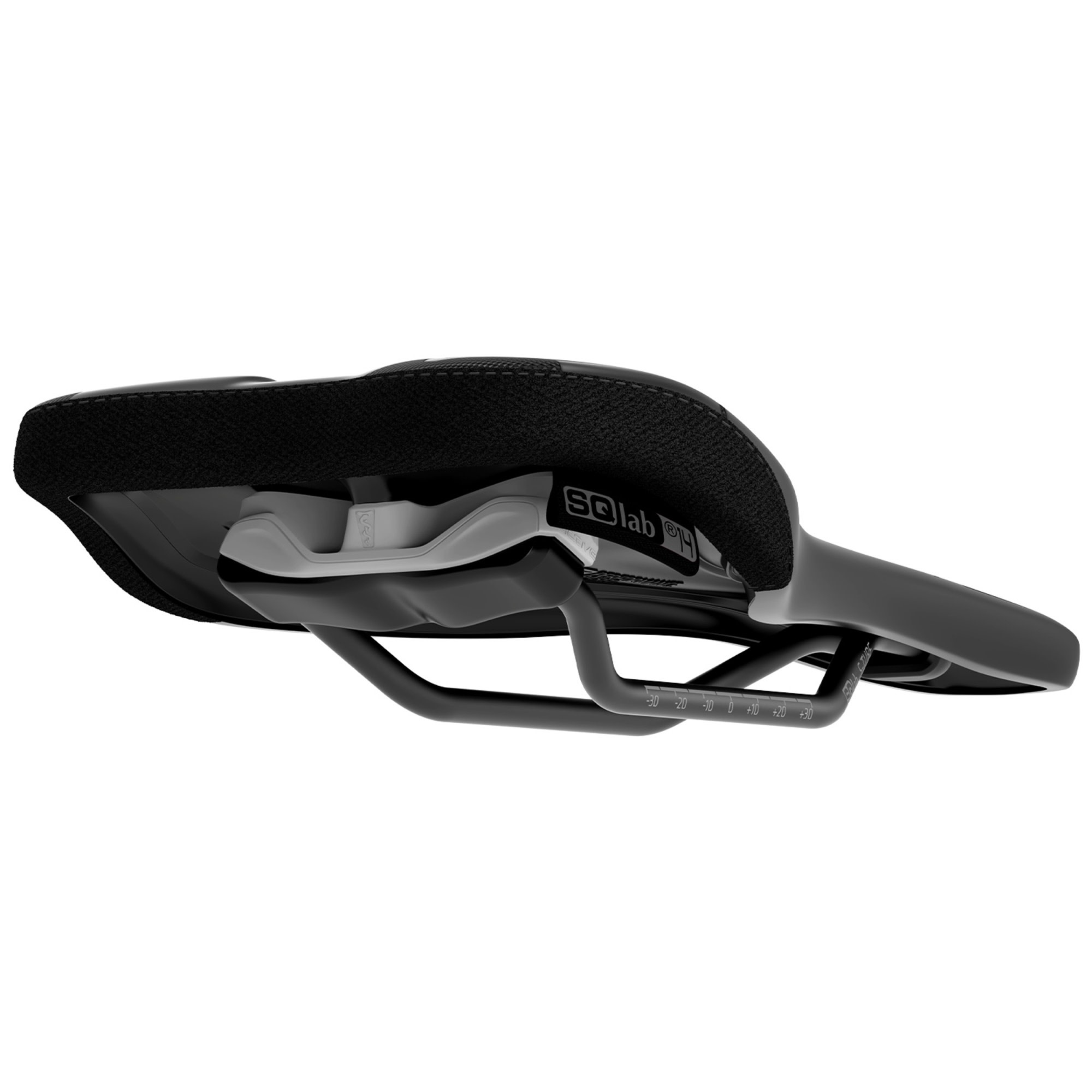

SQLab Saddle 6OX Ergowave active 2.1

SKU: 2447
$179.99
Excl. tax

The 6OX ERGOWAVE® is not only our bestseller, but also the most popular saddle in the trade press. In reader surveys, it makes SQlab repeatedly the most popular E-MTB saddle brand in Germany.

The rating of this product is 0 out of 5

(0)
On backorder


 Perfect Fit

The correct saddle width is a key for maximum performance.

Available widths in cm: 13, 14, 15, 16



More free space - less pressure

The proven, outstanding SQlab staged saddle shape with the saddle nose that dips below level also provides more freedom for the 6OX and less pressure, equally so for men and for women.



Pressure measurement SQlab 6OX

The pressure mapping diagram shows an optimal pressure distribution from a medical point of view on the sit bones and pubic bones. Almost no pressure is exerted on the perineal area.



Perfect hold

The SQlab saddle shape with the raised seat surface is already perfectly suited for riding uphill and also provides more power to the pedals on straights. Additionally, a special non-slip logo design ensures even more grip towards the back.



Gripdesign

The grip material on the raised stage provides additional hold towards the back.



Relief of the intervertebral discs

The SQlab active saddle technology means that the saddle follows the pedalling movement, which increases comfort, mobilises the intervertebral discs and minimises pressure on the sit bones.




Elastomere - hard, medium, softElastomere - hard, medium, soft

Saddle Setup

The SQlab active technology has not only  become lighter but also smoother and is additionally adjustable via elastomers in three degrees of hardness.



Technical specifications

ARTICLE NUMBER(S): 2447 / 2448 / 2449 / 2450

AREA OF USE/BICYCLE TYPE: MTB GRAVITY & E-PERFORMANCE

WEIGHT(S) IN G: APPROX. 262 / 267 / 272 / 277

LENGTH(S) IN MM: APPROX. 280

ACTIVE TECHNOLOGY: YES -SPORT

MOUNTING HEIGHT IN MM: APPROX. 49

SIZE(S) IN CM (EFFECTIVE SADDLE WIDTH): 13 / 14 / 15 / 16

MATERIAL RAILS: S-TUBE (LIGHT METAL ALLOY - HOLLOW)

MATERIAL BASE: GLASS FIBRE REINFORCED POLYAMIDE COMPOUND (PA12 + GF)

MATERIAL PADDING: SUPERLIGHT FOAM

MATERIAL COVER: MICROFIBRE

HARDNESS IN SQ-SHORE: 55

RELIEF OF PERINEAL AREA IN %: 72

MAXIMUM LOAD IN KG: 110

MAXIMUM TORQUE IN NM: 18

E-BIKE READY: YES

DIN/ASTM CATEGORIES: 5

GENDER: UNISEX

Description


The 6OX ERGOWAVE® is not only our bestseller, but also the most popular saddle in the trade press. In reader surveys, it makes SQlab repeatedly the most popular E-MTB saddle brand in Germany.

The ERGOWAVE® shape and the active system improve the saddle in many details and make it unbeatable on the e-bike in terms of relief, comfort, technology. In particular, the important support to the rear has been increased.

+ Comfort

+ Relief

+ Support

+ Lighter weight

+ Perfect for the E-MTB, but also for the All-Mountain and Enduro Bike

The wave shaped 6OX profile which contours from the rear to the front offers a perfect form-fit shape for most sit bones. The raised back section provides more rearward support and ensures efficient power transmission. The grip material on the raised back provides additional support to the rear. In addition, the saddle cover is robust, especially at the edges.

The level and lowered saddle nose applies less pressure to the sensitive areas of men and women alike. For an even better pressure relief, especially on long technical climbs, the saddle nose of the 6OX became a little bit wider, but just as flat and with largest possible surface area. The padding was designed for the specific needs on the E-MTB with perfect dampening properties for rough off-road terrain.



The active system has not only become lighter, but also much smoother. This increases comfort for the sit bones as well as relieving pressure on the intervertebral discs. In particular, the mobilization of the intervertebral discs is now clearly noticeable. The active-movement is even more adjustable in the

new models, as the elastomers have become smaller and lighter.
