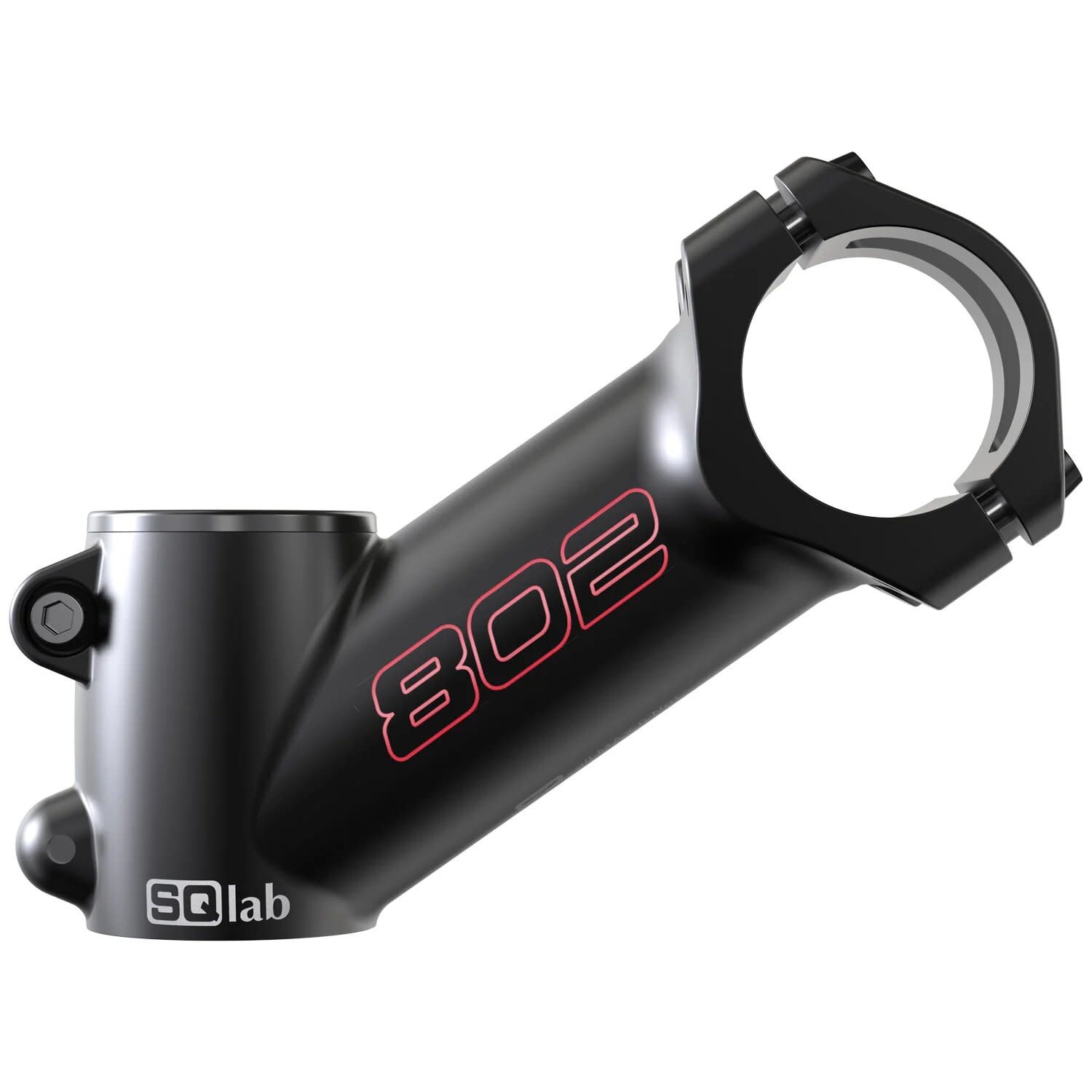

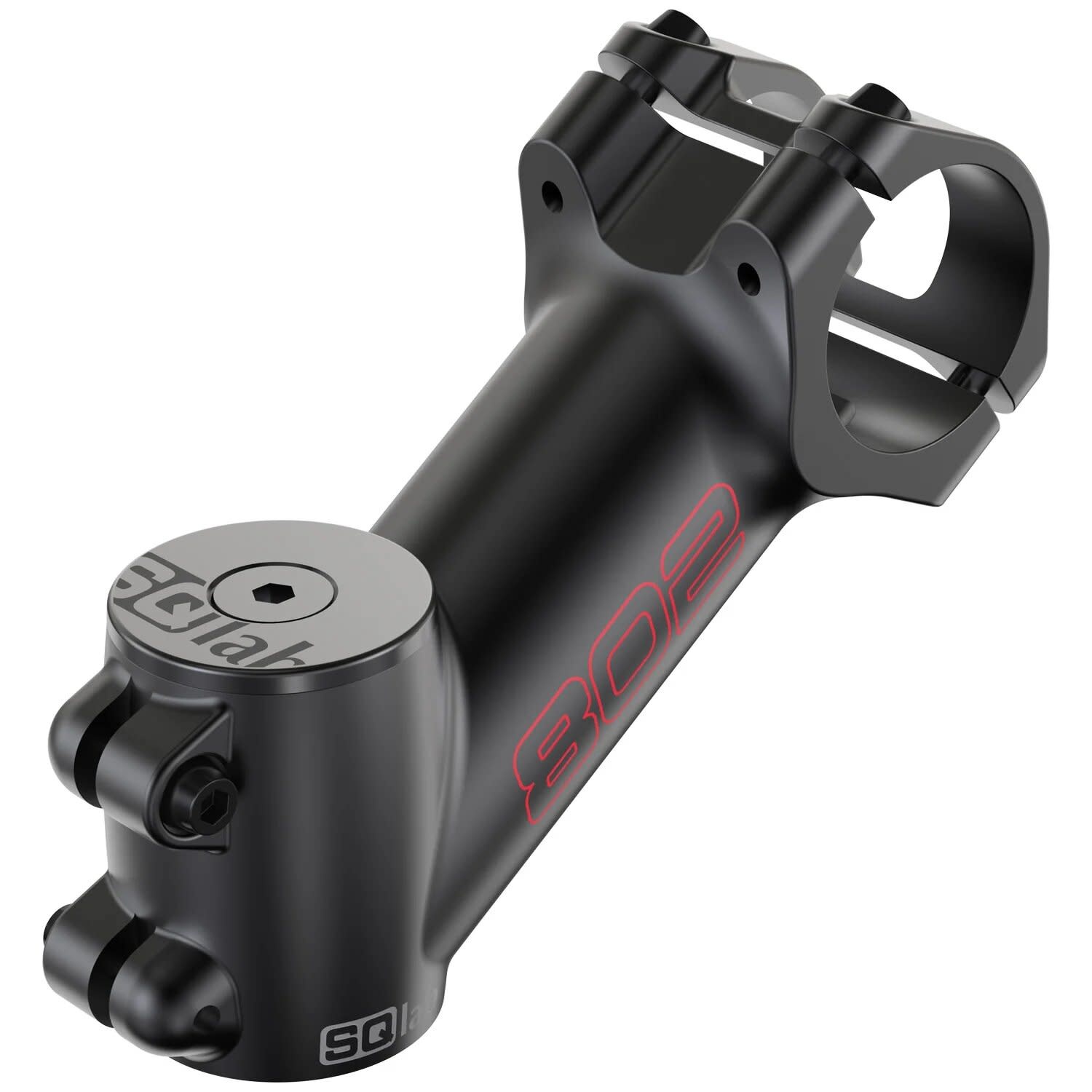

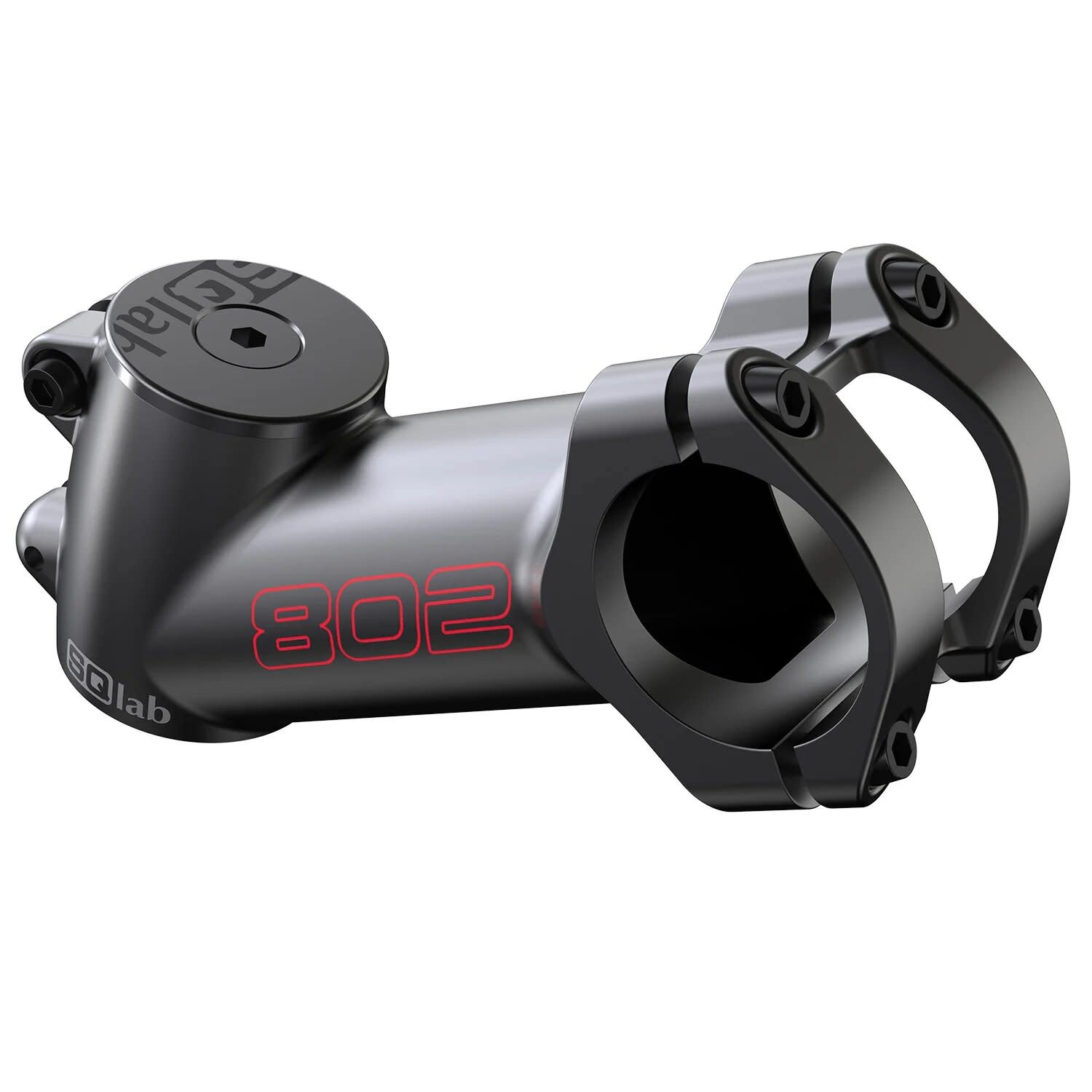

High end 35 ° stem for 31.8 oversize handlebars, matching the 302 trekking handlebars range. The pictured SQlab Ahead Cap 1 1/8" and countersunk screw is not included in the scope of delivery.
High end 35 ° stem for 31.8 oversize handlebars, matching the 302 trekking handlebars range. The pictured SQlab Ahead Cap 1 1/8" and countersunk screw is not included in the scope of delivery.
Available in lengths 70, 90 and 100 mm.
TECHNICAL SPECIFICATIONS
ARTICLE NUMBER(S): 2220 / 2221 / 2222
AREA OF USE/BICYCLE TYPE: TREKKING
WIEGHT(S) IN G: APPROX. 135 / 145 / 149
MATERIAL: ALUMINUM 6061
MATERIAL SCREWS: STEEL
STEM ANGLE IN °: +35
LENGTH(S) IN MM: 70 / 90 / 100
REACH IN MM: SEE INSTRUCTIONS
RISE IN MM: SEE INSTRUCTIONS
CLAMP DIAMETER HANDLEBAR IN MM: 31.8
CLAMP WIDTH HANDLEBAR IN MM: 42
CLAMP DIAMETER HEAD TUBE IN MM: 28.6 (1 1/8")
CLAMP HEIGHT HEAD TUBE IN MM: -
MINIMUM HEAD TUBE OVERLAP IN MM: 35
MAXIMUM TORQUE IN NM: 6
E-BIKE READY: YES
