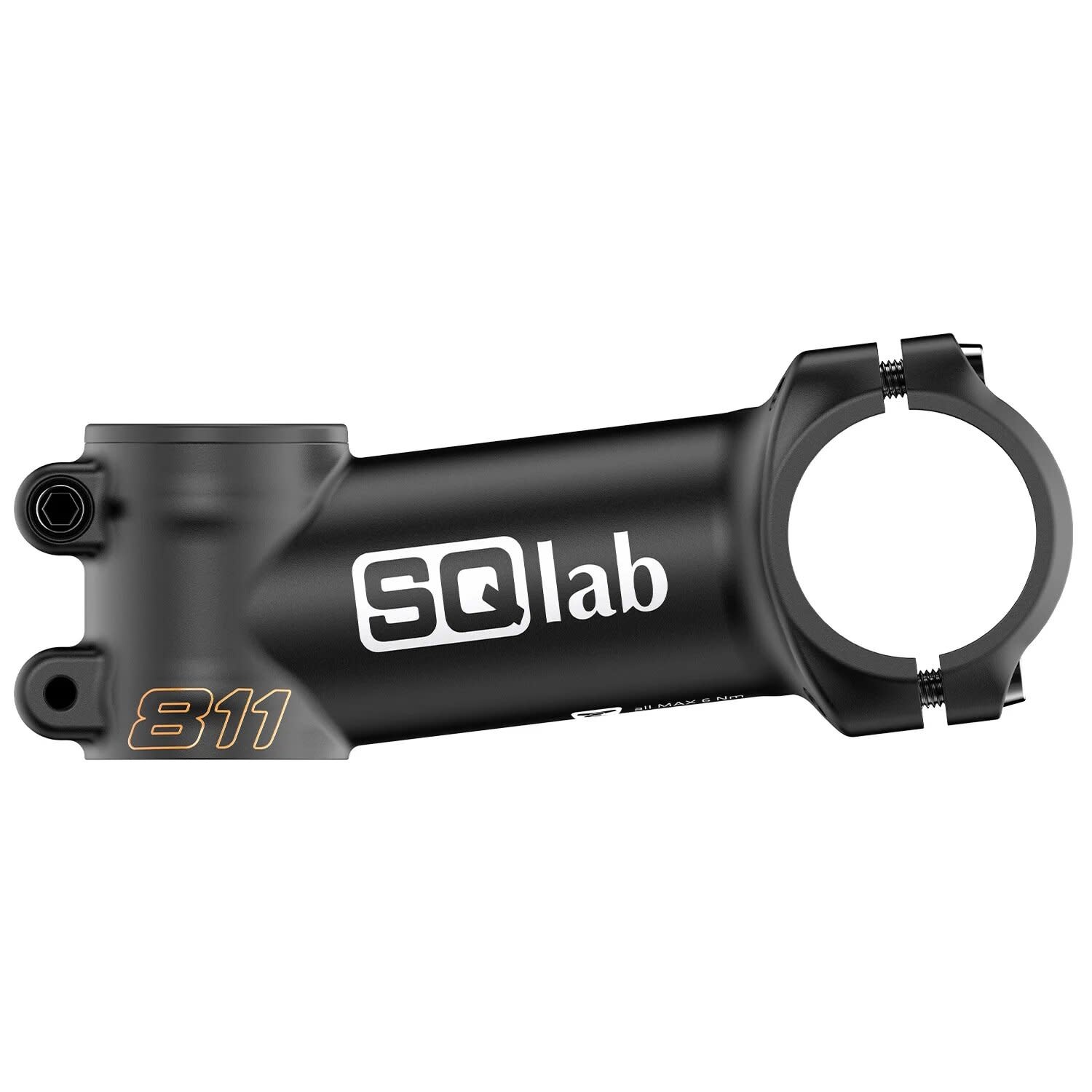

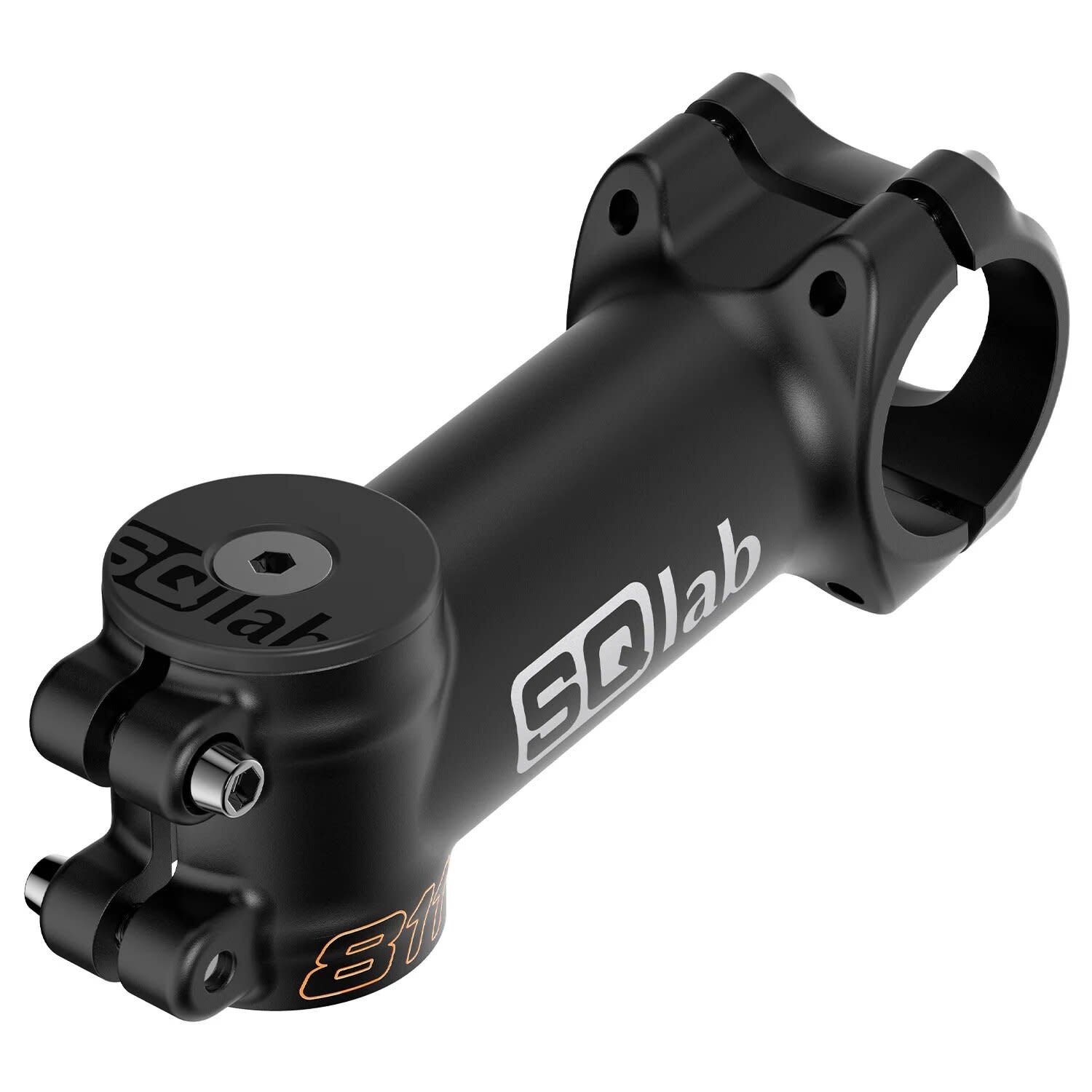

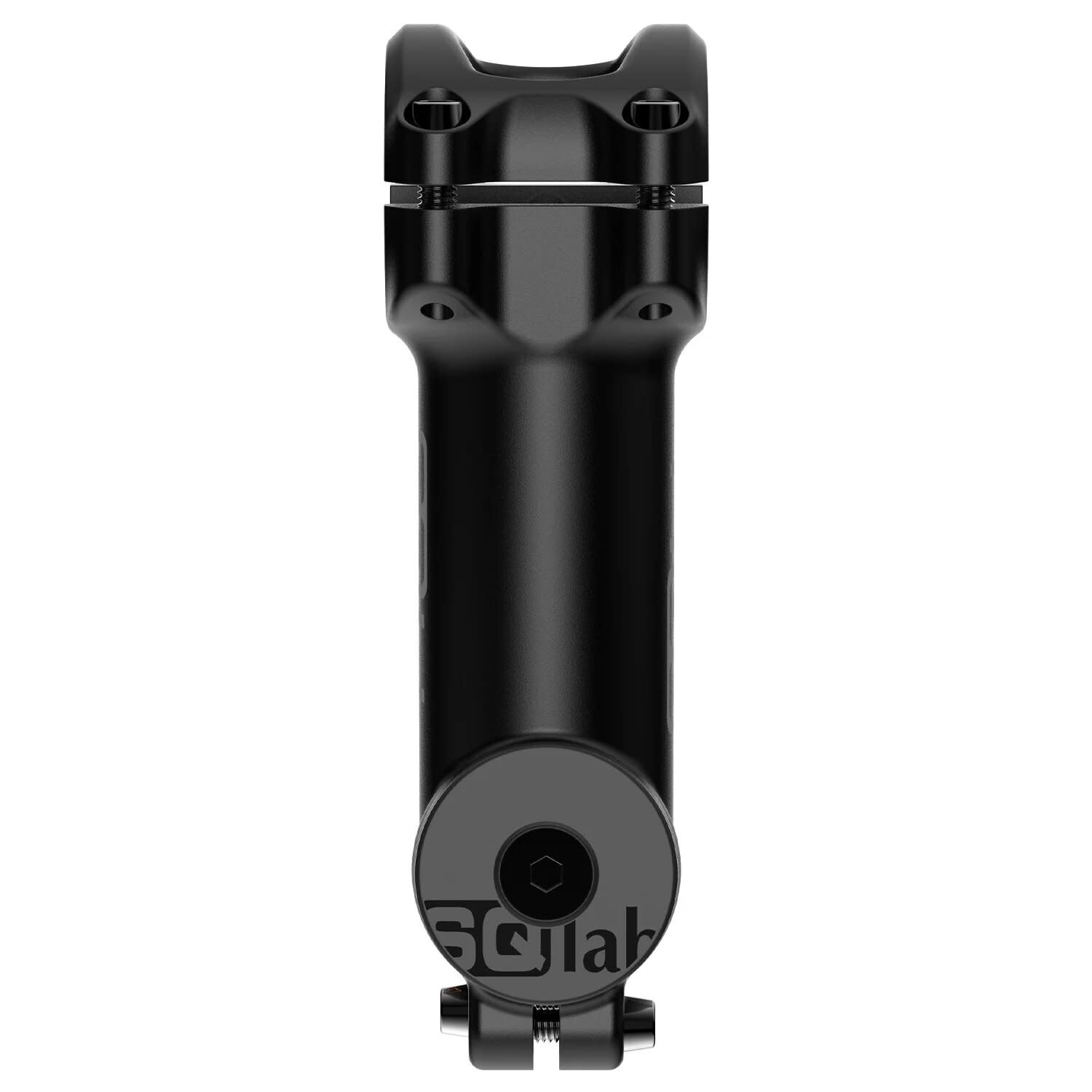

High end 7° stem for 31.8 handlebars, designed for use on mountain bikes falling under the categories tour, cross-country/marathon, all mountain and enduro, matching the 311 range of handlebars. Available in lengths 70, 90 and 100 mm. The stem...
Description at a glance:
High end 7° stem for 31.8 handlebars, designed for use on mountain bikes falling under the categories tour, cross-country/marathon, all mountain and enduro, matching the 311 range of handlebars. Available in lengths 70, 90 and 100 mm. The stem may not be used at bikeparks and for downhill-bikes.
Technical specifications at a glance:
ARTICLE NUMBER(S): 2434 / 2435 / 2436
AREA OF USE/BICYCLE TYPE: MTB TECH & TRAIL
WEIGHT(S) IN G: APPROX. 125 / 140 / 150
MATERIAL: ALUMINIUM
MATERIAL SCREWS: STEEL
STEM ANGLE IN °: +7
LENGTH(S) IN MM: 70 / 90 / 100
CLAMP DIAMETER HANDLEBAR IN MM: 31,8
CLAMP WIDTH HANDLEBAR IN MM: 40
CLAMP DIAMETER HEAD TUBE IN MM: 28,6
CLAMP HEIGHT HEAD TUBE IN MM: 40
REACH IN MM: 69,6 / 89,5 / 99,4
MINIMUM HEAD TUBE OVERLAP IN MM: 35
MAXIMUM TORQUE IN NM: 6
E-BIKE READY: YES
DIN/ASTM CATEGORIES: 4
