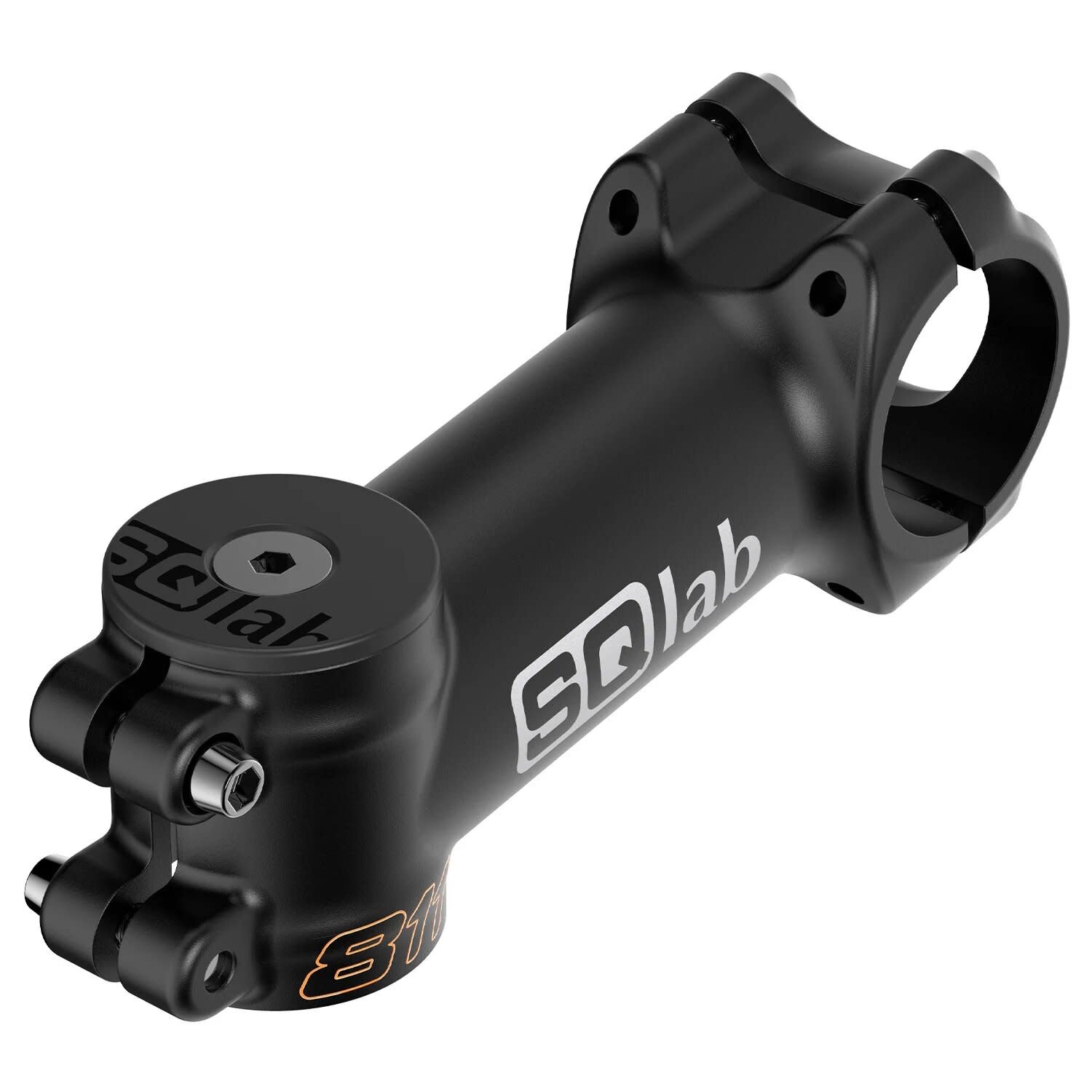

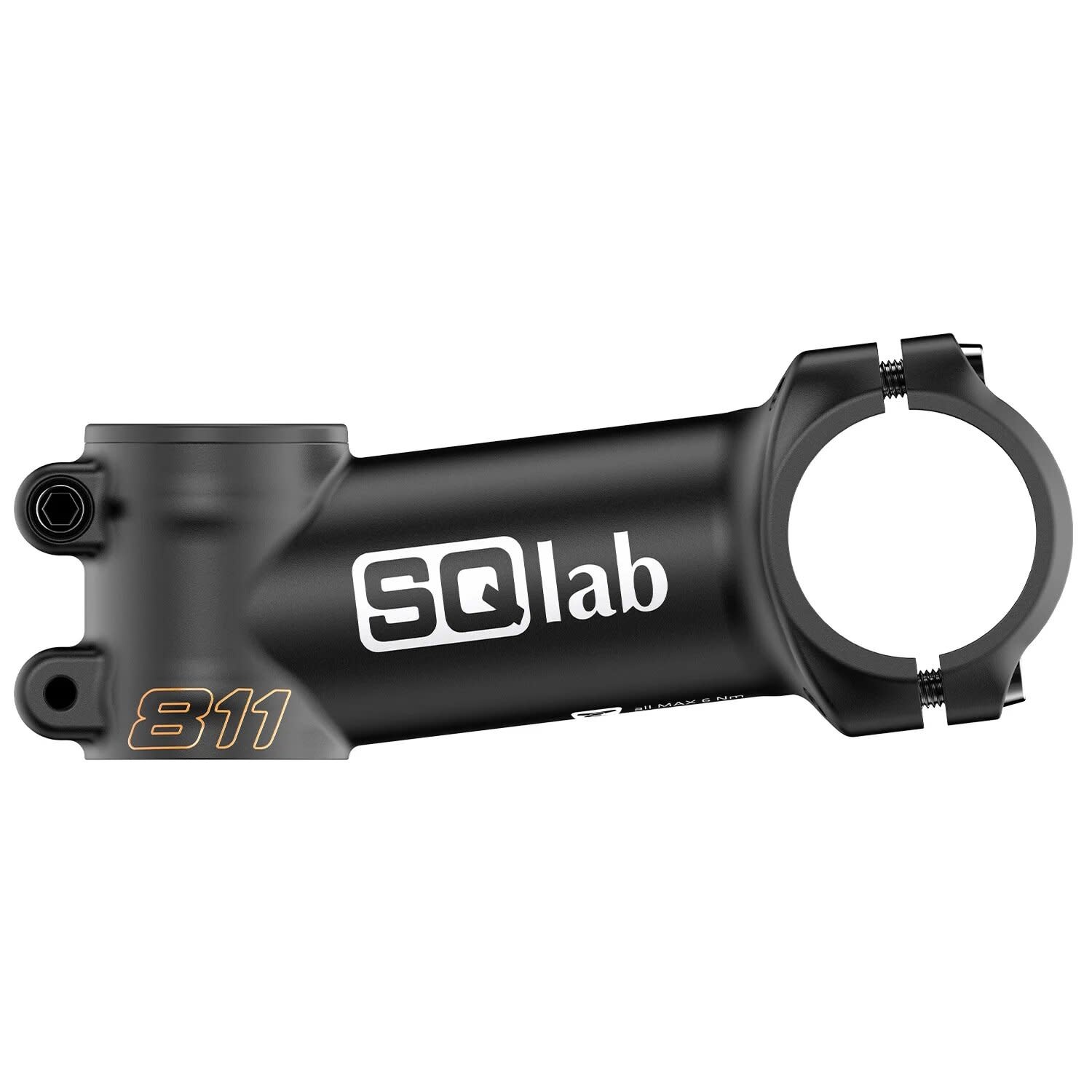

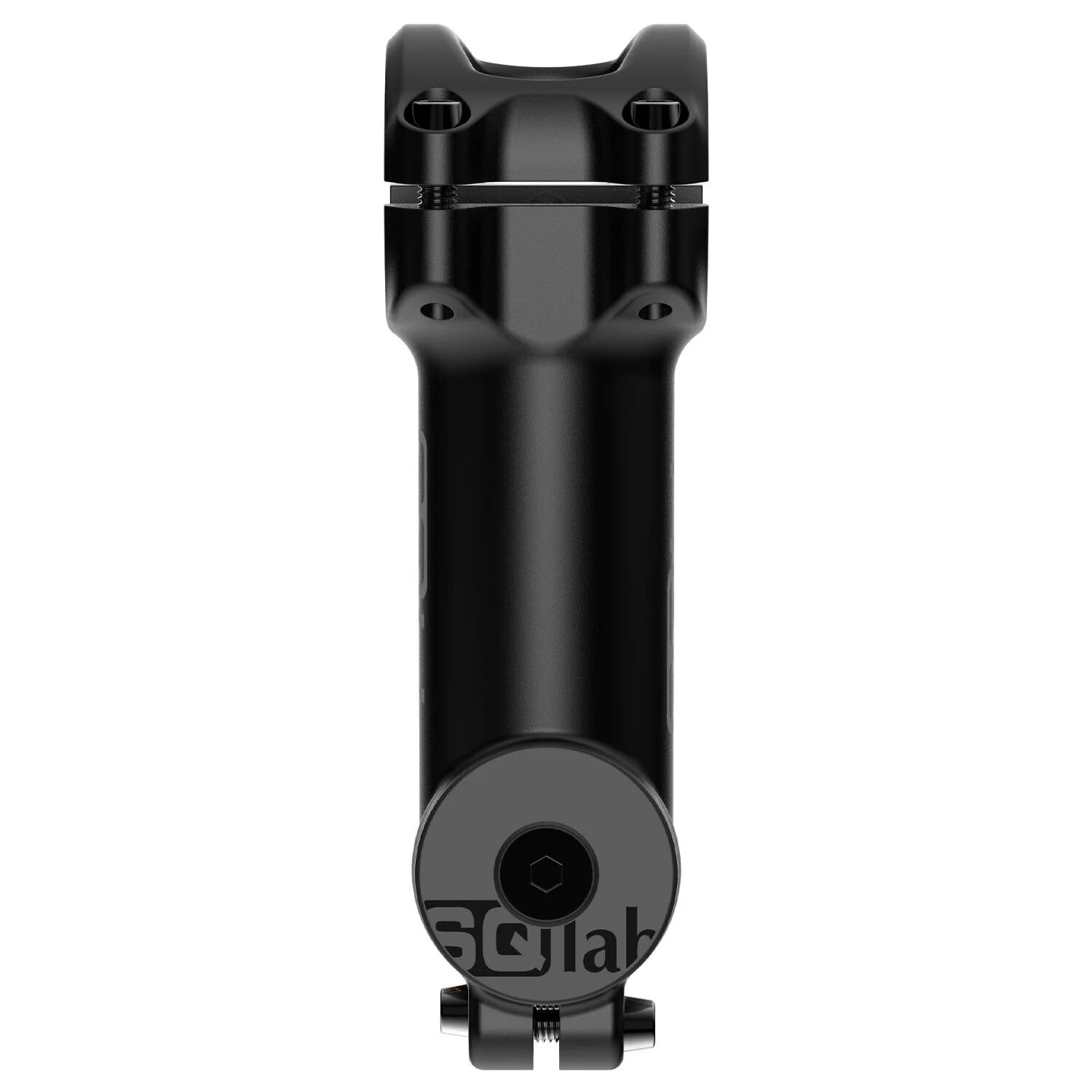

High end 7° stem for 31.8 handlebars, designed for use on mountain bikes falling under the categories tour, cross-country/marathon, all mountain and enduro, matching the 311 range of handlebars. Available in lengths 70, 90 and 100 mm.
High end 7° stem for 31.8 handlebars, designed for use on mountain bikes falling under the categories tour, cross-country/marathon, all mountain and enduro, matching the 311 range of handlebars. Available in lengths 70, 90 and 100 mm.
The stem may not be used at bikeparks and for downhill-bikes.
The pictured SQlab Ahead Cap 1 1/8" and countersunk screw is not included in the scope of delivery.
TECHNICAL SPECIFICATIONS
ARTICLE NUMBER(S): 2434 / 2435 / 2436
AREA OF USE/BICYCLE TYPE: MTB TECH & TRAIL
WIEGHT(S) IN G: APPROX. 125 / 140 / 150
MATERIAL: ALUMINUM 6061
MATERIAL SCREWS: STEEL
STEM ANGLE IN °: +7
LENGTH(S) IN MM: 70 / 90 / 100
REACH IN MM: 69,6 / 89.5 / 99.4
RISE IN MM: SEE INSTRUCTIONS
CLAMP DIAMETER HANDLEBAR IN MM: 31.8
CLAMP WIDTH HANDLEBAR IN MM: 40
CLAMP DIAMETER HEAD TUBE IN MM: 28.6 (1 1/8")
CLAMP HEIGHT HEAD TUBE IN MM: -
MINIMUM HEAD TUBE OVERLAP IN MM: 35
MAXIMUM TORQUE IN NM: 6
E-BIKE READY: YES
DIN / ASTM CATEGORIES: 4
