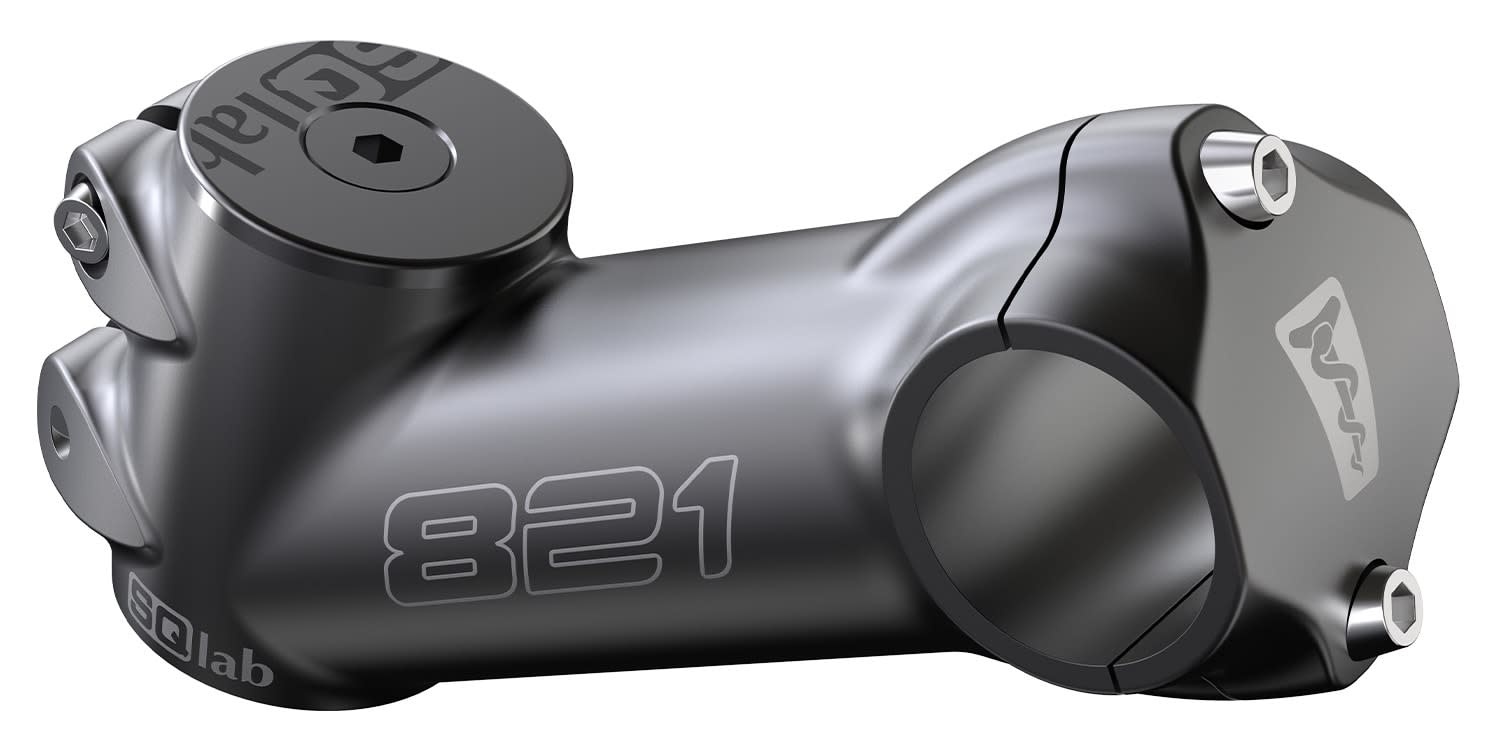

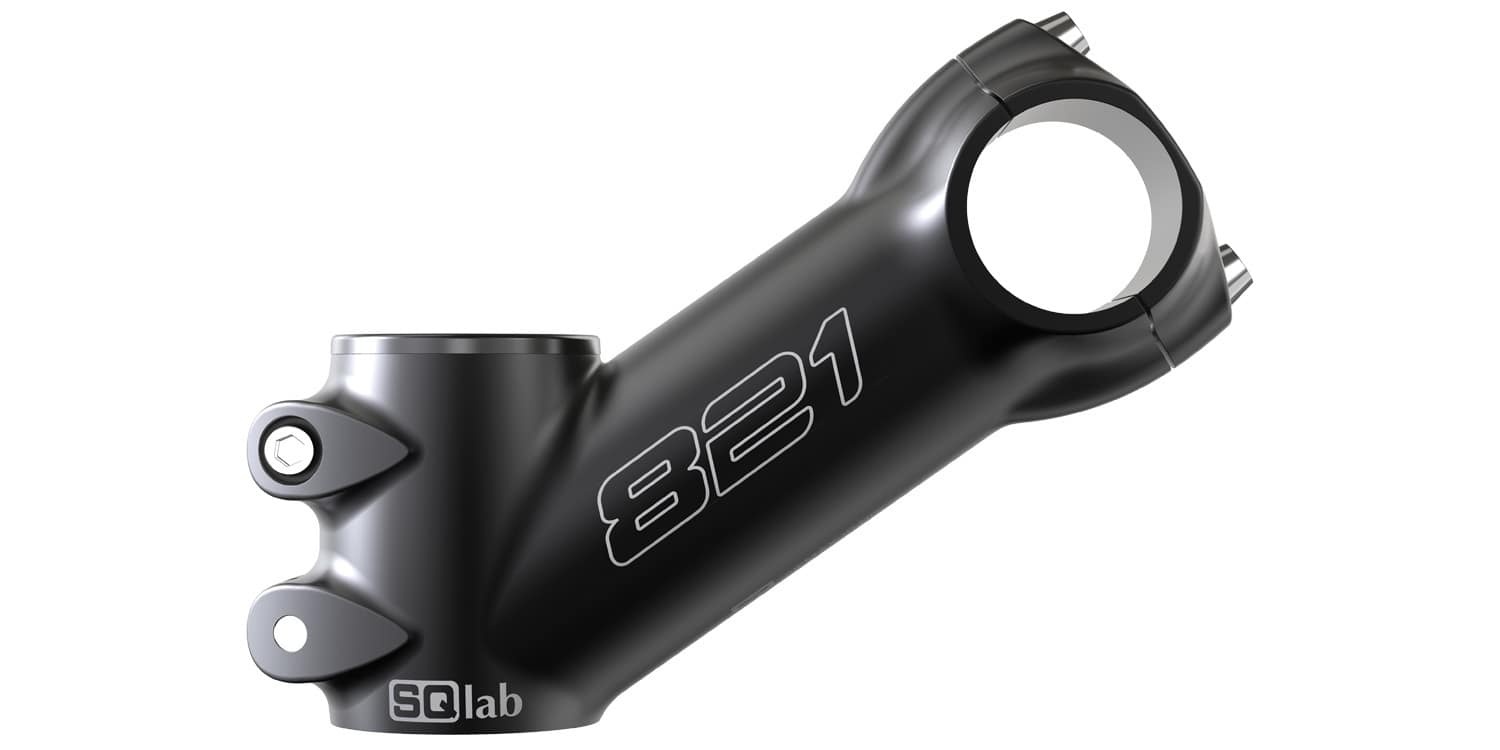

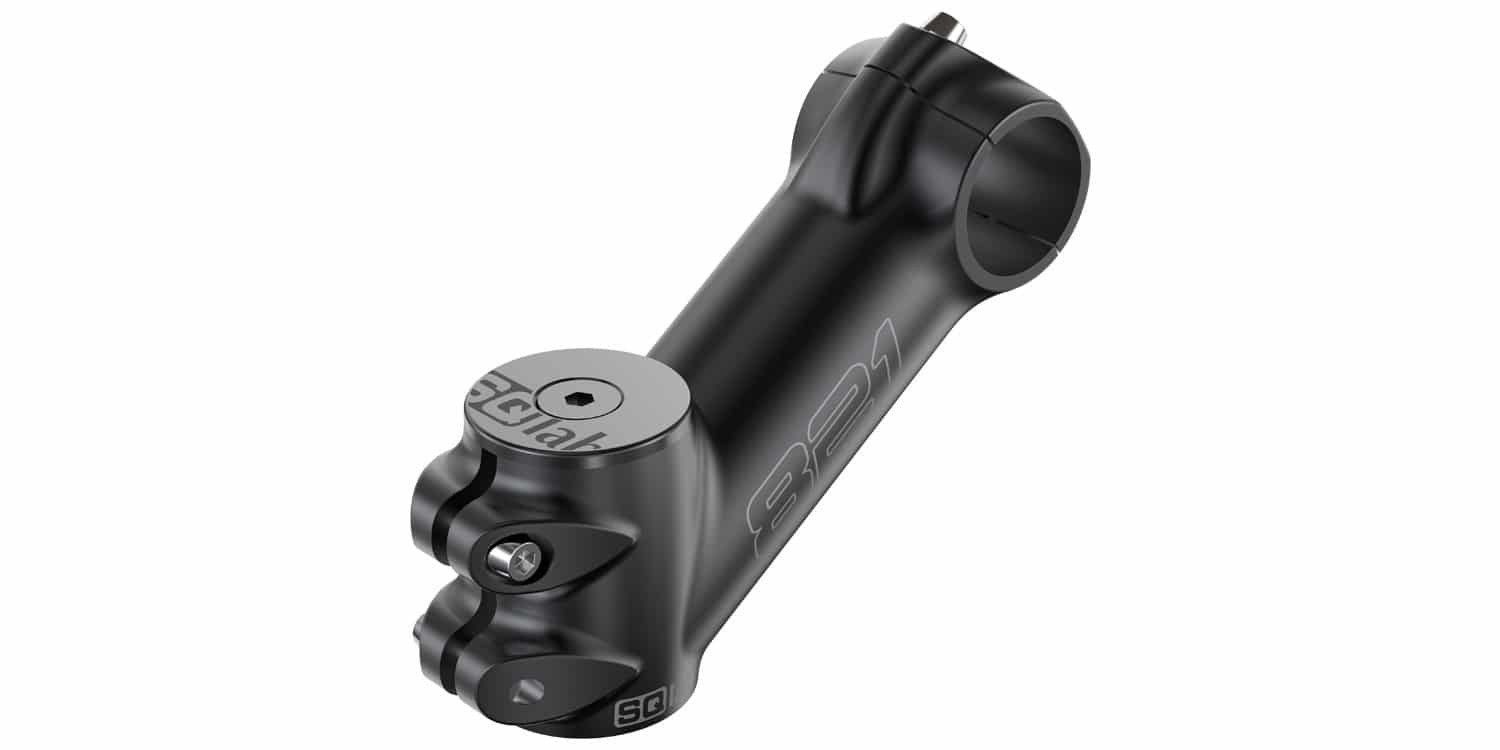

High end 35° stem for 25.4 handlebars, matching the 321 city/comfort handlebar range. The pictured SQlab Ahead Cap 1 1/8" and countersunk screw is not included in the scope of delivery. Available in lengths 70, 90 and 100 mm...
Description at a glance:
High end 35° stem for 25.4 handlebars, matching the 321 city/comfort handlebar range. The pictured SQlab Ahead Cap 1 1/8" and countersunk screw is not included in the scope of delivery. Available in lengths 70, 90 and 100 mm.
Technical specifications at a glance:
ARTICLE NUMBER(S): 2223 / 2224 / 2225
AREA OF USE/BICYCLE TYPE: CITY
WEIGHT(S) IN G: APPROX. 144 / 149 / 159
MATERIAL: ALUMINIUM 6061
MATERIAL SCREWS: STEEL STEM ANGLE IN °+35°
LENGTH(S) IN MM: 70 / 90 / 100
CLAMP DIAMETER HANDLEBAR IN MM: 25,4
CLAMP WIDTH HANDLEBAR IN MM: 37
CLAMP DIAMETER HEAD TUBE IN MM: 28,6
CLAMP HEIGHT HEAD TUBE IN MM: 45
RISE IN MM: SEE INSTRUCTION
REACH IN MM: SEE INSTRUCTION
MINIMUM HEAD TUBE OVERLAP IN MM: 35
MAXIMUM TORQUE IN NM: 10
E-BIKE READY: NO
DIN/ASTM CATEGORIES: 1
