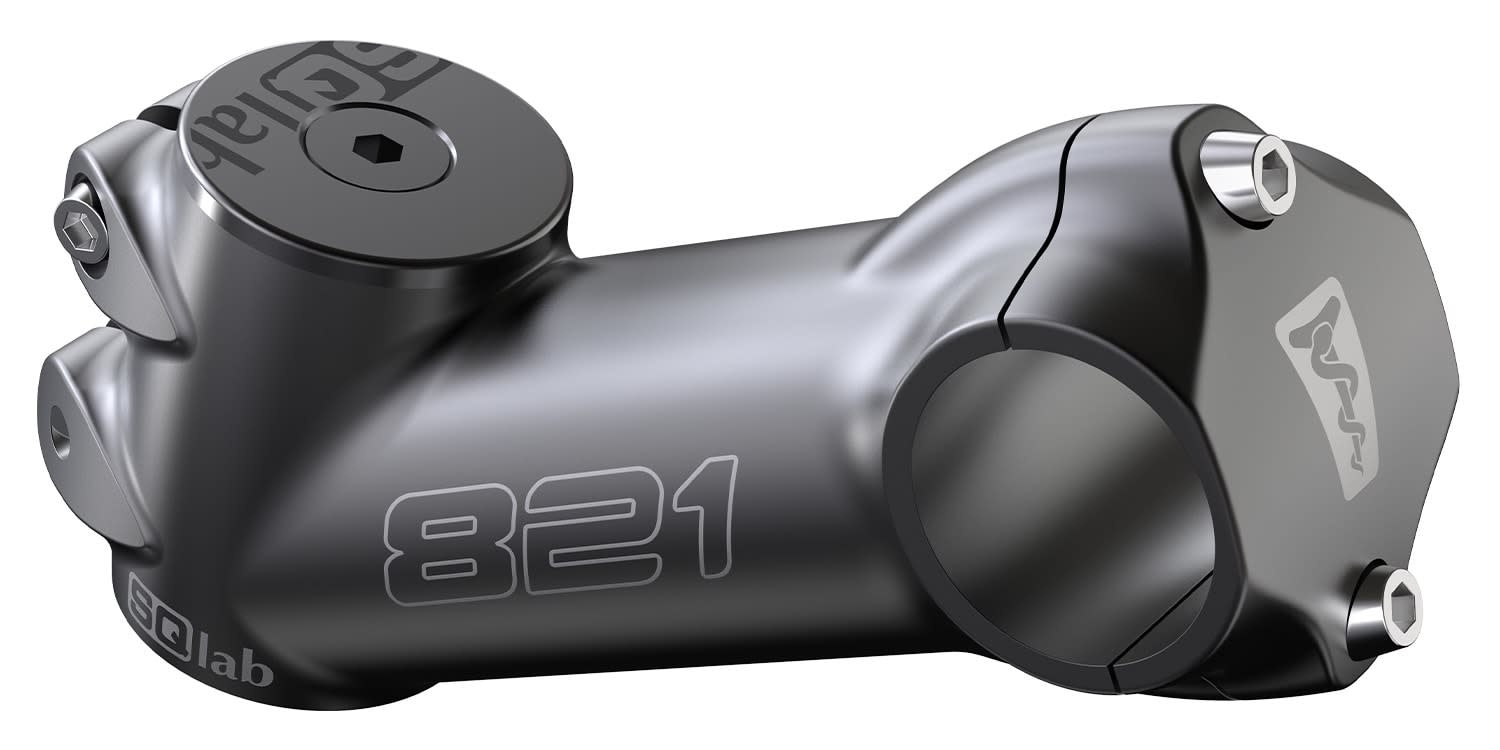

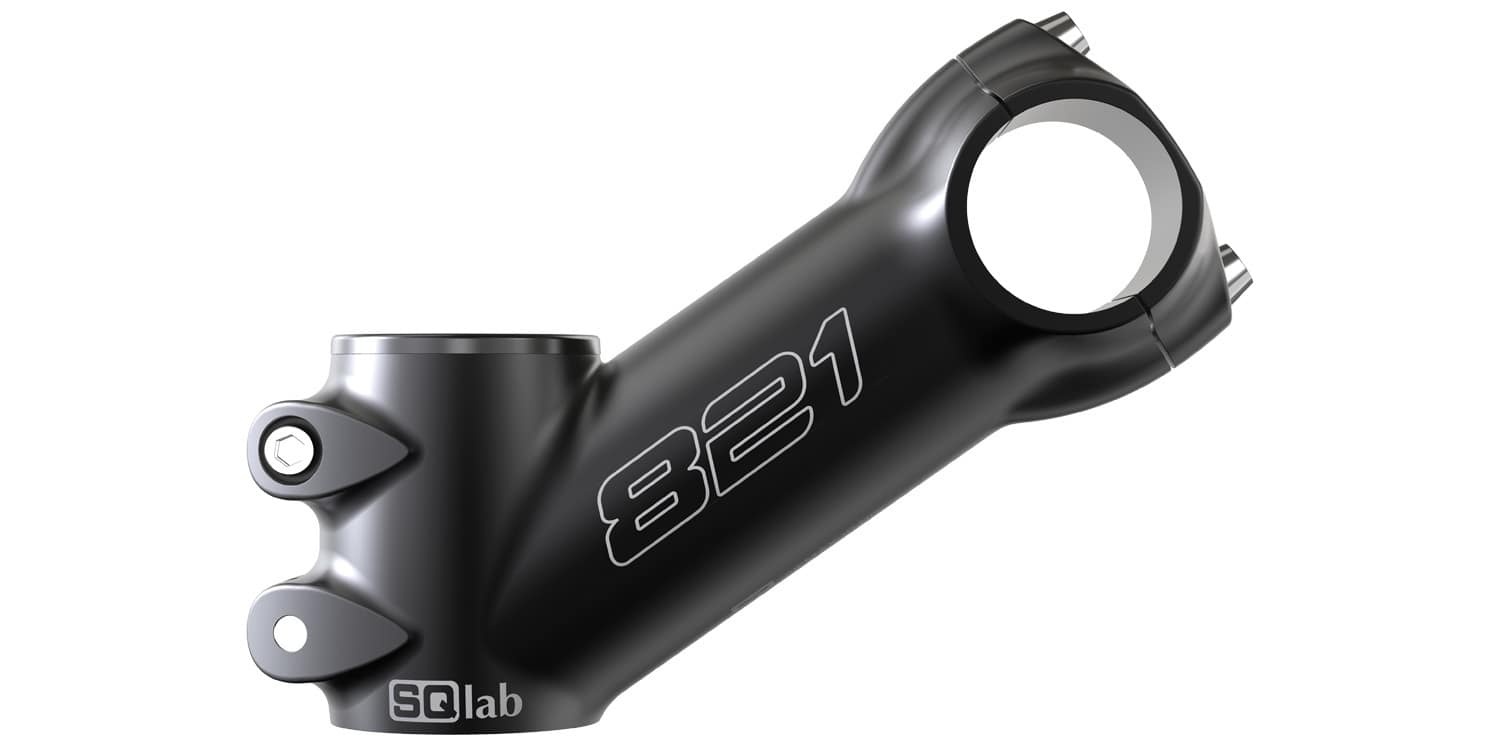

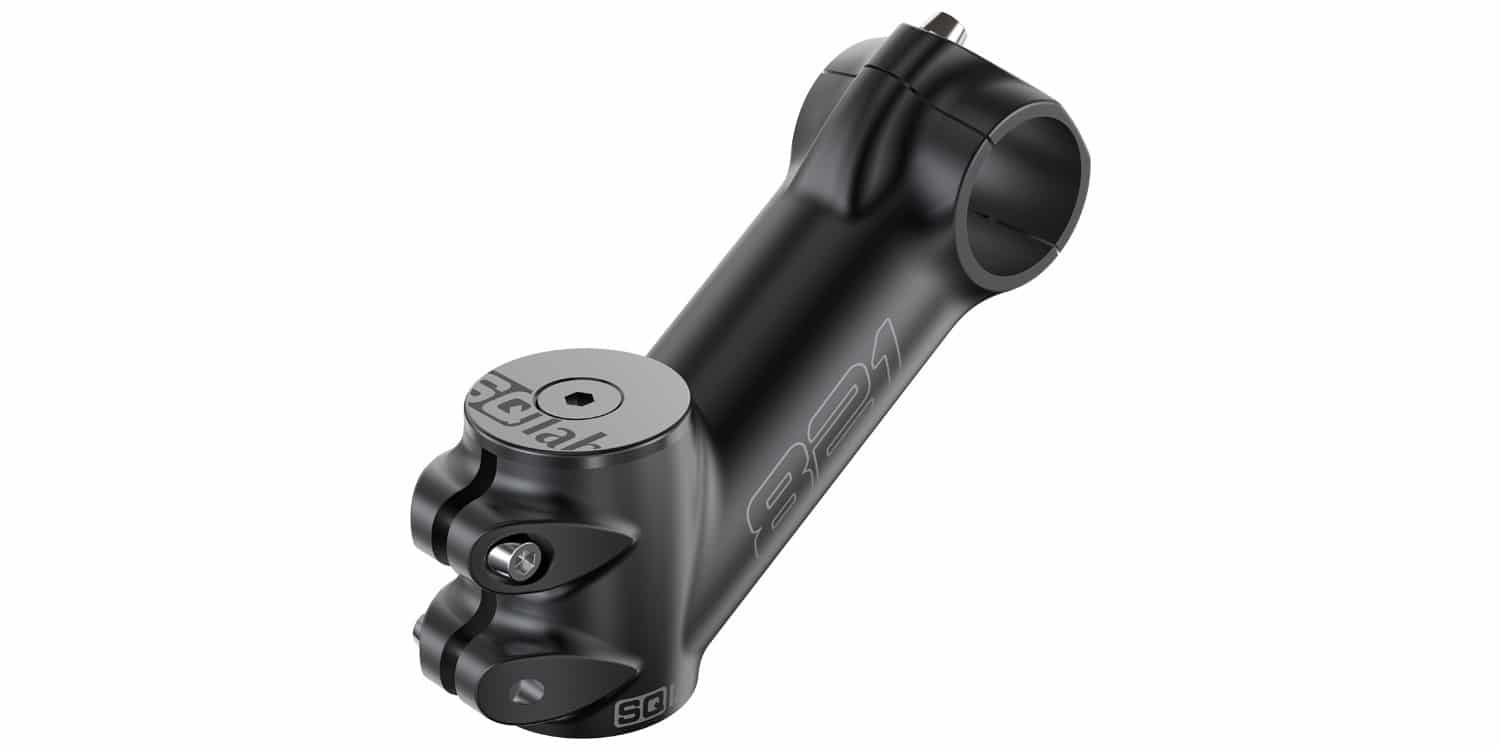

High end 35° stem for 25.4 handlebars, matching the 321 city/comfort handlebar range. The pictured SQlab Ahead Cap 1 1/8" and countersunk screw is not included in the scope of delivery.
High end 35° stem for 25.4 handlebars, matching the 321 city/comfort handlebar range. The pictured SQlab Ahead Cap 1 1/8" and countersunk screw is not included in the scope of delivery.
Available in lengths 70, 90 and 100 mm.
TECHNICAL SPECIFICATIONS
ARTICLE NUMBER(S): 2223 / 2224 / 2225
AREA OF USE/BICYCLE TYPE: CITY
WIEGHT(S) IN G: APPROX. 144 / 149 / 159
MATERIAL: ALUMINUM 6061
MATERIAL SCREWS: STEEL
STEM ANGLE IN °: +35°
LENGTH(S) IN MM: 70 / 90 / 100
CLAMP DIAMETER HANDLEBAR IN MM: 25,4
CLAMP WIDTH HANDLEBAR IN MM: 37
CLAMP DIAMETER HEAD TUBE IN MM: 28,6
CLAMP HEIGHT HEAD TUBE IN MM: 45
REACH IN MM: SEE INSTRUCTION
RISE IN MM: SEE INSTRUCTIONS
MINIMUM HEAD TUBE OVERLAP IN MM: 35
MAXIMUM TORQUE IN NM: 10
E-BIKE READY: NO
DIN / ASTM CATEGORIES: 1
