Light, stable and withstands the force of the handlebars. If a handlebar stem were to evolve across many generations like nature’s plants and continuously adapt and perfect itself over a very long period of time, then it would probably look like...
Description at a glance:

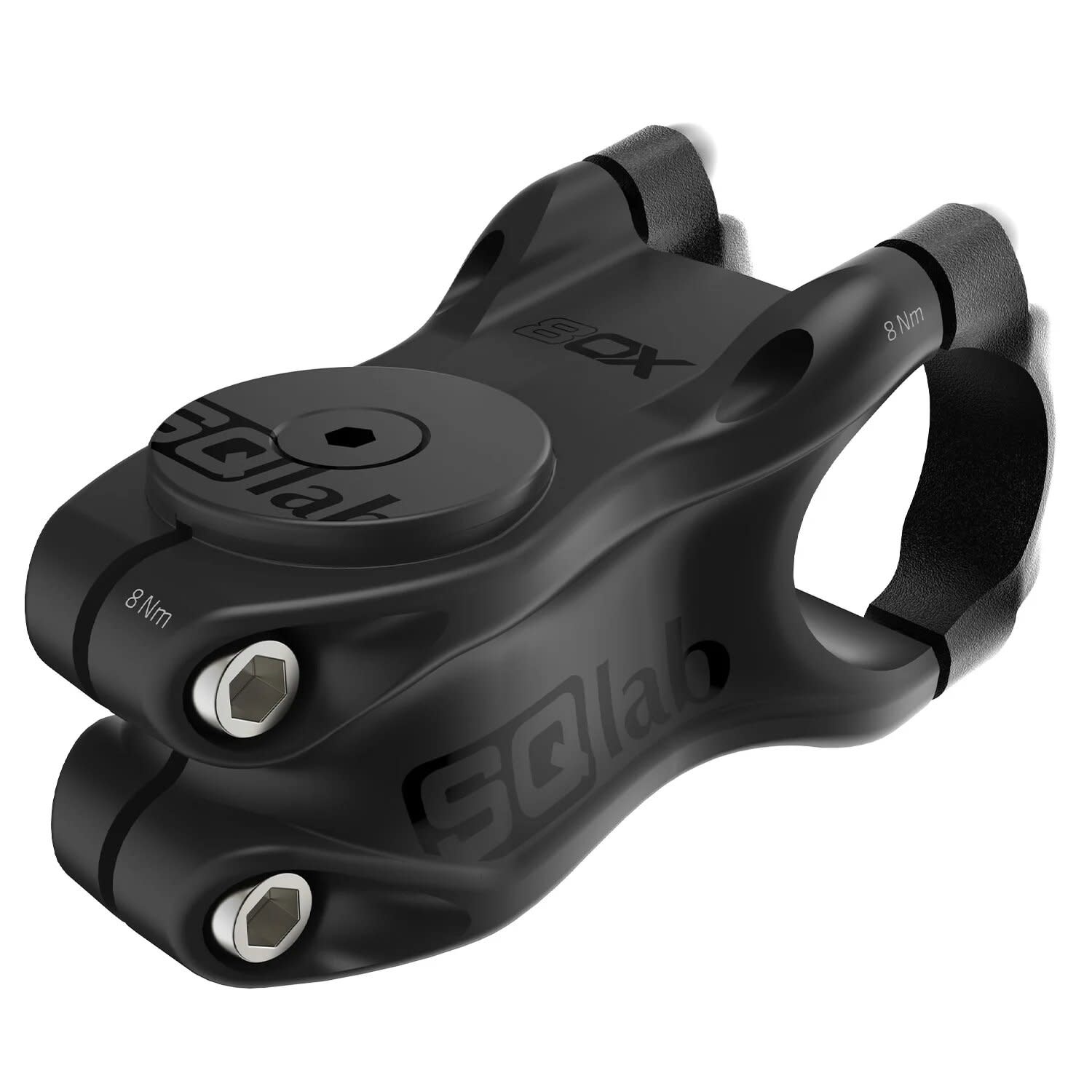

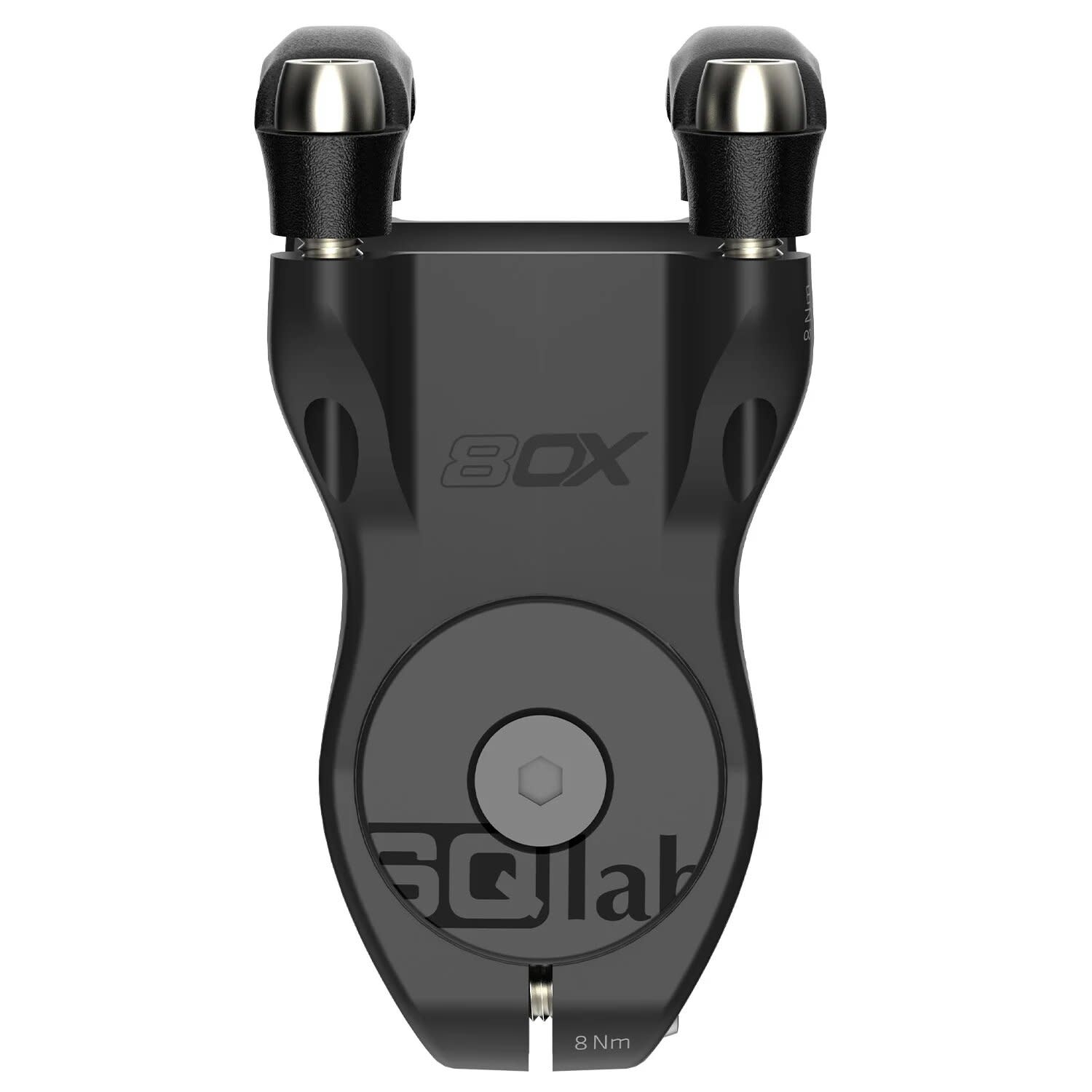

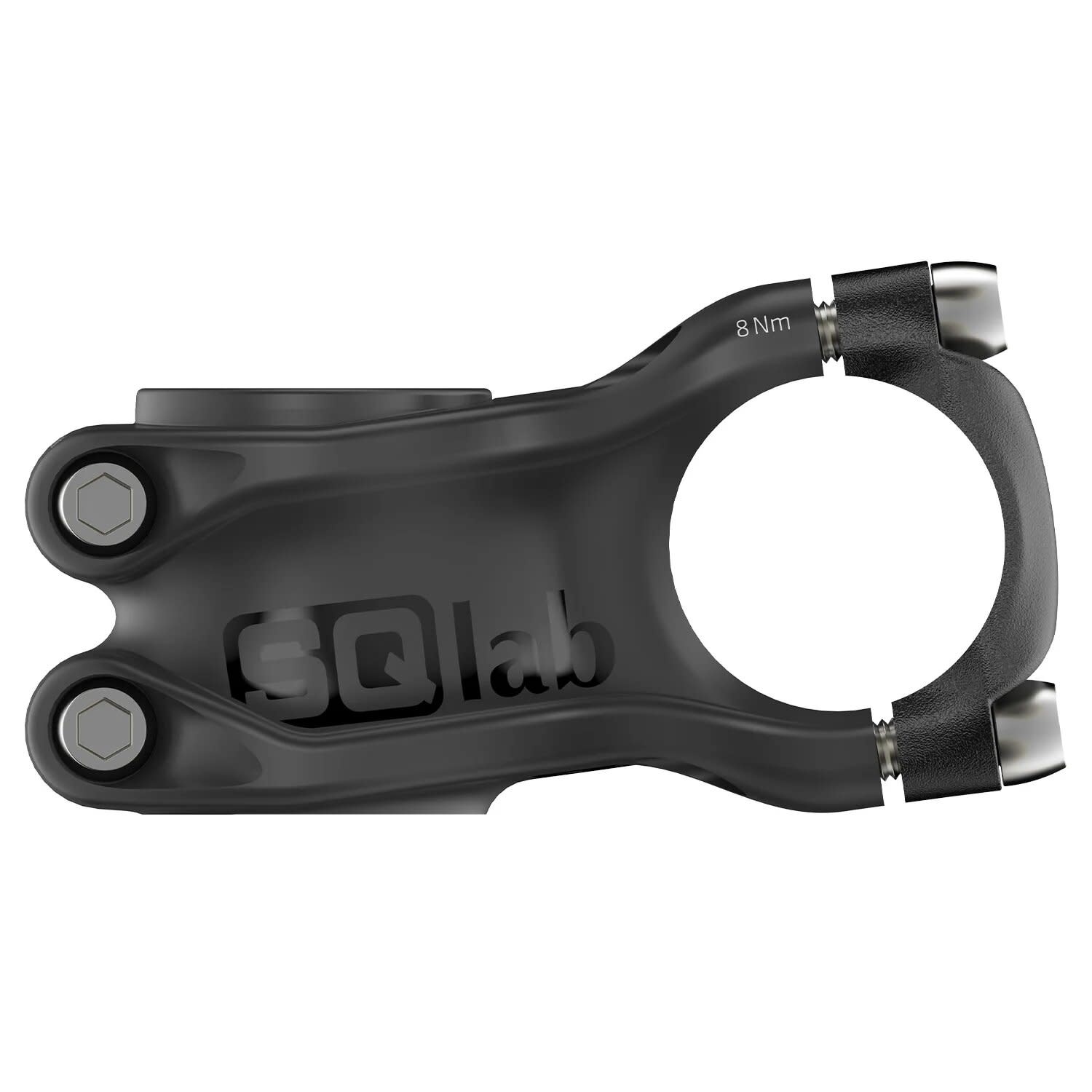

Light, stable and withstands the force of the handlebars. If a handlebar stem were to evolve across many generations like nature’s plants and continuously adapt and perfect itself over a very long period of time, then it would probably look like this. The 8OX ltd. is equipped with Titanium screws for clamping the stem to the steerer tube.
Technical specifications at a glance:
ARTICLE NUMBER(S): 2314
AREA OF USE/BICYCLE TYPE: MTB GRAVITY & E-PERFORMANCE
WEIGHT(S) IN G: APPROX. 128
MATERIAL: ALUMINIUM 7050
MATERIAL SCREWSTITAN STEM ANGLE IN °: +6
LENGTH(S) IN MM: 35, 50, 60, 70, 80, 90
CLAMP DIAMETER HANDLEBAR IN MM: 31,8
CLAMP WIDTH HANDLEBAR IN MM: 50
CLAMP DIAMETER HEAD TUBE IN MM: 28,6
CLAMP HEIGHT HEAD TUBE IN MM: 39
RISE IN MM: 3,7 / 5,2 / 6,3 / 7,3 / 8,4 / 9,4 / 10,5 / 11,5 / 12,5
REACH IN MM: 34,8 / 49,7 / 59,7 / 69,6 / 79,6 / 89,5 / 99,5 / 109,4 / 119,3
MINIMUM HEAD TUBE OVERLAP IN MM: 32
MAXIMUM TORQUE IN NM: 8
E-BIKE READY: YES
DIN/ASTM CATEGORIES: 5
