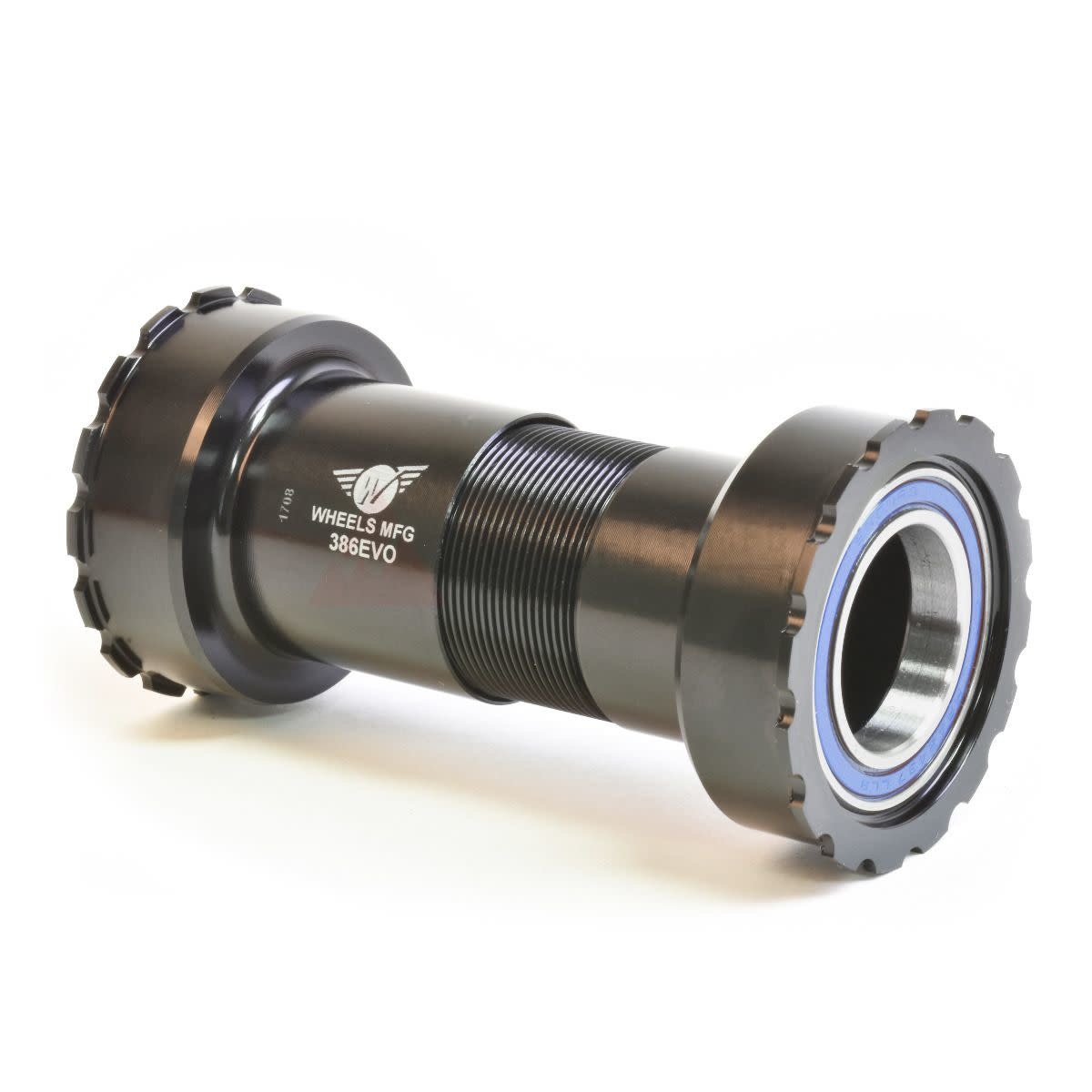

Thread together BB for 386EVO frames and 24mm diameter spindle cranks. Machined aluminum cups thread together for stability, increased bearing life, and simple installation and maintenance.

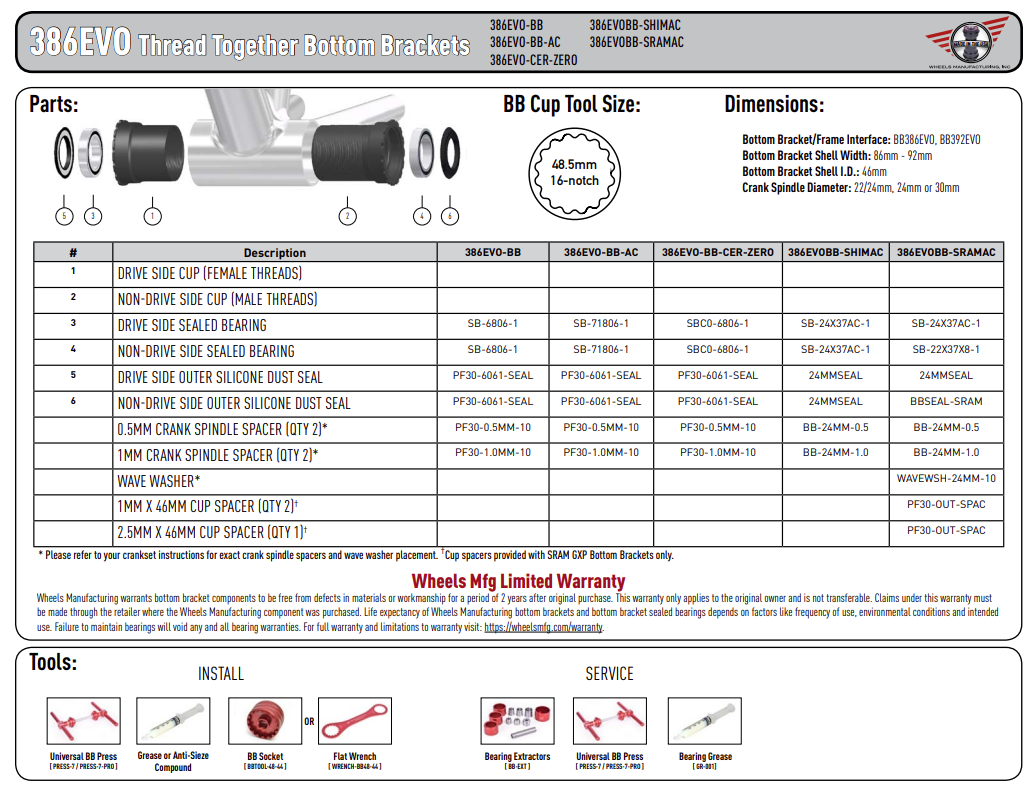

- Bearings: Enduro ABEC-3
- Color: Black
- Bottom Bracket/Frame Interface: BB386EVO, BB392EVO
- Bottom Bracket Shell Width (mm): 86mm - 92mm
- Bottom Bracket Shell I.D.: 46mm
- Crank Spindle Diameter: 24mm
- Over Bearing Width: 91.5mm in 86.5mm wide shell
- Weight: 133g
- Over Bearing Width Dimensions include supplied silicone dust shields.
Compatible with the following Bottom Bracket Standards (46mm BB shell ID, 86mm - 92mm wide BB shell) and 24.00mm diameter spindle cranks*:
- If used with FSA 24mm cranks, please see ouCompatibilityr Compatibility Issues page for known issues.

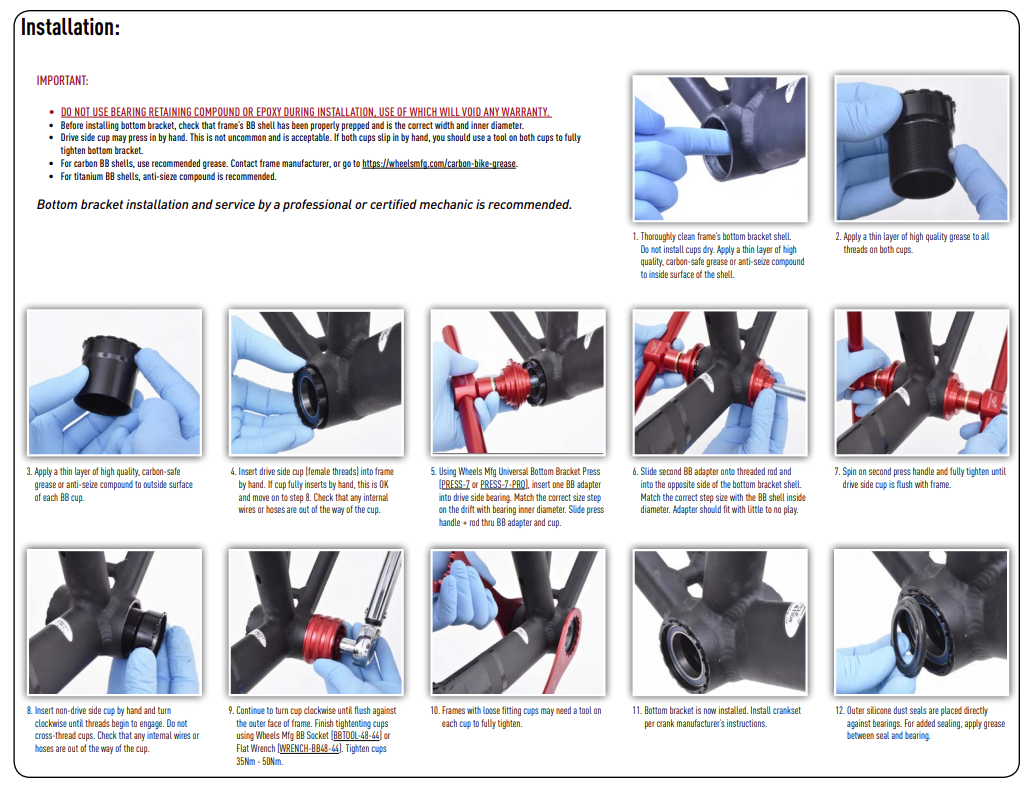

Installation & Removal
- (PRESS-7 or PRESS-7-PRO) Universal Bottom Bracket Press
- (WRENCH-BB48-44) Wheels Mfg Double End BB Wrench, 16-notch BB tool - 48.5 / 44mm
- (BBTOOL-48-44) Wheels Mfg Bottom Bracket Socket - 48.5 / 44mm
Note: if your BB shell is slightly oversize, two BB wrenches may be required to fully tighten cups in frame.
- (PRESS-9-PRO) Professional Bottom Bracket Tool Kit
- (BB-EXT) Bottom Bracket Sealed Bearing Extractor Set
