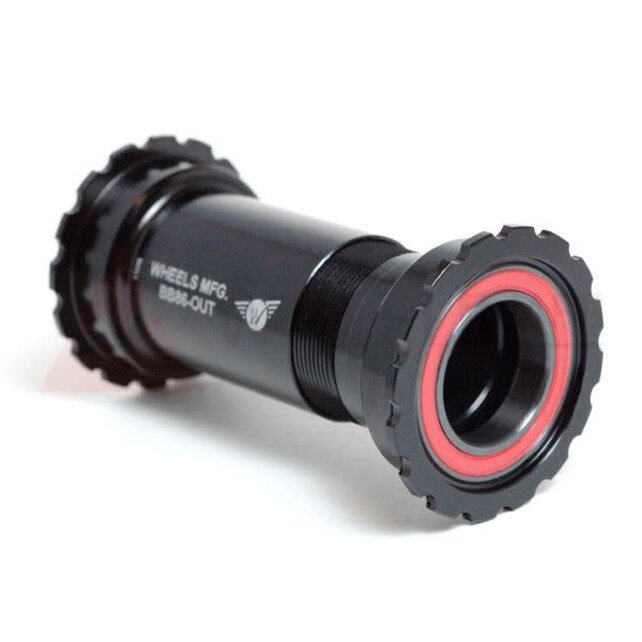

Wheels Mfg Bottom Bracket - BB86/92 Thread Together ZERO Ceramic BB for 24/22mm (SRAM) Cranks

SKU: BB86-OUT-SRAM14

$298.00

Excl. tax

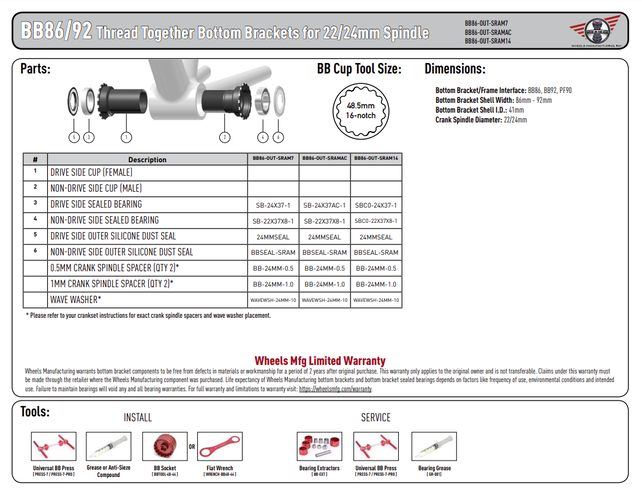

Threaded BB for BB86, BB92 and PF90 frames and 22/24mm diameter spindle (GXP) cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.

Bearings: Enduro ZERØ Ceramic Hybrid
Color: Black
Bottom Bracket/Frame Interface: BB86, BB92, PF90
Bottom Bracket Shell Width: 86mm - 92mm
Bottom Bracket Shell I.D.: 41mm
Over Bearing Width: 93mm in 86.5mm wide shell*
Crank Spindle Diameter: 22/24mm
Tool Pattern: 48.5mm x 16 notch
Weight: 105g

* Over Bearing Width Dimensions include supplied silicone dust shields.

Compatibility:

Compatible with the following Bottom Bracket Standards (41mm BB shell inner diameter, 86mm - 92mm width):

BB86
BB92
PF90 (Trek)

Compatible with 22/24mm spindle diameter GXP cranksets.

Notes:

Wheels Mfg BB86 thread-together BB for use with 24/22mm spindle cranks will not work with the following Quarq / SRAM powermeters: Elsa, Riken, S975, S2275, CinQo Saturn, Saturn2 and Eagle.

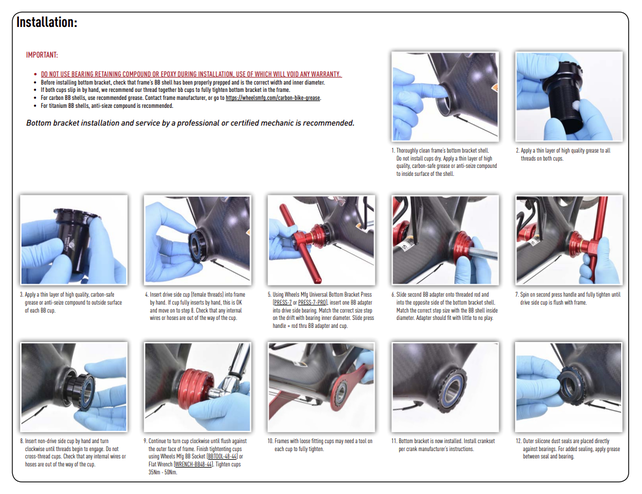

Tools:

(PRESS-9-PRO) Bottom Bracket Service Kit
(PRESS-7 or PRESS-7-PRO) Universal Bottom Bracket Press

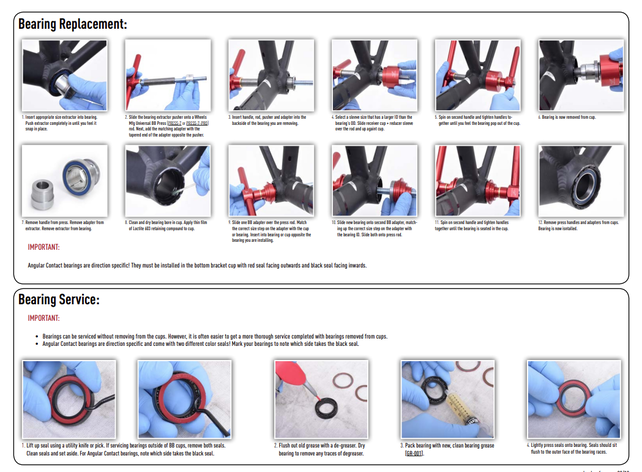

(BB-EXT) Bottom Bracket Sealed Bearing Extractor Set
(WRENCH-BB48-44) Wheels Mfg Double End BB Wrench, 16-notch BB tool - 48.5 / 44mm
(BBTOOL-48-44) Wheels Mfg Bottom Bracket Socket - 48.5 / 44mm

Note: if your BB shell is slightly oversize, two BB wrenches may be required to fully tighten cups in frame.
