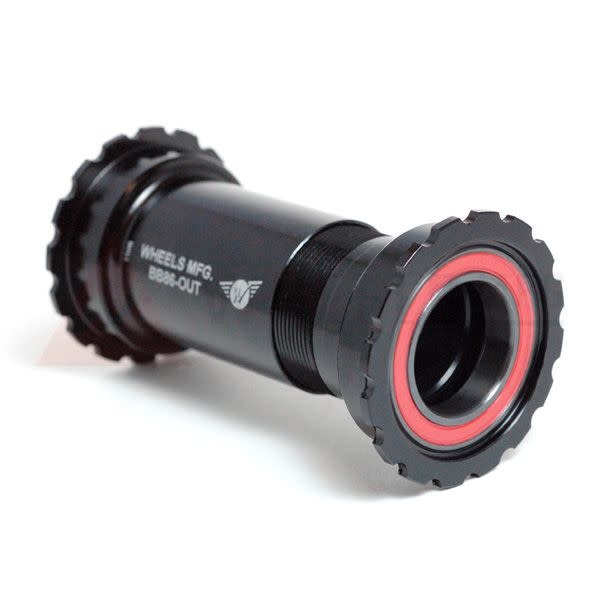

Wheels Mfg Bottom Bracket - BB86/92 Thread Together ZERO Ceramic BB for 24mm (Shimano) Cranks

SKU: BB86-OUT-13
$298.00
Excl. tax

Threaded BB for BB86, BB92 and PF90 frames and 24mm diameter spindle cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.

The rating of this product is 0 out of 5

(0)
On backorder

BB86/92 Thread Together ZERØ Ceramic BB for 24mm (Shimano) Cranks - Black

Threaded BB for BB86, BB92 and PF90 frames and 24mm diameter spindle cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.

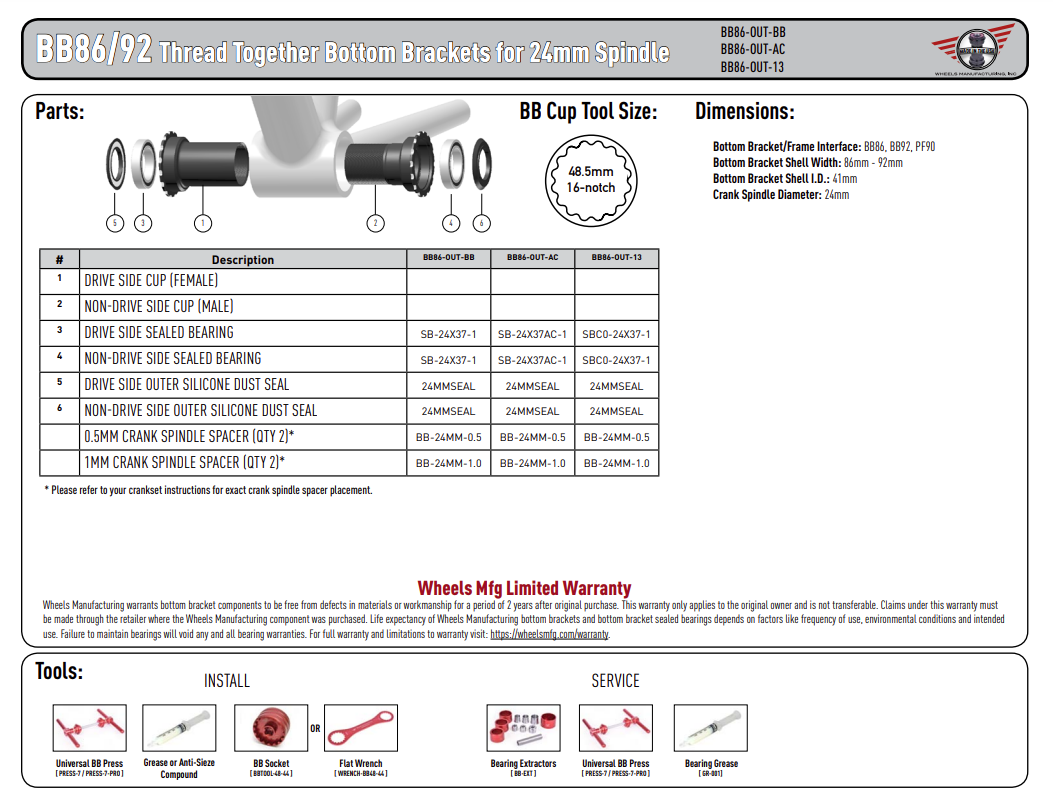

Specifications:

  • Bearings: Enduro ZERØ Ceramic Hybrid
  • Color: Black
  • Bottom Bracket/Frame Interface: BB86, BB92, PF90
  • Bottom Bracket Shell Width: 86mm - 92mm
  • Bottom Bracket Shell I.D.: 41mm
  • Over Bearing Width: 93mm in 86.5mm wide shell*
  • Crank Spindle Diameter: 24.00mm
  • Tool Pattern: 48.5mm x 16 notch
  • Weight: 102g

* Over Bearing Width Dimensions include supplied silicone dust shields.

Compatible with the following Bottom Bracket Standards (41mm BB shell inner diameter, 86mm - 92mm width):

  • BB86
  • BB92
  • PF90 (Trek)
  • (PRESS-9-PRO) Bottom Bracket Service Kit
  • (PRESS-7 or PRESS-7-PRO) Universal Bottom Bracket Press
  • (BB-EXT) Bottom Bracket Sealed Bearing Extractor Set
  • (WRENCH-BB48-44) Wheels Mfg Double End BB Wrench, 16-notch BB tool - 48.5 / 44mm
  • (BBTOOL-48-44) Wheels Mfg Bottom Bracket Socket - 48.5 / 44mm


Note: if your BB shell is slightly oversize, two BB wrenches may be required to fully tighten cups in frame.
