Wheels Mfg Bottom Bracket - BSA Threaded to 30mm ABEC 3

SKU: BB-BSA30-BB
$100.28
Excl. tax

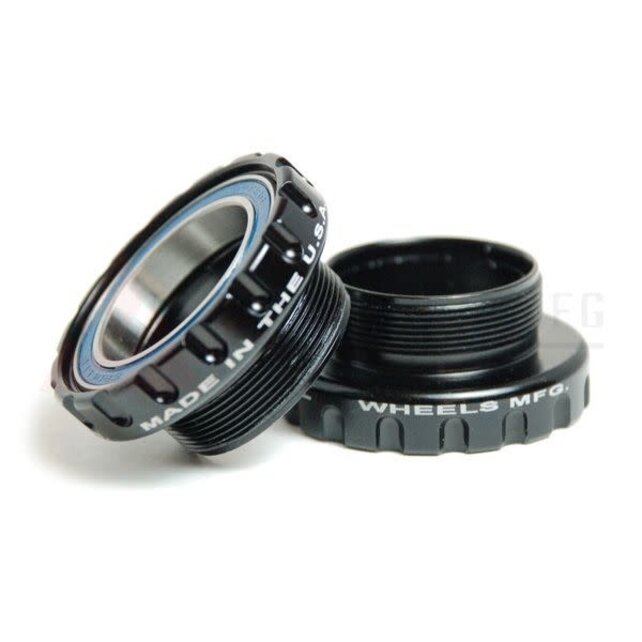

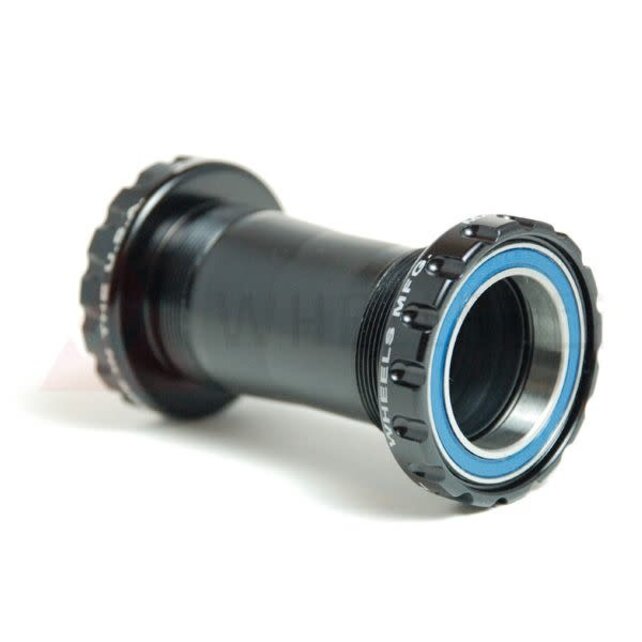

Our solution for running a 30mm spindle crankset in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806 ABEC-3 sealed bearings outboard of the BB shell. Fully serviceable.

The rating of this product is 0 out of 5

(0)
On backorder

Threaded to 30mm ABEC-3 BB - Black

Our solution for running a 30mm spindle crankset in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806 ABEC-3 sealed bearings outboard of the BB shell. Fully serviceable.

Notes:

  • For use with 30mm diameter cranks with a spindle length of at least 104mm when used in a 68mm wide BB shell. This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.
  • Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK SPINDLE LENGTH!
  • Bearings: Enduro ABEC-3
  • Color: Black
  • Bottom Bracket/Frame Interface: ISO/English or BSA Threaded (1.37 in x 24 TPI)
  • Bottom Bracket Shell Width (mm): 68mm - 73mm
  • Bottom Bracket Shell I.D.: 33.6-33.9 mm
  • Crank Spindle Diameter: 30mm
  • Crank Spindle Length: At least 104mm*
  • Over Bearing Width: 91.5mm in a 68mm wide shell*
  • Weight: 102g

*Over Bearing Width Dimensions include supplied silicone dust shields.

*Important: Will not work with crank spindles less than 104mm. PLEASE MEASURE YOUR CRANK SPINDLE LENGTH! This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.



Compatible with the following Bottom Bracket Standards:

  • ISO/English or BSA Threaded (1.37 in x 24 TPI)
  • 68mm - 73mm BB Shell Width

Notes:

  • Compatible with 30mm diameter spindle cranksets with at least 104mm spindle length when used in a 68mm wide BB shell. This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.
  • If used with FSA BB386 cranks, please see our Compatibility Issues page for known issues.



Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).



Tools:

Installation & Removal

  • (WRENCH-BB48-44) Wheels Mfg Double End BB Wrench, 16-notch BB tool - 48.5 / 44mm
  • (BBTOOL-48-44) Wheels Mfg Bottom Bracket Socket - 48.5 / 44mm

Bearing Service

  • (PRESS-9-PRO) Professional Bottom Bracket Tool Kit
  • (BB-EXT) Bottom Bracket Sealed Bearing Extractor Set
