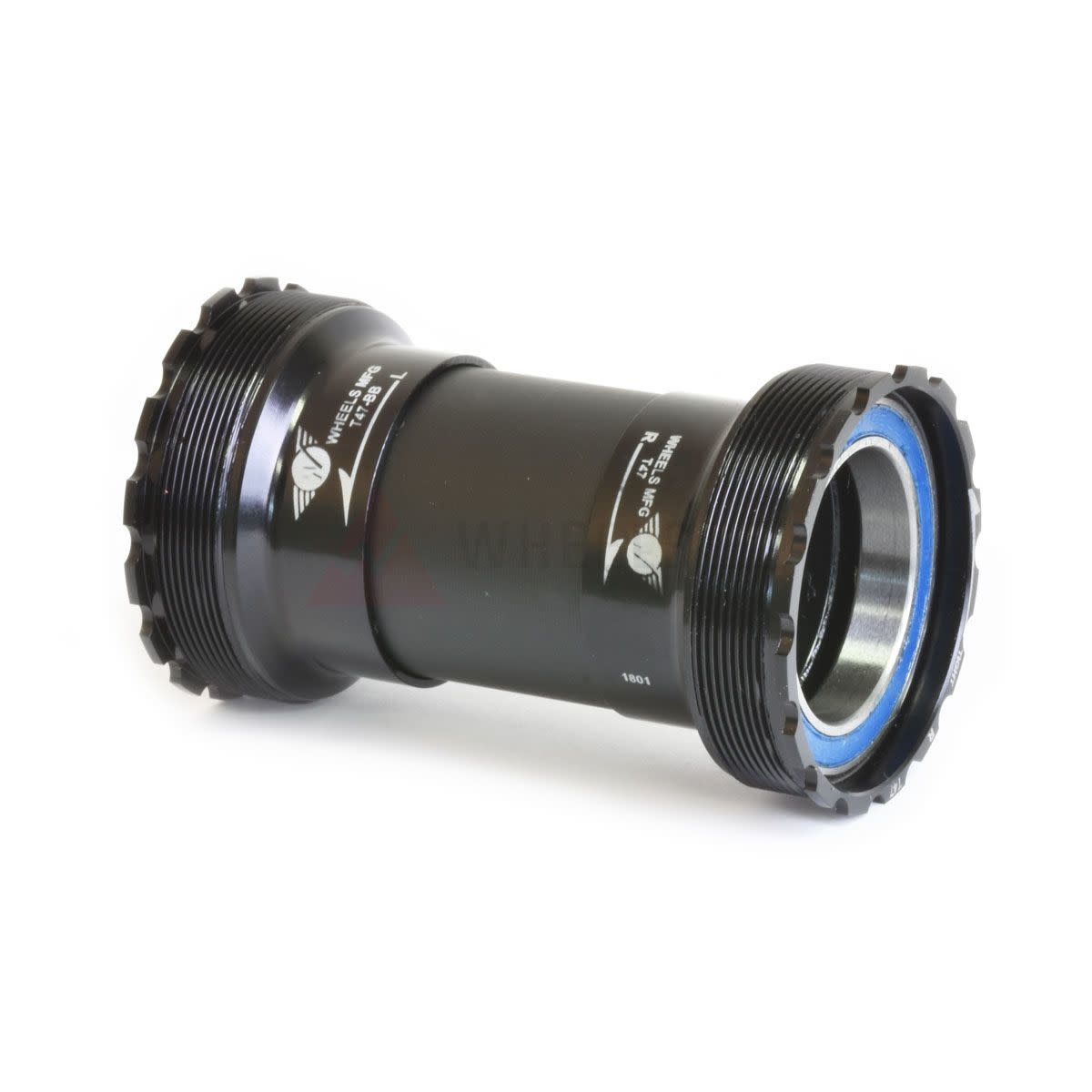

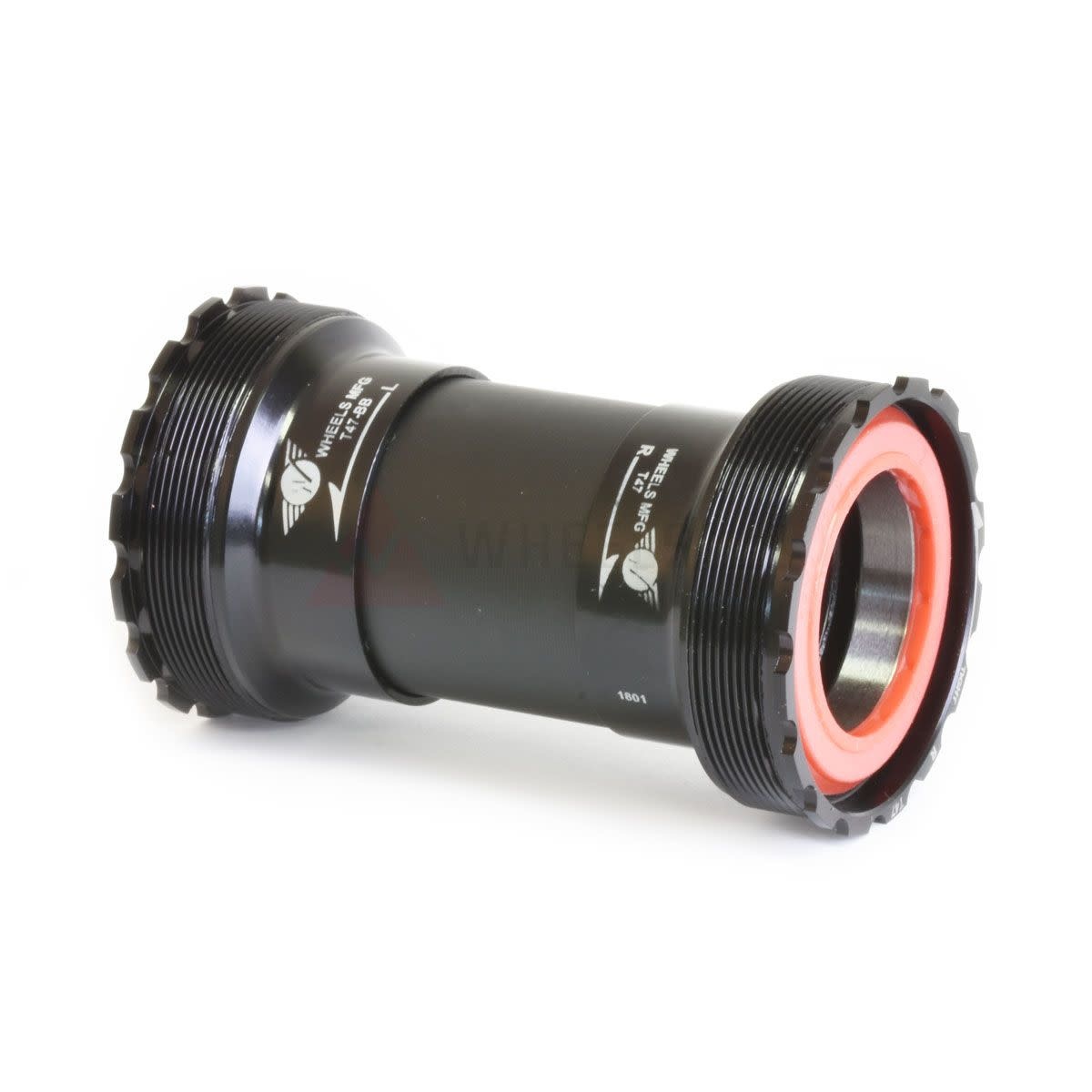

Wheels Mfg Bottom Bracket - T47 ABEC-3 BB for 29mm SRAM DUB Compatible Cranks

SKU: T47-BB-29MM
$123.99
Excl. tax

T47 threaded BB cups for T47 frames and 29mm diameter spindle SRAM DUB compatible cranks. Cups have internal bearings, and can be used in BB shells with widths from 86mm to 121mm. Machined aluminum cups thread together directly into a T47 BB shell.

The rating of this product is 0 out of 5

(0)
On backorder

T47 Inboard ABEC-3 BB for 29mm SRAM DUB Compatible Cranks - Black

T47 threaded BB cups for T47 frames and 29mm diameter spindle SRAM DUB compatible cranks. Cups have internal bearings, and can be used in BB shells with widths from 86mm to 121mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.

T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.

Bottom Bracket Includes:

  • BB Cups with bearings
  • 2 - Silicone dust seals
  • 2 - 0.5mm crank spindle spacers
  • 2 - 1.0mm crank spindle spacers
  • 1 - 2.5mm crank spindle spacer
  • Bearings: Enduro ABEC-3
  • Color: Black
  • Bottom Bracket/Frame Interface: T47
  • Bottom Bracket Shell Width (mm): 86mm - 121mm
  • Bottom Bracket Shell I.D.: 47x1.0mm Threaded
  • Crank Spindle Diameter: 29mm
  • Over Bearing Width: 90mm in 86.5mm wide shell*
  • Tool Pattern: 48.5mm x 16-notch
  • Weight: 97g

* Over Bearing Width Dimensions include supplied silicone dust shields.



Compatibility:

Compatible with the following Bottom Bracket Standards (47x1.0mm Threaded BB shell) and 29mm diameter spindle SRAM DUB compatible cranks:

  • T47 shell with width of 86.5mm and SRAM DUB Road Crank
  • T47 shell with width of 89.5mm, 92mm and SRAM DUB MTB Crank
  • T47 shell with width of 121mm and SRAM DUB Fatbike Crank

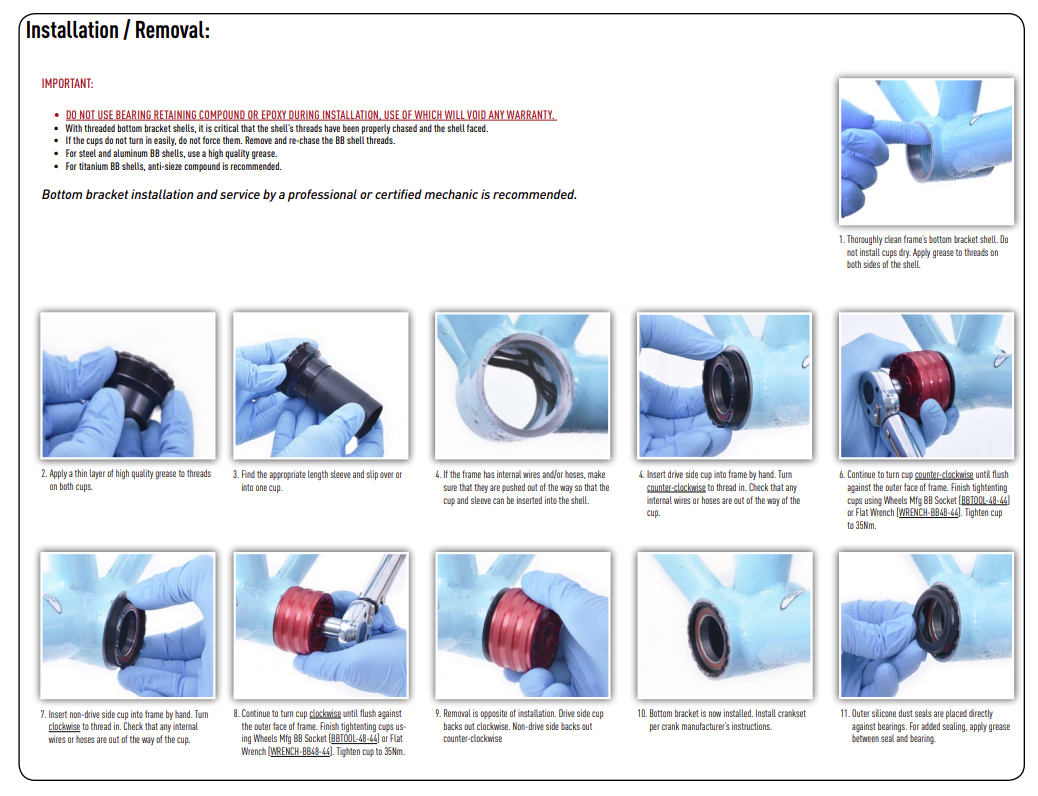

Installation & Removal

  • (BBTOOL-48-44) Wheels Mfg BB Socket
  • (WRENCH-BB48-44) Wheels Mfg Double End BB Wrench, 16-notch BB tool - 48.5 / 44mm

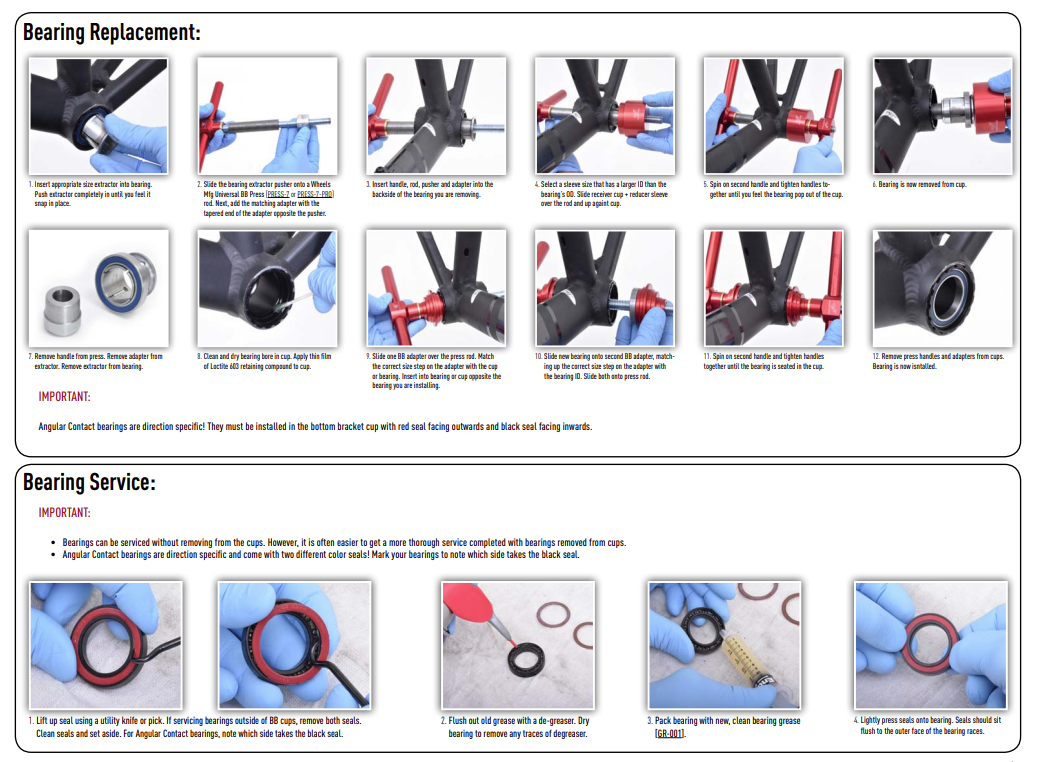

Bearing Service

  • (PRESS-9-PROBP) Professional Bottom Bracket Tool Kit
  • (BB-EXT) Bottom Bracket Sealed Bearing Extractor Set
  • (29SRAM-OB) 29mm SRAM DUB Compatible Open Bore Adapter
  • (BE-29MM-SET) 29mm bearing extractor set (Use with BB-EXT)
