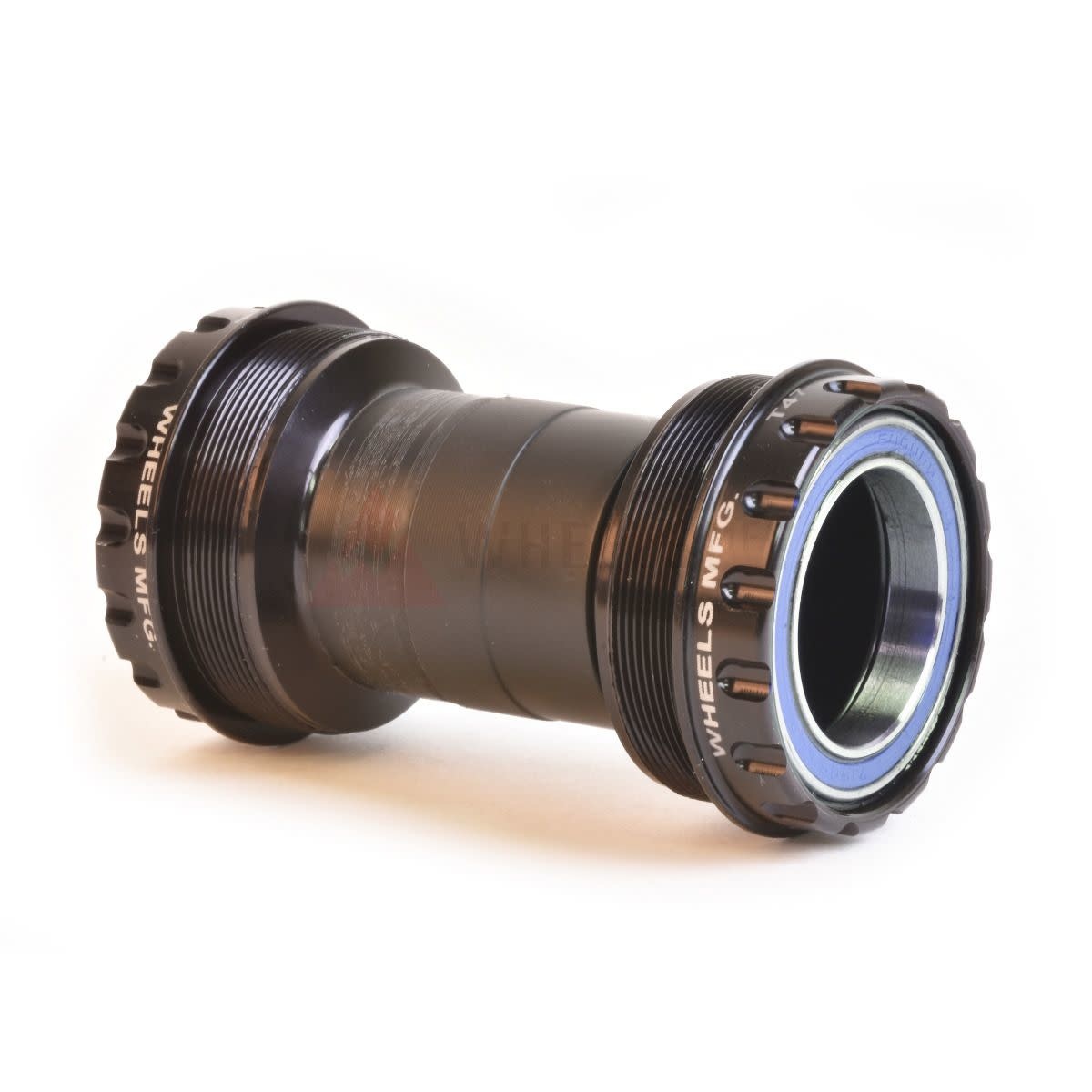

Wheels Mfg Bottom Bracket - T47 Outboard ABEC-3 BB for 30mm Cranks

SKU: T47-OUT-30MM-BB
$123.99
Excl. tax

T47 threaded BB cups for T47 frames and 30mm spindle diameter cranks. Cups have outboard bearings, and can be used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell.

The rating of this product is 0 out of 5

(0)
In stock

T47 Outboard ABEC-3 BB for 30mm Cranks - Black

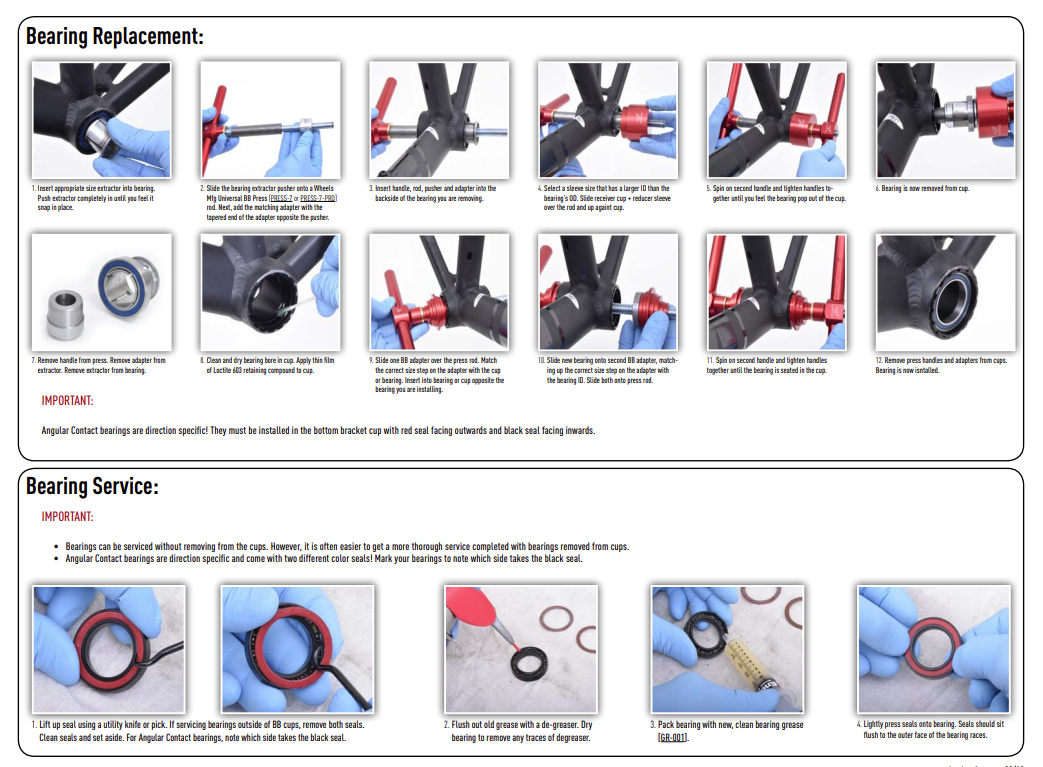

T47 threaded BB cups for T47 frames and 30mm spindle diameter cranks. Cups have outboard bearings, and can be used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.

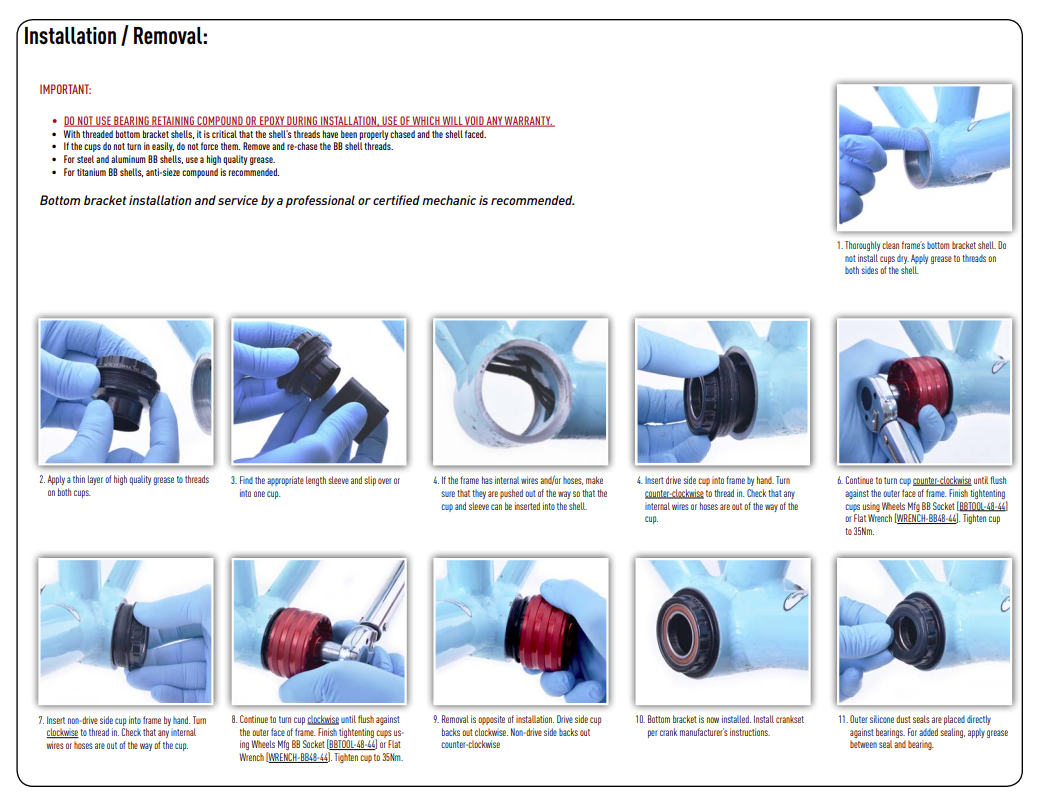

T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.

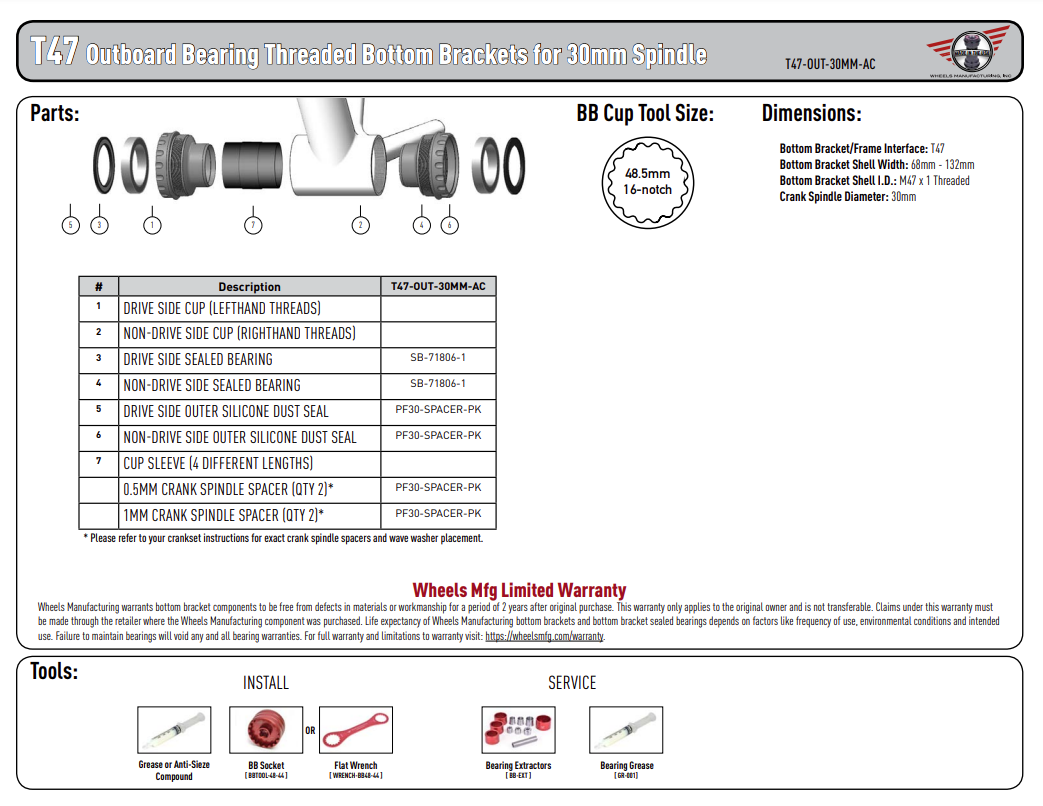

Bottom Bracket Includes:

  • BB Cups with bearings
  • 2 - Silicone dust seals
  • 2 - 0.5mm crank spindle spacers
  • 2 - 1.0mm crank spindle spacers
  • Bearings: Enduro ABEC-3
  • Color: Black
  • Bottom Bracket/Frame Interface: T47
  • Bottom Bracket Shell Width (mm): 68mm - 100mm
  • Bottom Bracket Shell I.D.: 47x1.0mm Threaded
  • Crank Spindle Diameter: 30mm
  • Over Bearing Width: 90.8mm in 68mm wide shell*
  • Tool Pattern: 48.5mm x 16-notch
  • Weight: 155g

* Over Bearing Width Dimensions include supplied silicone dust shields.



Compatible with the following Bottom Bracket Standards (47x1.0mm Threaded BB shell):

  • T47

Compatible with 30mm spindle diameter cranksets.



  • (BBTOOL-48-44) Wheels Mfg BB Socket
  • (WRENCH-BB48-44) Wheels Mfg Double End BB Wrench, 16-notch BB tool - 48.5 / 44mm
